Horizon - SPF 20 A
Technical Specifications
| Year | 2002 |
| Machine Condition | In Stock |
Machine Description

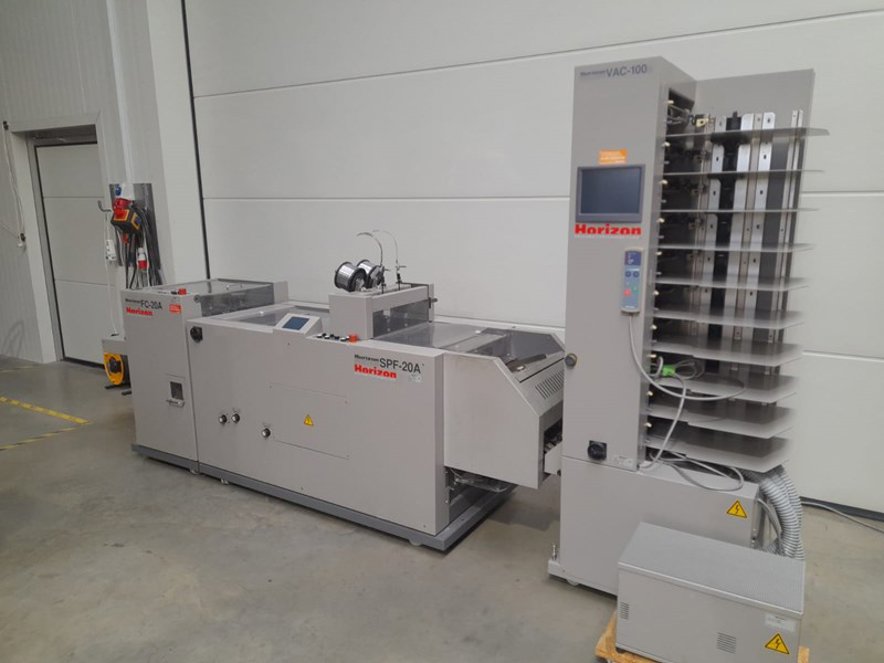

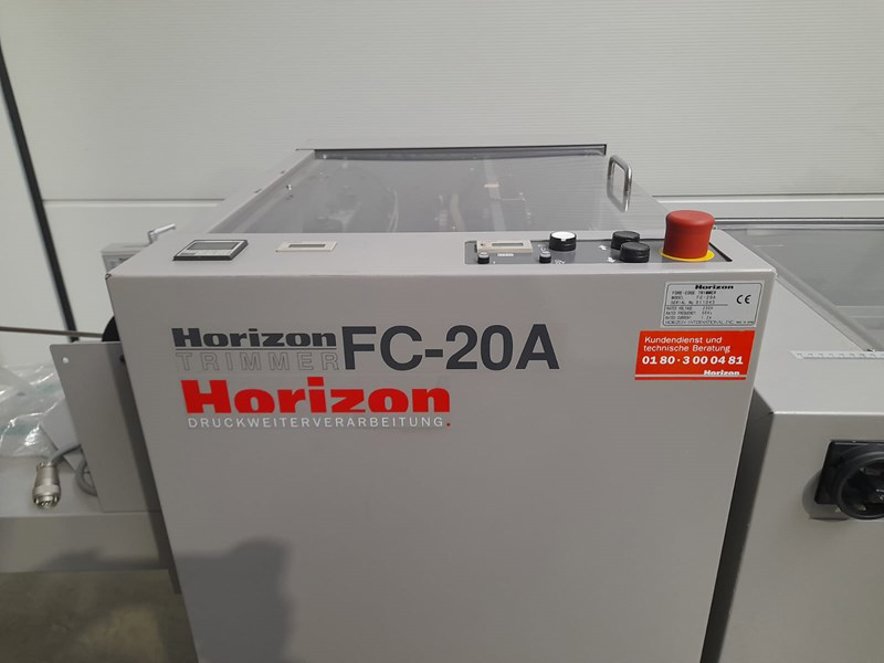

Horizon VAC-100a SPF-20A FC-20A Booklet Making System, Used.
.
This Horizon booklet making system is a powerful solution for professional booklet production, combining collating, stitching, folding, and front trimming in an efficient process. It offers high productivity, versatile applications, and easy operation for efficient booklet production..
.
.
Key Features:.

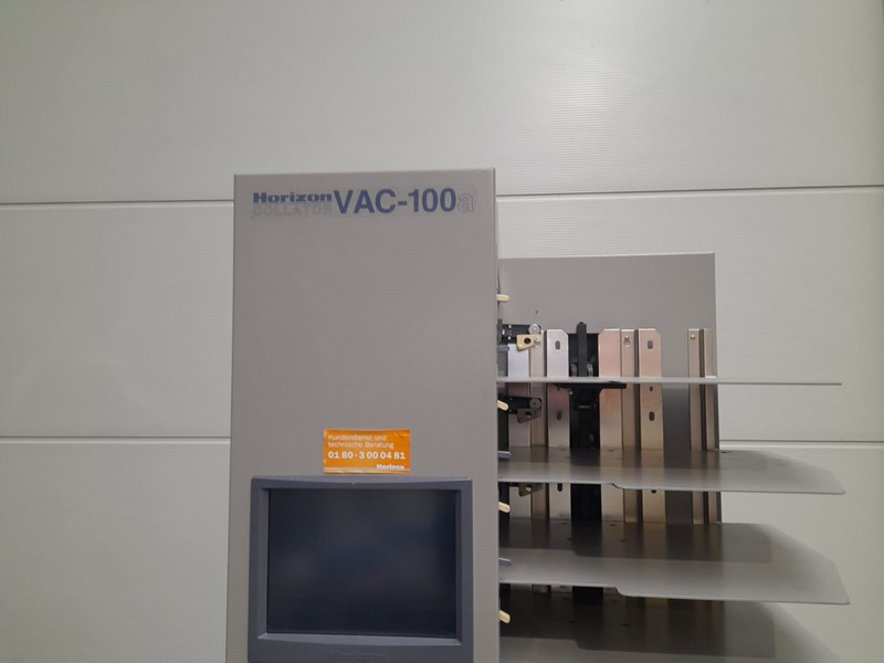

- Collator: VAC-100a with 10 stations.
- Versatile stitching options: Saddle, corner, and side stitching possible.
- Touch & Work: Intuitive operation thanks to user-friendly technology.
- 9 programmable memory locations for repeat jobs.
- Precise error control: Prevention of miss-feed, double-feed, and jam problems.
- Expandable configuration: Possibility to add more VAC-100 towers.
.
.
Technical Specifications:.
- Paper format: max. 350 x 500 mm; min. 148 x 120 mm.
- Booklet format: max. 250 x 350 mm; min. 85 x 120 mm.
- Paper weight: 40-300 g/m².
- Processing thickness: 2-22 sheets (80 g/m²).
- Trimming thickness: 4-50 sheets (80 g/m²).
- Front trim: max. 25 mm.
- Production speed: max. 3,600 booklets/h.
- Collating performance: up to 9,900 sets/h.
- Loading capacity per station: 55 mm.
- Power supply: 230V; 50/60Hz.
- Total power consumption: approx. 2.3 kW...

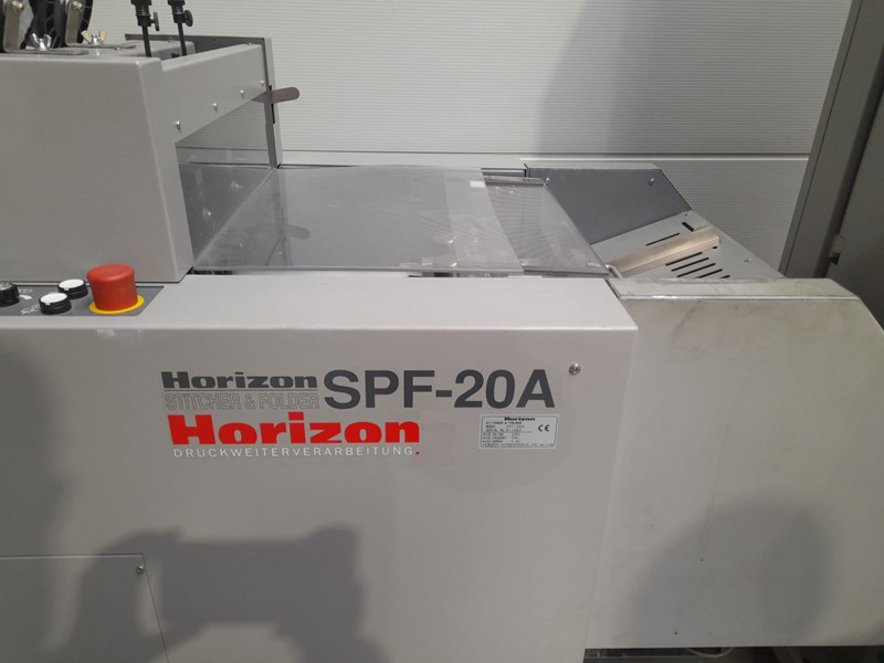

The Horizon SPF-20A is a professional booklet making system designed for high-efficiency production of booklets, combining collating, stitching, folding, and front trimming in a single workflow. Part of the Horizon VAC-100a SPF-20A FC-20A Booklet Making System, this used machine offers versatile stitching options (saddle, corner, and side stitching), intuitive operation with touch-based controls, and programmable memory for repeat jobs. With precise error control to prevent misfeeds and jams, it ensures reliable performance for medium to high-volume booklet production. Ideal for print shops, publishing houses, and in-plant operations, it delivers consistent quality and productivity for applications such as manuals, catalogs, brochures, and reports.
Key Technical Aspects:
Dimensions and Specifications : The Horizon SPF-20A operates on a 230V power supply (50/60Hz) with a total power consumption of approximately 2.3 kW. It achieves a production speed of up to 3,600 booklets per hour and a collating performance of up to 9,900 sets per hour. The system includes 9 programmable memory locations for repeat jobs and supports expandable configurations with additional VAC-100 towers.
Paper Handling : The machine accommodates paper formats ranging from 148 x 120 mm (minimum) to 350 x 500 mm (maximum) and booklet formats from 85 x 120 mm (minimum) to 250 x 350 mm (maximum). It handles paper weights between 40-300 g/m², with a processing thickness of 2-22 sheets (80 g/m²) and trimming thickness of 4-50 sheets (80 g/m²). Each station has a loading capacity of 55 mm, and the front trim can handle up to 25 mm.
