23191

Gathering and collating

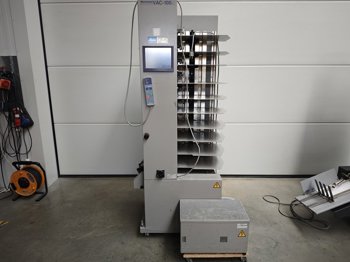

Air suction collator HORIZON VAC-100a, 10 Stations, used Key Features - Efficient and Reliable: The Horizon VAC-100a is designed for demanding environments. It ensures your collating jobs are completed quickly and efficiently - Touch & Work: Thanks to 'Touch & Work' technology, the VAC-100a is easy and intuitive to operate - Memory: The machine has 9 programmable memory slots for repeat jobs, saving you time and effort - Accuracy and Precision: Say goodbye to miss-feed, double-feed, and jam problems. The VAC-100a offers error prevention controls to ensure each set is perfectly collated Specifications - Format: max. 500x350mm; min. 148x120mm - Paper weight: 40-250g/sqm - Performance: up to 9,500 sets/h - Loading capacity: 55mm/station - Power: 230V; 50Hz - 1.86kW - Dimensions: 842x652x1,961mm - Weight: 310kg

Unterfranken

Germany

23198

Gathering and collating

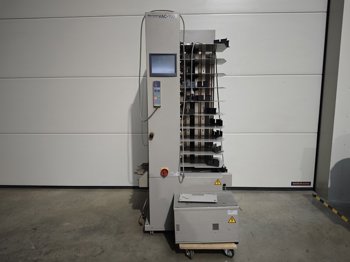

Horizon collator VAC-100c offer consists of: - air suction collator VAC-100c Horizon VAC-100c air-suction collator - technology: touch & work - model: air-suction collator - bins: 10 - error avoidance: misfeed-,doublefeed- and jamming control - saveable jobs: 9 memories for repeat orders - extensibility: up to 6 collators (60 bins) programs: - doublecycle (nonstop-work) - inject (simply and doubly) - booklet making program - block program - selective collating - sheet size: max. 500x350mm; min. 148x120mm - paper weight: 40-250g/sqm - production speed: max. 9.500 cycles/h - loading height: 55mm/ bin - power: 230V; 50/60Hz - 1,86kW - dimension: 842x652x1.961mm - weight: each 310kg - extra function Horizon VAC 100c: collating to both sides collator usable separately

Unterfranken

Germany

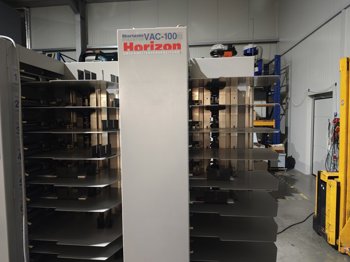

23200

Booklet machines

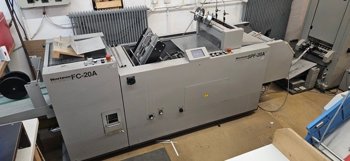

Horizon booklet maker VAC-100 a VAC-100 m SPF-20 A FC-20 A offer consists of: - air suction collator VAC-100a - air suction collator VAC-100m - stitching and folding SPF-20A - frontcutter FC-20A Horizon VAC-100a / Horizon VAC-100m air-suction collators - technology: touch & work - model: air-suction collator - bins: 10 each collator - error avoidance: misfeed-,doublefeed- and jamming control - saveable jobs: 9 memories for repeat orders - extensibility: up to 6 collators (60 bins) programs: - doublecycle (nonstop-work) - inject (simply and doubly) - booklet making program - block program - selective collating - sheet size: max. 500x350mm; min. 148x120mm - paper weight: 40-250g/qm - loading height: 55mm/ bin - production speed: max. 9.500 cycles/h - power: 230V/50Hz - 1,86kW - dimensions: 842x652x1.961mm - weight: 310kg Horizon SPF-20A stitcher and folder: - format adjustment: fully automatic - DIN-size and standard fold types: preassigned - saveable jobs: 12 memories for special sheet sizes + all DIN sheet sizes - stitching heads: 2 - expandable up to 4 stitching heads - stapling options: top-, side-, cornerstitiching - ring eylete stitiching: with ring eyelet stitching heads possible - inlet format: max. 500x350mm; min. 180x120mm - processing strength: min. 2 pages; max. 22 pages (80g/sqm) - clip distance: min. 73mm - stitching wire: 26 - 28 - production speed: max. 3.600 cycles/h - power: 230V/50Hz - 0,45kW - dimensions: 2.710x810x1.070mm - weight: 490kg Horizon FC-20A fore-edge trimmer: - counter - faulty set ejection - booklet size: max. 250x20mm; min. 85mm - size front cut: max. 20mm - trimming thickness: min. 4 pages / max. 88 pages (80g/sqm) - production speed: max. 3.400 cycles/h - power: 230V/50Hz - 0,2kW - dimensions: 610x810x1.070mm - weight: 240kg

Unterfranken

Germany

23192

Gathering and collating

Horizon VAC-100m Air-Suction Collator Tower The VAC-100m is the ideal solution for print shops looking to expand their production capacity without investing in completely new systems. Its easy integration with the VAC-100a tower and high reliability make it a valuable addition to your production line. Key Features: Cost-efficiency: The VAC-100m is a cost-effective expansion solution as it operates without its own display and control unit. This reduces acquisition costs and allows you to expand existing systems efficiently. Expandable Capacity: With the ability to connect up to 5 VAC-100m towers to one VAC-100a tower, you can flexibly expand your collating capacity to up to 60 stations. This enables efficient handling of large jobs and a significant increase in your production capacity. Reliability: With error prevention features such as misfeed, double-feed, and jam control, the VAC-100m ensures that your production runs smoothly and without interruptions. Specifications: - Technology: Touch & Work (via VAC-100a) - Number of stations: 10 per tower - Expandability: Up to 6 towers (60 stations) - Error prevention: Misfeed, double-feed, and jam control - Job memory: 9 storage slots for repeat orders - Programs: Double cycle (non-stop operation), sheet insertion (single and double), booklet making program, block program, selective collating - Sheet size: Max. 500x350 mm; Min. 148x120 mm - Paper weight: 40-250 g/m² - Loading capacity: 55 mm per station - Performance: Up to 9,500 sets/h - Power: 230V; 50/60Hz - 1.86 kW - Dimensions: 842x652x1,961 mm - Weight: 310 kg

Unterfranken

Germany

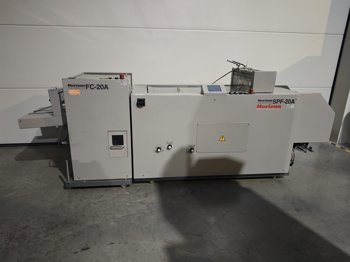

23210

Booklet machines

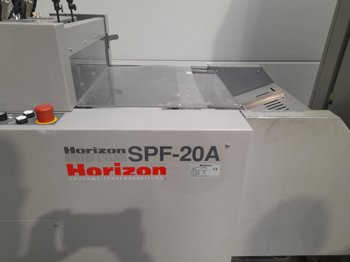

Horizon booklet maker SPF-20 A FC-20 A offer consists of: - stitching and folding SPF-20A - frontcutter FC-20A Horizon SPF-20A stitcher and folder: - format adjustment: fully automatic - DIN-size and standard fold types: preassigned - saveable jobs: 12 memories for special sheet sizes + all DIN sheet sizes - stitching heads: 2 - expandable up to 4 stitching heads - stapling options: top-, side-, cornerstitiching - ring eylete stitiching: with ring eyelet stitching heads possible - inlet format: max. 500x350mm; min. 180x120mm - processing strength: min. 2 pages; max. 22 pages (80g/sqm) - clip distance: min. 73mm - stitching wire: 26 - 28 - production speed: max. 3.600 cycles/h - power: 230V/50Hz - 0,45kW - dimensions: 2.710x810x1.070mm - weight: 490kg Horizon FC-20A fore-edge trimmer: - counter - faulty set ejection - booklet size: max. 250x20mm; min. 85mm - size front cut: max. 20mm - trimming thickness: min. 4 pages / max. 88 pages (80g/sqm) - production speed: max. 3.400 cycles/h - power: 230V/50Hz - 0,2kW - dimensions: 610x810x1.070mm - weight: 240kg

Unterfranken

Germany

23214

Slitter/cutter/creaser

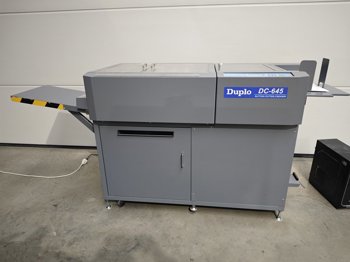

- high performance-finisher DocuCutter DC-645 Duplo DocuCutter DC-645 high performance-finisher for digital color printing: - feeder: air-suction feeder with lining up - operation: by LCD-display - control: barcode control - PC included - saveable jobs: 80 memories for repeat orders - error avoidance: ultrasonic-doublefeed control eject gate testprogram print mark reader - integrated knives: 6 lengthwise knives + 1 cross knife - size: max. 650x370mm min. 210x210mm - paper weight: 110-350g/qm - loading height: 100mm - creasing each sheet: max. 10 - production speed: max. 1500 sheets/h (A4) max. 720 sheets/h (A3) - power: 230V / 50Hz - 0,3kW - dimensions: 2.240x750x1.115mm - weight: 360kg

Unterfranken

Germany

70265

Buckle Folding Machine

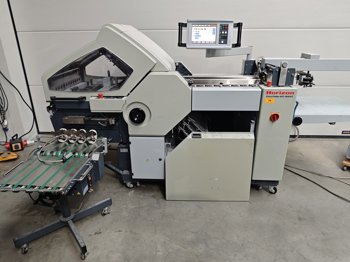

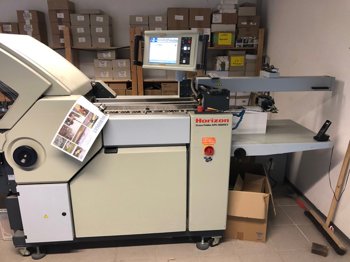

Horizon AFC-566F: Fully Automatic Combination Folding Machine, used The Horizon AFC-566 F combines high efficiency with easy operation, allowing even inexperienced users to quickly achieve creative folding solutions. With 17 pre-programmed fold types, fully automatic settings, and intuitive Touch&Work technology, you can maximize productivity and handle any challenge. Folding Units - 1st Folding Unit: 6 folding pockets - 2nd Folding Unit: Folding knife plus 2 folding pockets Key Features - Versatility: Handles a wide range of fold types, from simple parallel folds to complex cross and specialty folds - Fully Automatic Settings: From feeder to roller gap adjustment - Touch&Work Technology: For easy and intuitive operation - 17 Standard Fold Types: For diverse folding options - Job Memory: Stores up to 200 jobs - Double Sheet Detection and Sheet Run Monitoring: Ensures high precision - Creasing and Perforating Device: For additional finishing options - Quick Setup: Ready in seconds for maximum efficiency Specifications: - Paper formats: Maximum size: 558 x 850 mm; Minimum size: 128 x 148 mm - Paper weights: 40 – 250 g/sqm - Speed: Maximum: 240 m/min; 30,000 cycles/h in cross fold - Feeder pile height: 740 m - Machine dimensions: Main body: 3,100 mm x 1,090 mm x 1,680 mm (LxWxH); Delivery: 1,320 mm x 600 mm (LxW), height variable - Weight: 1,270 kg - Power supply: 400 V, 5.6 A, 3.2 kW

Unterfranken

Germany

70266

Saddle Stitching Lines

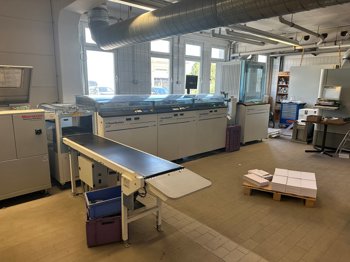

Used Horizon StitchLiner 6000 Saddle-Stitching System The Horizon StitchLiner 6000 is a powerful all-in-one solution for booklet production. It combines rolling, scoring, folding, stitching, and three-side trimming in a single, efficient process. With its user-friendly operation, high productivity, and versatility, this system offers numerous advantages for print shops, binderies, and on-demand printing. This StitchLiner 6000 consists of the following components: - Hunkeler LS6, SE6, CS6 - ACF-30 Accumulating and Folding Unit - SPF-30 Saddle-Stitcher - HTS-30 Three-Knife Trimmer - UW6 unwinder - WB6 web buffer - TS6 transfer module - TB6 storage belt Key Features: - Inline production from collating to finished product - Variable data processing: The system can handle personalized prints and variable page numbers, making it ideal for digital printing - Fully automatic format adjustment for quick job changes - Touchscreen for user-friendly operation, even for less experienced operators Technical Specifications: - Sheet sizes: Max. 350 x 500 mm, Min. 120 x 210 mm - Paper weight: 64-300 g/m² - Processing thickness: Up to 5 mm (approx. 50 sheets of 80 g/m²) - Production speed: Up to 6,000 booklets/hour - Stitch spacing: 60-150 mm - Trimming (untrimmed): Max. 350 x 250 mm, Min. 120 x 85 mm - Trimming (trimmed): Max. 340 x 240 mm, Min. 85 x 75 mm - Power supply: 200-240V, 50/60Hz - Compressed air: 5 bar, 230 l/min

Unterfranken

Germany

23211

Gathering and collating

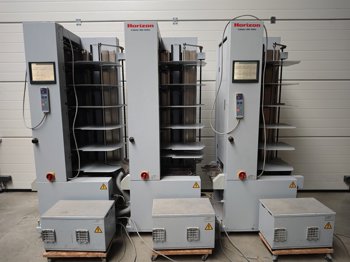

HORIZON VAC-60Ha / Hm / Hc Collators The Horizon VAC-60 series (Ha, Hm, Hc) are modular air-suction collators designed for professional print finishing, offering precise, fast, and reliable sheet handling. Key Features Modular system: Each collator includes 6 feeding stations; expandable up to 6 towers (36 stations total). Advanced air-suction feeding: Ensures consistent and reliable sheet transport for a wide paper range. Flexible format range: Handles sheets from approx. 120 × 148 mm to 500 × 350 mm, with paper weights from 40–300 g/m². High-speed productivity: Processes up to 9,500–10,000 sets per hour, depending on setup. User-friendly operation: Models Ha and Hc feature “Touch & Work” technology for quick setup and control. Efficient integration: Model Hm serves as an expansion module without its own controls. Error prevention: Equipped with sensors for misfeed, double-feed, and jam detection. Job memory: Up to 9 programmable settings for recurring jobs. Technical Specifications Dimensions: approx. 842 × 652 × 1,961 mm Weight: about 310–315 kg Power supply: 230V, 50/60Hz, 1.86 kW Loading height: 130 mm per station

Unterfranken

Germany

23208

Gathering and collating

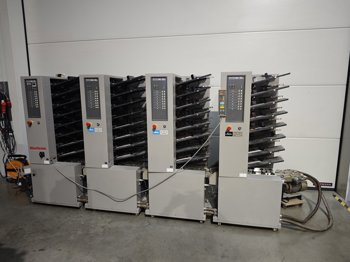

Horizon MC-80a | 3x MC-80m | Spare Parts | Partial Function

Unterfranken

Germany

23207

Booklet machines

Horizon VAC-100a VAC-100m SPF-20A FC-20A Booklet Making System, Used This Horizon booklet making system is a powerful solution for professional booklet production, combining collating, stitching, folding, and front trimming in an efficient process. It offers high productivity, versatile applications, and easy operation for efficient booklet production. Key Features: - Two collating towers: VAC-100a and VAC-100m with 10 stations each - Versatile stitching options: Saddle, corner, and side stitching possible - Touch & Work: Intuitive operation thanks to user-friendly technology - 9 programmable memory locations for repeat jobs - Precise error control: Prevention of miss-feed, double-feed, and jam problems - Expandable configuration: Possibility to add more VAC-100 towers Technical Specifications: - Paper format: max. 350 x 500 mm; min. 148 x 120 mm - Booklet format: max. 250 x 350 mm; min. 85 x 120 mm - Paper weight: 40-300 g/m² - Processing thickness: 2-22 sheets (80 g/m²) - Trimming thickness: 4-50 sheets (80 g/m²) - Front trim: max. 25 mm - Production speed: max. 3,600 booklets/h - Collating performance: up to 9,900 sets/h - Loading capacity per station: 55 mm - Power supply: 230V; 50/60Hz - Total power consumption: approx. 2.3 kW

Unterfranken

Germany

23216

Slitter/cutter/creaser

About Bickel - HK 3/50 The Bickel HK 3/50 is a high-performance, narrow-web flexographic printing machine designed for label and packaging applications. This machine is ideal for printing on a variety of substrates, including paper, film, and foil. Key features of the HK 3/50 include its compact design, high-speed printing capabilities, and advanced ink system. The benefits of this machine include its ability to produce high-quality prints at fast speeds, making it an ideal solution for label and packaging converters. Typical applications of the HK 3/50 include printing labels, stickers, and packaging materials for the food, beverage, and pharmaceutical industries. Key Technical Aspects: Dimensions and Specifications : The Bickel HK 3/50 has a compact footprint of 3.5 meters in length, 1.5 meters in width, and 2.2 meters in height. It weighs approximately 2,500 kilograms and has a maximum web width of 330 millimeters. The machine's maximum printing speed is 200 meters per minute. Paper Handling : The HK 3/50 features a 3-spindle unwind system with a maximum unwind diameter of 1,000 millimeters. The machine is equipped with a servo-driven rewind system with a maximum rewind diameter of 800 millimeters. The paper handling system also includes a web guide system and a Corona treatment unit. Printing Unit : The HK 3/50 features 3-6 printing units, each with a maximum printing width of 330 millimeters. The machine uses a flexographic printing process with a resolution of 508 dpi. The printing speed can reach up to 200 meters per minute. Ink System : The HK 3/50 uses a water-based ink system with a chambered doctor blade system. The ink system features a 3-liter ink tank and an automatic ink circulation system. The machine is also equipped with an anilox roll cleaning system. Plate Cylinder : The plate cylinder of the HK 3/50 has a diameter of 250 millimeters and a repeat length of 330-660 millimeters. The plate cylinder is designed for easy plate changing and features a pneumatic clamping system.

Unterfranken

Germany

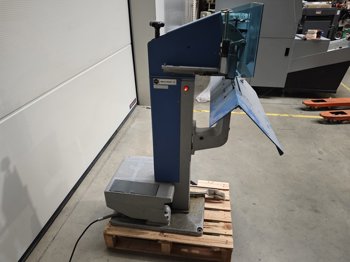

23215

Stitching and folding

Nagel Multinak-S Stitching unit Block and brochures stitching - weight: 98kg

Unterfranken

Germany

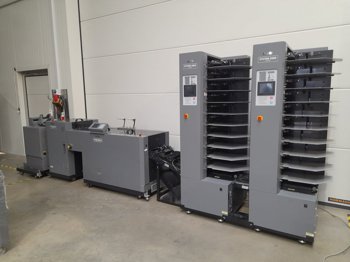

23220

Booklet machines

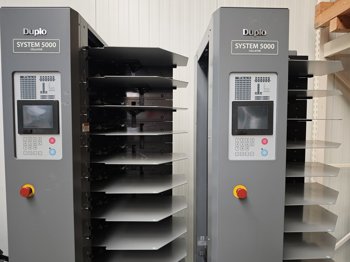

Duplo booklet maker System 5000 offer consists of: - 2x collators DC-10/60 - lifting unit LUL-HM - bookletmaker DBM-500 - trimmer DBM-500T - preset kicker DBM-K - conveyor DBM-400LS Duplo System 5000 booklet maker 2xDC-10/60: collator - number of bins: 20 - paper size: width: min. 120mm, max. 350mm length: min. 148mm, max. 500mm - paper weight: 0-300g/sqm - loading volume: 60mm - feeding system: belt suction feed system - conveyance system: roller belt conveyance system - power supply: 120 to 240 V 50/60 Hz - power consumption: 9.5A (120 V 60 Hz), 4.5A(220-240V, 50Hz) DBM-500: stitcher folder - paper size: min. 120x170mm; max. 350x500mm - process speed: >5000 pcs/h, A5 >4600 pcs/h, A4 >4000 pcs/h, A3 - No. of stitches 0 to 2 - stitch thickness within 5mm - wire diameter #25 to #27 - folding capacity: below 25 sheets - dimensions: 2,230 (W) x 865 (D) x 1300 (H) - ratings: 120 to 240 V 50/60Hz 6.5-3.8A - weight: 412kg DBM-500T: Trimmer - booklet size: min. 85x120mm; max. 250x356mm - trimmed booklet size: min. 75x120mm - speed: ut to 5000 sets per hour - power consumption: 120V 690Hz 10A - dimensions: 700mm x 635mm x 1094mm - weight: 532 lbs (241kg)

Unterfranken

Germany

23223

Buckle Folding Machine

Horizon AFC-566F: Fully Automatic Combination Folding Machine, used Rollers condition: Parallel 0% Cross 20% With New Parallel Rollers. Price: 16.900 EUR The Horizon AFC-566 F combines high efficiency with easy operation, allowing even inexperienced users to quickly achieve creative folding solutions. With 17 pre-programmed fold types, fully automatic settings, and intuitive Touch&Work technology, you can maximize productivity and handle any challenge. Folding Units - 1st Folding Unit: 6 folding pockets - 2nd Folding Unit: Folding knife plus 2 folding pockets Key Features - Versatility: Handles a wide range of fold types, from simple parallel folds to complex cross and specialty folds - Fully Automatic Settings: From feeder to roller gap adjustment - Touch&Work Technology: For easy and intuitive operation - 17 Standard Fold Types: For diverse folding options - Job Memory: Stores up to 200 jobs - Double Sheet Detection and Sheet Run Monitoring: Ensures high precision - Creasing and Perforating Device: For additional finishing options - Quick Setup: Ready in seconds for maximum efficiency Specifications: - Paper formats: Maximum size: 558 x 850 mm; Minimum size: 128 x 148 mm - Paper weights: 40 – 250 g/sqm - Speed: Maximum: 240 m/min; 30,000 cycles/h in cross fold - Feeder pile height: 740 m - Machine dimensions: Main body: 3,100 mm x 1,090 mm x 1,680 mm (LxWxH); Delivery: 1,320 mm x 600 mm (LxW), height variable - Weight: 1,270 kg - Power supply: 400 V, 5.6 A, 3.2 kW

Unterfranken

Germany

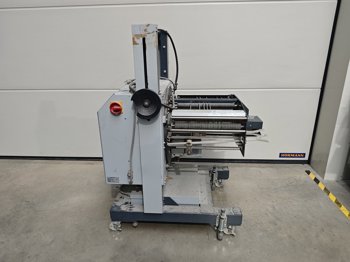

23224

Folding Machine

Horizon MKU-54 mobile knife unit - installation: height automatically adjustable - usage: online and offline workable - sheet size: max. 540x360mm; min. 160x100mm; - infeed height: 570-970mm - capacity: 20.000 Takte; 230m/min - power: 230V / 50Hz - 0,7kW - dimensions: 1.060x750x1.300mm - weight: 280kg

Unterfranken

Germany

23227

Three Knife Trimmer

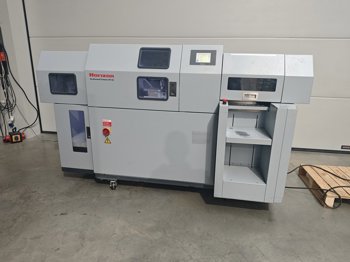

HORIZON HT-30, Three-Side Trimmer, used The Horizon HT-30 is a highly robust three-side trimmer known for its exceptional reliability, making it one of the most popular machines in print finishing – a guarantee of quality that often sells out quickly due to high demand. Key Features: - Usage: Solo (offline) - User-Friendly: Easy settings via touchscreen - The Horizon HT-30 cuts books fully automatically, eliminating the need for constant operator presence. After loading the books, the HT-30 signals when cutting is complete, ready for unloading and reloading - Memory Function: 40 memory slots for repeat jobs - Operation: Stacks and cuts up to 10 copies simultaneously, fully automatic - Cutting Process: Knife works in two directions for damage-free cuts - Conveyor: Transports trimmed books to a stacking area - Durable Construction: Built for long-lasting use Specifications: - Untrimmed Book Size: Max: 320 x 235 x 51 mm; Min: 152 x 136 x 1 mm - Trimmed Book Size: Max: 305 x 230 x 51 mm; Min: 148 x 134 x 1 mm - Trim Range: Max: 99 mm; Min: 2 mm - Pre-Stack Depth: 300 mm - Speed: Up to 520 books per hour - Pressure: Max 8 kN - Noise Level: Max 70 dB - Dimensions: 2,350 x 1,160 x 1,370 mm - Power Supply: 400V / 50Hz - 1.25kW - Weight: 1,020 kg

Unterfranken

Germany

23229

Three Knife Trimmer

HORIZON HT-30, Three-Side Trimmer, used The Horizon HT-30 is a highly robust three-side trimmer known for its exceptional reliability, making it one of the most popular machines in print finishing – a guarantee of quality that often sells out quickly due to high demand. Key Features: - Usage: Solo (offline) - User-Friendly: Easy settings via touchscreen - The Horizon HT-30 cuts books fully automatically, eliminating the need for constant operator presence. After loading the books, the HT-30 signals when cutting is complete, ready for unloading and reloading - Memory Function: 40 memory slots for repeat jobs - Operation: Stacks and cuts up to 10 copies simultaneously, fully automatic - Cutting Process: Knife works in two directions for damage-free cuts - Conveyor: Transports trimmed books to a stacking area - Durable Construction: Built for long-lasting use Specifications: - Untrimmed Book Size: Max: 320 x 235 x 51 mm; Min: 152 x 136 x 1 mm - Trimmed Book Size: Max: 305 x 230 x 51 mm; Min: 148 x 134 x 1 mm - Trim Range: Max: 99 mm; Min: 2 mm - Pre-Stack Depth: 300 mm - Speed: Up to 520 books per hour - Pressure: Max 8 kN - Noise Level: Max 70 dB - Dimensions: 2,350 x 1,160 x 1,370 mm - Power Supply: 400V / 50Hz - 1.25kW - Weight: 1,020 kg

Unterfranken

Germany

23231

Booklet machines

Horizon VAC-100a VAC-100m SPF-20A FC-20A Booklet Making System, Used This Horizon booklet making system is a powerful solution for professional booklet production, combining collating, stitching, folding, and front trimming in an efficient process. It offers high productivity, versatile applications, and easy operation for efficient booklet production. Key Features: - Two collating towers: VAC-100a and VAC-100m with 10 stations each - Versatile stitching options: Saddle, corner, and side stitching possible - Touch & Work: Intuitive operation thanks to user-friendly technology - 9 programmable memory locations for repeat jobs - Precise error control: Prevention of miss-feed, double-feed, and jam problems - Expandable configuration: Possibility to add more VAC-100 towers Technical Specifications: - Paper format: max. 350 x 500 mm; min. 148 x 120 mm - Booklet format: max. 250 x 350 mm; min. 85 x 120 mm - Paper weight: 40-300 g/m² - Processing thickness: 2-22 sheets (80 g/m²) - Trimming thickness: 4-50 sheets (80 g/m²) - Front trim: max. 25 mm - Production speed: max. 3,600 booklets/h - Collating performance: up to 9,900 sets/h - Loading capacity per station: 55 mm - Power supply: 230V; 50/60Hz - Total power consumption: approx. 2.3 kW

Unterfranken

Germany

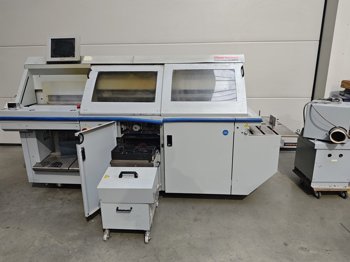

23232

Small perfect binder

- one clamp perfect binder BQ-280 - NO PRE MELTER Horizon BQ-280PUR one-clamp perfect binder - clamps: 1 - spine gluing: PUR - sight gluing: hotmelt - book block thickness: integrated monitoring station (outside the clamp) - milling section: with extraction - milling depth: adjustable - cover feeder: suction drum feeder with 4x scoring - technology: touch & work - saveable jobs: 200 memories for repeat orders - sheet size: max: 385 x 320 mm; min: 135 x 105 mm - cover size: max. 660 x 385mm; min. 240 x 135mm - book thickness: max. 50mm; min. 1mm - cover weight range: 90 - 300 g/sqm - cover pile hight: max. 70mm - speed: max. 500 cycles/h dimensions: 3.055 x 905 x 1.520mm - power: 400V/ 50Hz - 2,7kW -weight: 900kg

Unterfranken

Germany

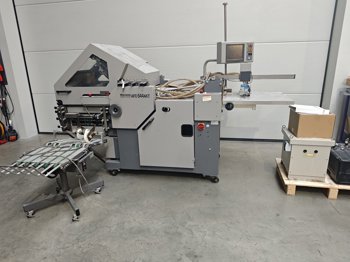

23230

Buckle Folding Machine

Horizon AFC-544 AKT 4-buckles cross folder PRICE WITH NEW PARALLELFOLD ROLLERS: 9.900 EUR - parallelfold rollers condition: 0% - crossfold rollers condition: 10% PRICE WITH NEW PARALLELFOLD ROLLERS: 9.900 EUR - technology: touch & work - memory folding types: 17 standard-typs of fold preprogrammed - saveable jobs: 200 memories for repeat orders - numbers of buckles: 1. folding unit: 4 buckles + knife 2. folding unit: 2 buckles - knife: full automatic - sheet size: max. 540x760mm; min. 120x172mm - fold length: 1. buckle: min. 58mm all other buckles: min. 35mm - paper weight: 40-250g/sqm - pile height: 650mm - speed: max. 40.000 cycles/h - power: 400V/50Hz - 2,5kW - dimensions: 2.700x1.050x1.650mm (without conveyor) - weight: 1.050kg

Unterfranken

Germany

23225

Booklet machines

Horizon VAC-100a SPF-20A FC-20A Booklet Making System, Used This Horizon booklet making system is a powerful solution for professional booklet production, combining collating, stitching, folding, and front trimming in an efficient process. It offers high productivity, versatile applications, and easy operation for efficient booklet production. Key Features: - Collator: VAC-100a with 10 stations - Versatile stitching options: Saddle, corner, and side stitching possible - Touch & Work: Intuitive operation thanks to user-friendly technology - 9 programmable memory locations for repeat jobs - Precise error control: Prevention of miss-feed, double-feed, and jam problems - Expandable configuration: Possibility to add more VAC-100 towers Technical Specifications: - Paper format: max. 350 x 500 mm; min. 148 x 120 mm - Booklet format: max. 250 x 350 mm; min. 85 x 120 mm - Paper weight: 40-300 g/m² - Processing thickness: 2-22 sheets (80 g/m²) - Trimming thickness: 4-50 sheets (80 g/m²) - Front trim: max. 25 mm - Production speed: max. 3,600 booklets/h - Collating performance: up to 9,900 sets/h - Loading capacity per station: 55 mm - Power supply: 230V; 50/60Hz - Total power consumption: approx. 2.3 kW

Unterfranken

Germany

23233

Binding Machines

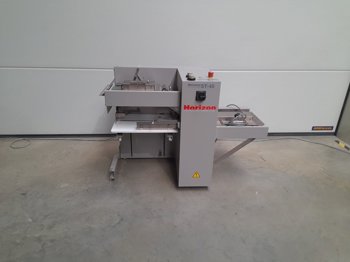

- horizontal conveyor ST-40 Horizon ST-40 incl. ST-CV stacker receiving tray + horizontal conveyor - benefit: enable non-stop operation in spite of misfeed- and doublefeedcontrol - dimensions: 1.300x700x950mm - weight: 136kg

Unterfranken

Germany

23221

Booklet machines

Duplo booklet maker System 5000 offer consists of: - 2x collators DC-10/60 - lifting unit LUL-HM - bookletmaker DBM-500 - trimmer DBM-500T - preset kicker DBM-K - conveyor DBM-400LS - Watkiss Auto SpineMaster: Turns stapled brochures into professional SquareBack brochures. Duplo System 5000 booklet maker 2xDC-10/60: collator - number of bins: 20 - paper size: width: min. 120mm, max. 350mm length: min. 148mm, max. 500mm - paper weight: 0-300g/sqm - loading volume: 60mm - feeding system: belt suction feed system - conveyance system: roller belt conveyance system - power supply: 120 to 240 V 50/60 Hz - power consumption: 9.5A (120 V 60 Hz), 4.5A(220-240V, 50Hz) DBM-500: stitcher folder - paper size: min. 120x170mm; max. 350x500mm - process speed: >5000 pcs/h, A5 >4600 pcs/h, A4 >4000 pcs/h, A3 - No. of stitches 0 to 2 - stitch thickness within 5mm - wire diameter #25 to #27 - folding capacity: below 25 sheets - dimensions: 2,230 (W) x 865 (D) x 1300 (H) - ratings: 120 to 240 V 50/60Hz 6.5-3.8A - weight: 412kg DBM-500T: Trimmer - booklet size: min. 85x120mm; max. 250x356mm - trimmed booklet size: min. 75x120mm - speed: ut to 5000 sets per hour - power consumption: 120V 690Hz 10A - dimensions: 700mm x 635mm x 1094mm - weight: 532 lbs (241kg)

Unterfranken

Germany

70267

Small perfect binder

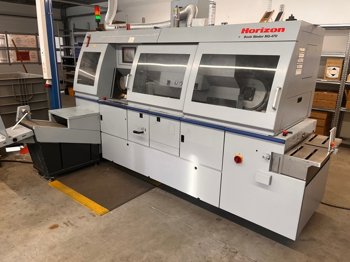

Fully Automatic 4-Clamp Perfect Binder from HORIZON The Horizon BQ-470 is a versatile perfect binder ideal for medium and small runs, as well as single-copy production. With its user-friendly operation and flexible applications, the Horizon BQ-470 is the perfect choice for your bookbinding needs. Key Features: - Easy to use 10.4-inch color touchscreen allows even less experienced operators to create high-quality bindings without problems - Advanced rotating suction feeding system speeds up production by handling many types of cover materials without leaving marks - Automatically adjustable scoring position (4 lines) ensures professional bindings with sharp, square spines Specifications: - Book block size: Max. 320 x 320 mm, Min. 145 x 105 mm - Book thickness: 1 to 65 mm - Cover size: Max. 320 x 660 mm, Min. 135 x 225 mm - Cover weight: 81.4 to 302.4 g/m² (plain paper), 104.7 to 348.9 g/m² (coated paper) - Production speed: Up to 1,350 cycles per hour (EVA), up to 1,000 cycles per hour (PUR) All-Inclusive Service Package We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer.

Unterfranken

Germany
