Saddle Stitching
6 views
Horizon - SPF-20 A FC-20 A
Technical Specifications
| Year | 2005 |
| Machine Condition | In Stock |
Machine Description

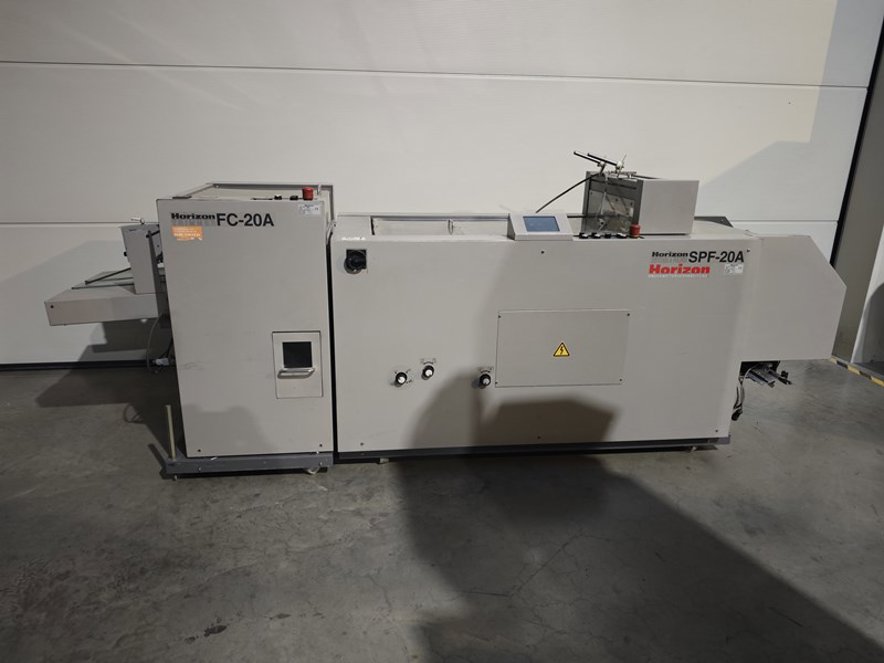

Horizon booklet maker SPF-20 A FC-20 A.
.
offer consists of:.
.
- stitching and folding SPF-20A.
- frontcutter FC-20A.
.
.

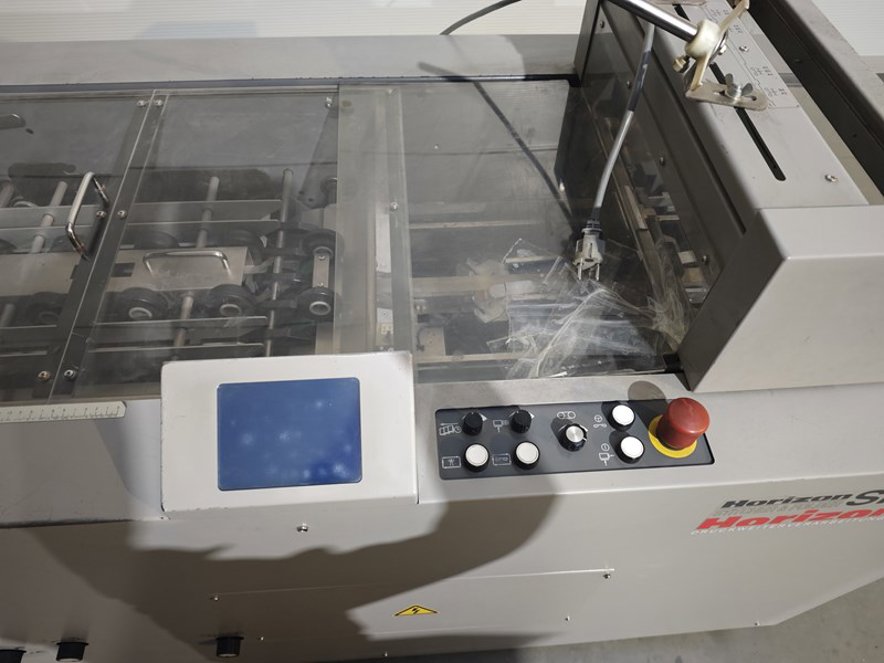

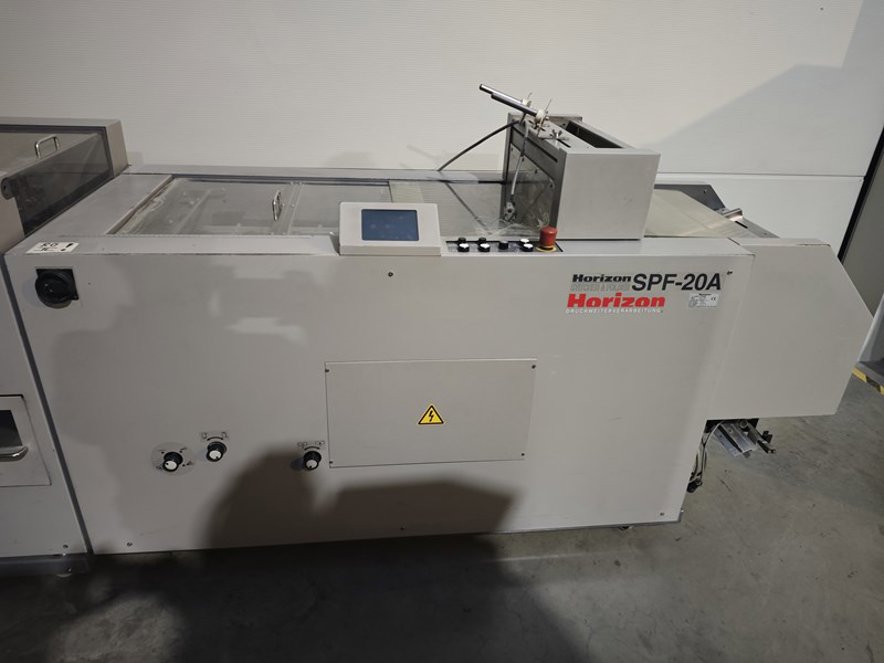

Horizon SPF-20A.
stitcher and folder:.
.
- format adjustment: fully automatic.
- DIN-size and standard fold types: preassigned.
- saveable jobs: 12 memories for special sheet sizes + all DIN sheet sizes.
- stitching heads: 2 - expandable up to 4 stitching heads.
- stapling options: top-, side-, cornerstitiching.
- ring eylete stitiching: with ring eyelet stitching heads possible.
.
- inlet format:.
max. 500x350mm;.
min. 180x120mm.
.
- processing strength:.
min. 2 pages; max. 22 pages (80g/sqm).
.
- clip distance: min. 73mm.
- stitching wire: 26 - 28.
- production speed: max. 3.600 cycles/h.
.
- power: 230V/50Hz - 0,45kW.
- dimensions: 2.710x810x1.070mm.
- weight: 490kg.
.

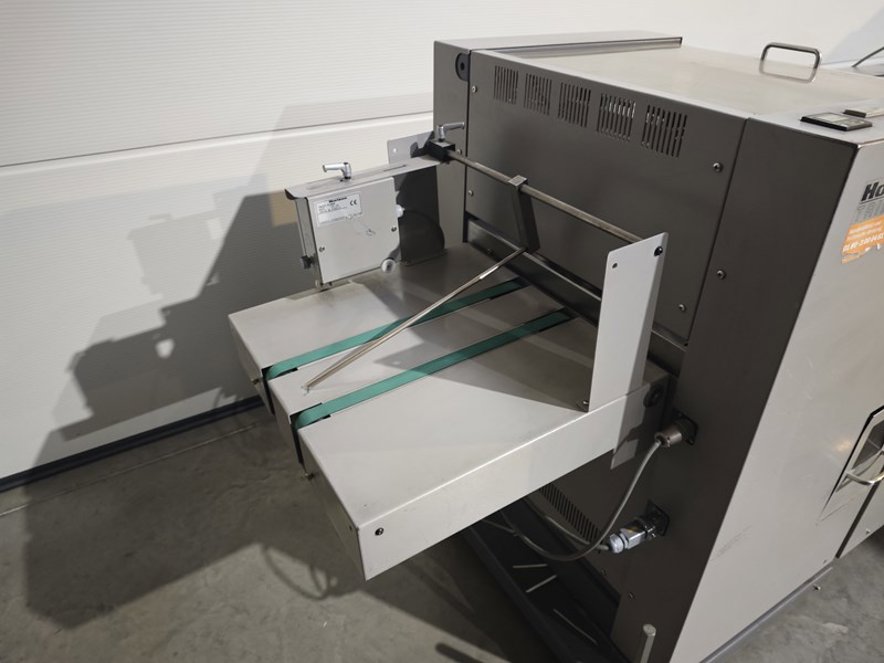

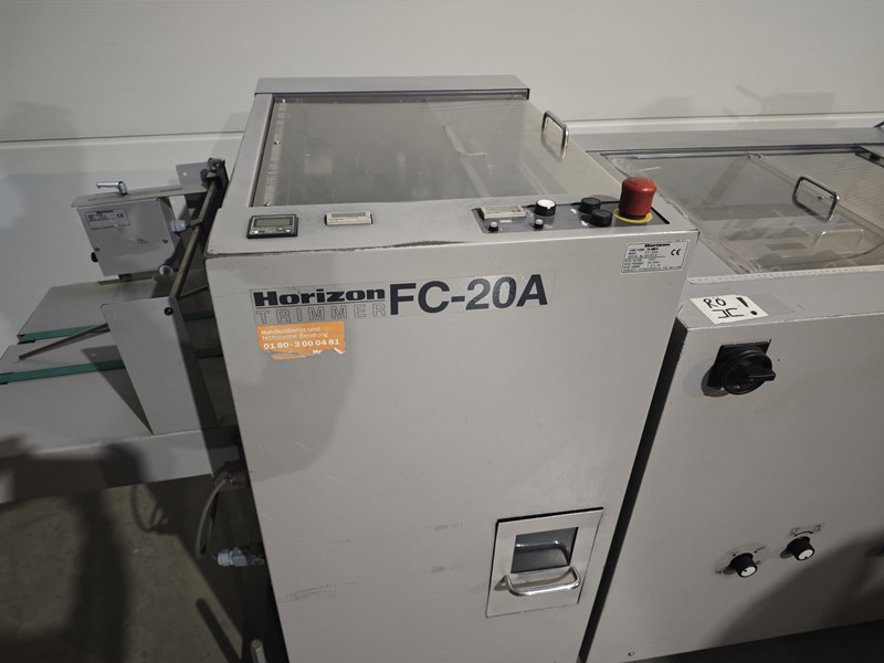

Horizon FC-20A.
fore-edge trimmer:.
.
- counter.
- faulty set ejection.
.
- booklet size:.
max. 250x20mm; min. 85mm.
- size front cut:.
max. 20mm.
- trimming thickness:.
min. 4 pages / max. 88 pages (80g/sqm).
.
- production speed: max. 3.400 cycles/h.
.
- power: 230V/50Hz - 0,2kW.
- dimensions: 610x810x1.070mm.
- weight: 240kg...
The Horizon SPF-20 A FC-20 A is a high-performance booklet-making system designed for efficient stitching, folding, and trimming of booklets and brochures. Combining the SPF-20A stitcher and folder with the FC-20A front-edge trimmer, this machine delivers precise, automated production for print finishing applications. Key features include fully automatic format adjustment, multiple stitching options (top, side, corner, and ring eyelet stitching), and high-speed operation up to 3,600 cycles per hour. Ideal for commercial print shops, in-plant printing departments, and publishing houses, this system ensures consistent quality, reduced manual labor, and enhanced productivity for medium to large-volume booklet production.
Key Technical Aspects:
Dimensions and Specifications : The Horizon SPF-20A stitcher and folder measures 2,710 x 810 x 1,070 mm (L x W x H) and weighs 490 kg, while the FC-20A front-edge trimmer measures 610 x 810 x 1,070 mm and weighs 240 kg. Both units operate on 230V/50Hz power, with the SPF-20A consuming 0.45 kW and the FC-20A consuming 0.2 kW. The system supports up to 4 stitching heads (expandable from 2) and features 12 saveable job memories for custom sheet sizes.
Paper Handling : The SPF-20A accommodates inlet formats from 180 x 120 mm (min) to 500 x 350 mm (max) and processes booklets ranging from 2 to 22 pages (80 gsm). The FC-20A trims booklets from 85 mm (min) to 250 x 20 mm (max) with a front-cut capacity of up to 20 mm and handles thicknesses from 4 to 88 pages (80 gsm). Both units feature automatic format adjustment and faulty set ejection for reliable operation.
