Folding Machines
6 views
Horizon - MKU-38
Technical Specifications
| Year | 2020 |
| Machine Condition | In Stock |
Demonstration
Machine Description

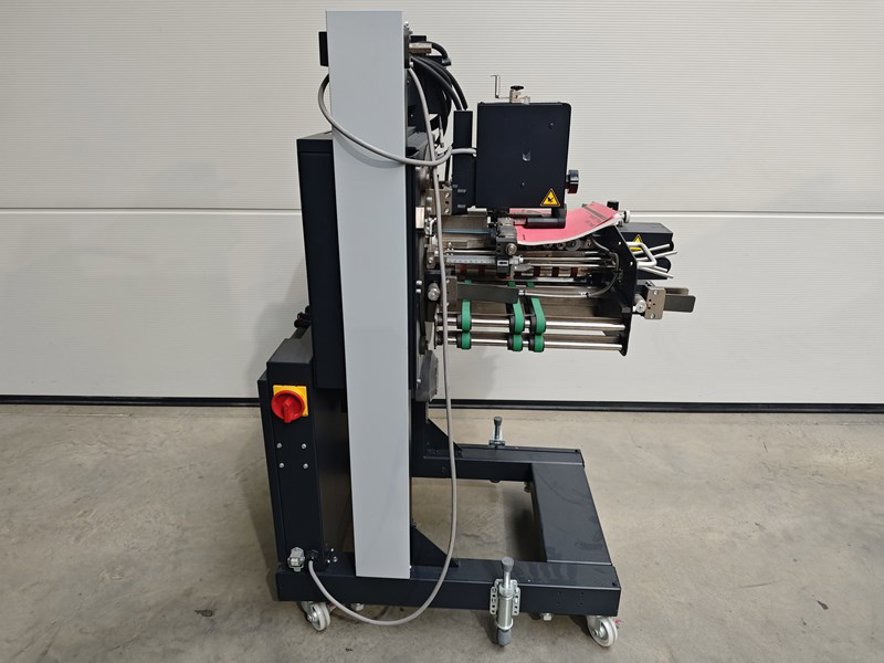

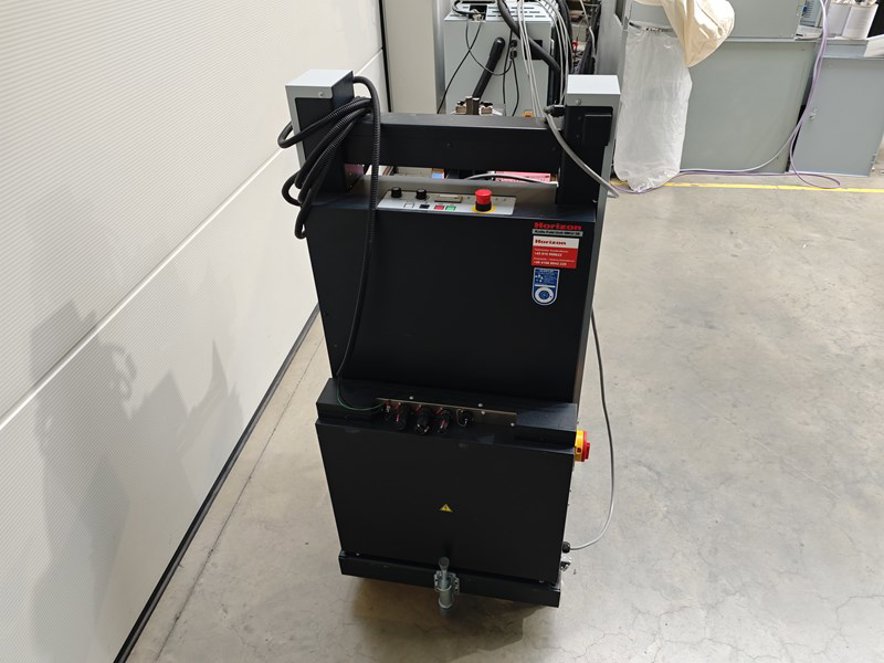

Mobile Knife Fold Unit, Horizon MKU-38, Used.
.
The Horizon mobile knife fold unit is a standalone folding unit that can be connected to various folding machines to provide additional folding options..
.
Key Features:.
- Can be used as a standalone unit or in conjunction with other machines.

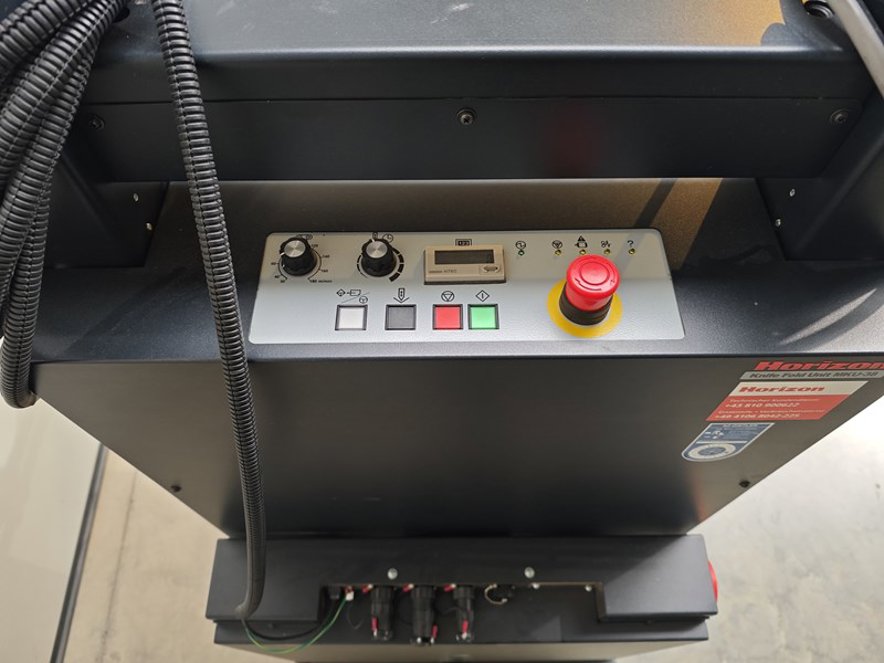

- Fully automatic operation with user-friendly touchscreen control.
- Compatible with various Horizon folding machines such as AF-series and AFC-series.

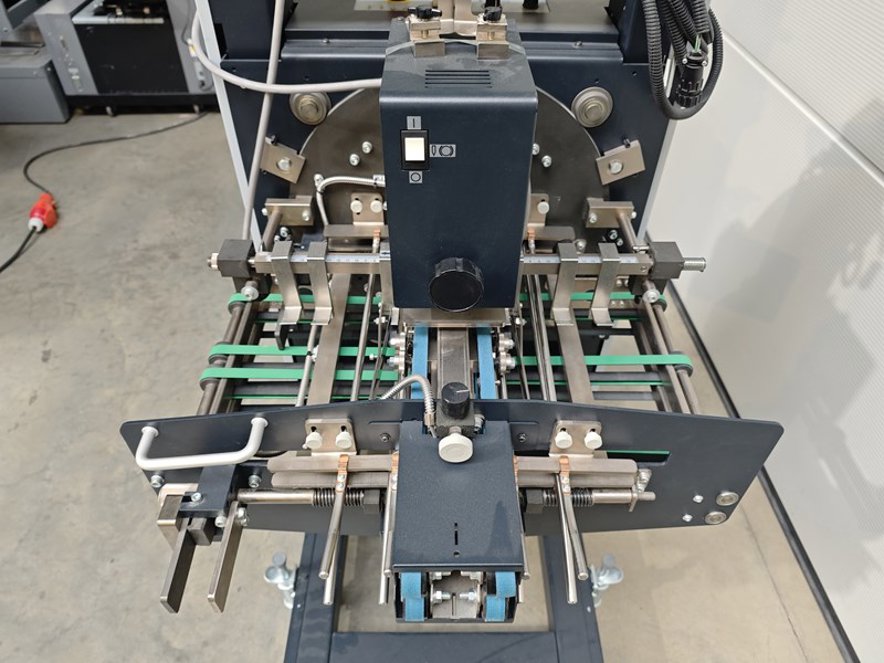

- Flexible folding options with reversible folding mechanism (knife from top or bottom).
- Adjustable delivery direction (left or right).
- Precise fold positioning through manual adjustment options.
- Integrated safety features such as emergency stop switch.
.
Technical Specifications:.
- Production speed: Up to 9,500 cycles per hour.
- Paper size: Max. 380 x 280 mm, Min. 90 x 20 mm.
- Paper thickness: 35 to 210 gsm.
- Folding thickness: Up to 2.3 mm or 0.09" thickness of folded sheet.
- Dimensions: 685 x 858 x 1,283.5 mm (W x D x H).
- Weight: 182 kg...
The Horizon MKU-38 Mobile Knife Fold Unit is a versatile and efficient folding machine designed to enhance productivity in print finishing operations. As a standalone or integrated unit, it provides additional folding capabilities with precision and flexibility. Key features include fully automatic operation with a user-friendly touchscreen, compatibility with various Horizon folding machines, and a reversible folding mechanism for diverse folding options. Ideal for commercial printing, packaging, and document production, this machine ensures high-speed performance, adjustable delivery directions, and robust safety features, making it a reliable choice for businesses seeking to optimize their folding processes.
Key Technical Aspects:
Dimensions and Specifications : The Horizon MKU-38 measures 685 x 858 x 1,283.5 mm (W x D x H) and weighs 182 kg. It operates at speeds up to 9,500 cycles per hour and includes integrated safety features such as an emergency stop switch.
Paper Handling : This unit accommodates paper sizes ranging from 90 x 20 mm to a maximum of 380 x 280 mm, with a paper thickness of 35 to 210 gsm. It supports a folding thickness of up to 2.3 mm (0.09") for folded sheets, offering precise fold positioning through manual adjustments.
Horizon - MKU-38
Price On Request
