Horizon - AFC-504/544/546
Technical Specifications
| Year | 2005 |
| Machine Condition | In Stock |
Machine Description

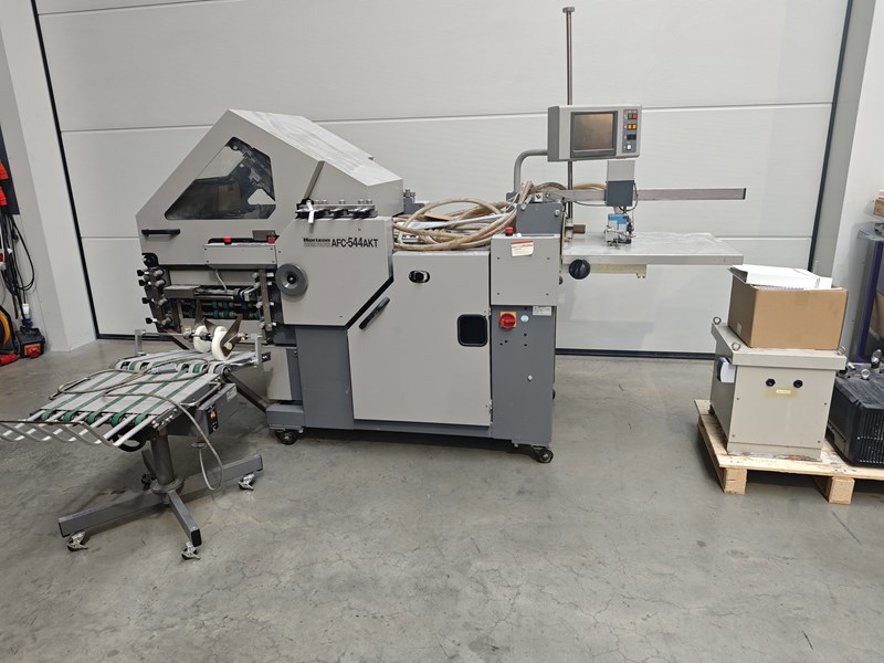

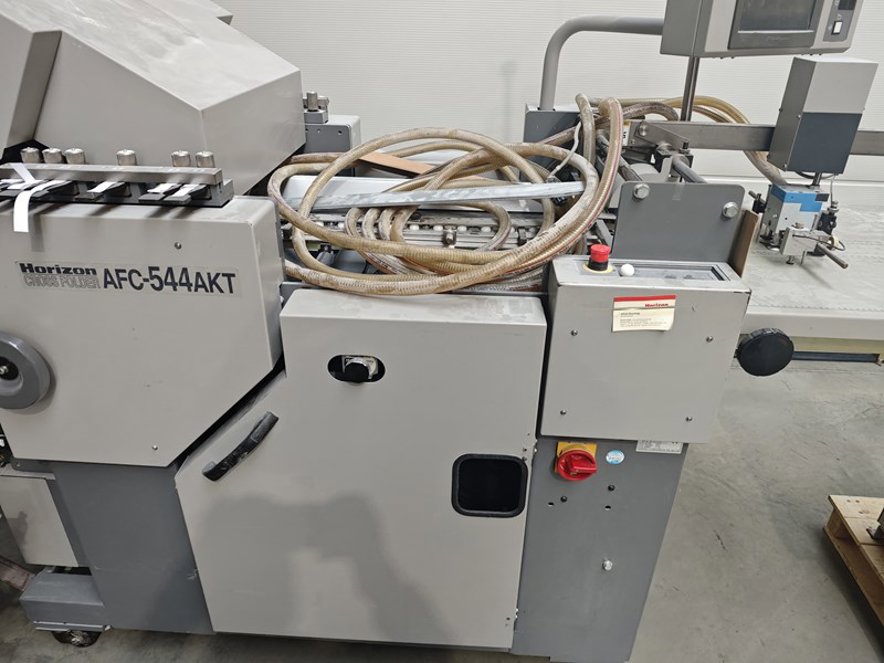

Horizon AFC-544 AKT.
4-buckles cross folder.
.
PRICE WITH NEW PARALLELFOLD ROLLERS: 9.900 EUR.
.

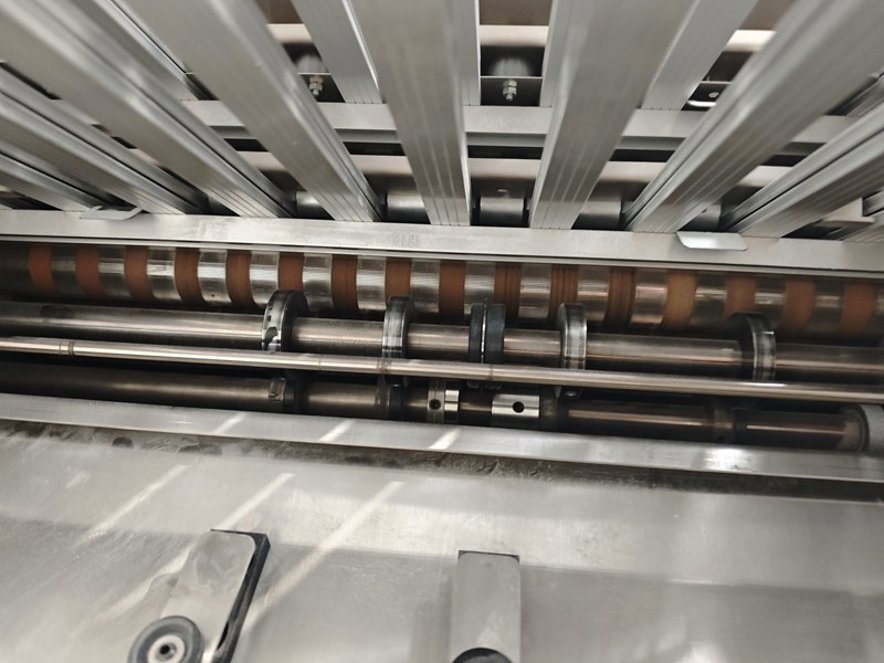

- parallelfold rollers condition: 0%.
- crossfold rollers condition: 10%.
.
PRICE WITH NEW PARALLELFOLD ROLLERS: 9.900 EUR.
.
- technology: touch & work.
.
- memory folding types:.
17 standard-typs of fold preprogrammed.
.
- saveable jobs:.
200 memories for repeat orders.
.
- numbers of buckles:.
1. folding unit: 4 buckles + knife.
2. folding unit: 2 buckles.
.
- knife: full automatic.
.
- sheet size:.
max. 540x760mm; min. 120x172mm.
.
- fold length:.
1. buckle: min. 58mm.
all other buckles: min. 35mm.
.
- paper weight: 40-250g/sqm.
- pile height: 650mm.
.
- speed: max. 40.000 cycles/h.
.
- power: 400V/50Hz - 2,5kW.
- dimensions: 2.700x1.050x1.650mm.
(without conveyor).
- weight: 1.050kg...
The Horizon AFC-504/544/546 Buckle Folding Machine is a high-performance industrial folding system designed for precision and efficiency in paper handling. This advanced machine features a 4-buckle cross folder with touch-and-work technology, offering 17 preprogrammed standard fold types and 200 memory slots for repeat orders. Ideal for commercial printing, bindery operations, and mailing services, it delivers reliable folding for a wide range of paper sizes and weights, ensuring high productivity with a maximum speed of 40,000 cycles per hour.
Key Technical Aspects:
Dimensions and Specifications : The machine measures 2,700 x 1,050 x 1,650 mm (without conveyor) and weighs 1,050 kg. It operates on 400V/50Hz power with a 2.5 kW rating, featuring a maximum speed of 40,000 cycles per hour. The unit includes two folding units: the first with 4 buckles and a knife, and the second with 2 buckles, all fully automatic.
Paper Handling : The Horizon AFC-504/544/546 accommodates sheet sizes from 120 x 172 mm to 540 x 760 mm, with a paper weight range of 40-250 g/sqm. It supports a pile height of 650 mm and offers precise fold lengths: minimum 58 mm for the first buckle and 35 mm for all other buckles. The machine includes 17 preprogrammed fold types and 200 memory slots for efficient job repetition.
