Horizon - VAC-60Hc
Technical Specifications
| Year | 0 |
| Machine Condition | In Stock |
Machine Description

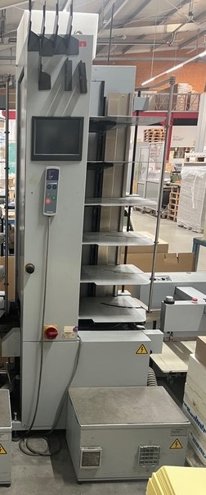

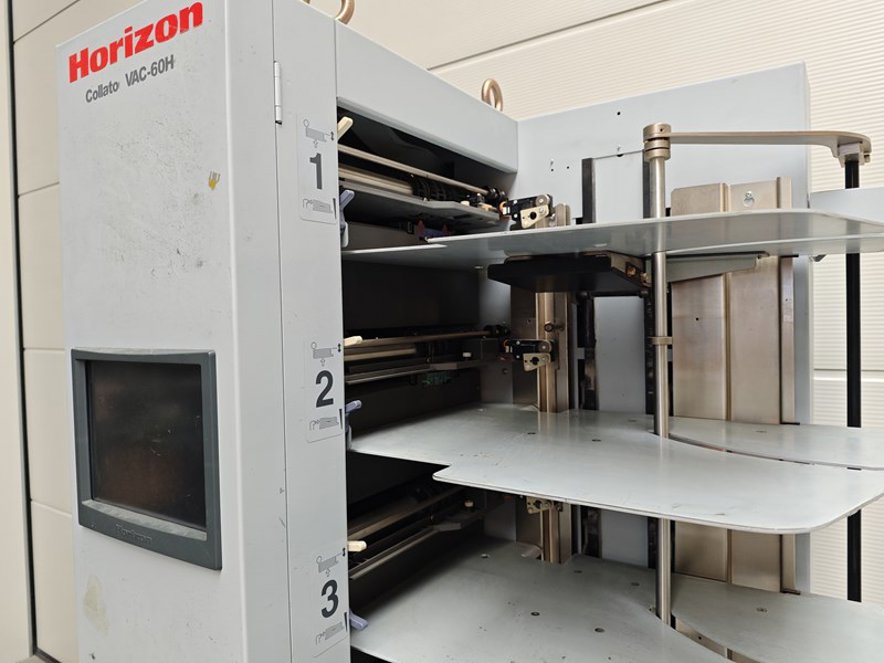

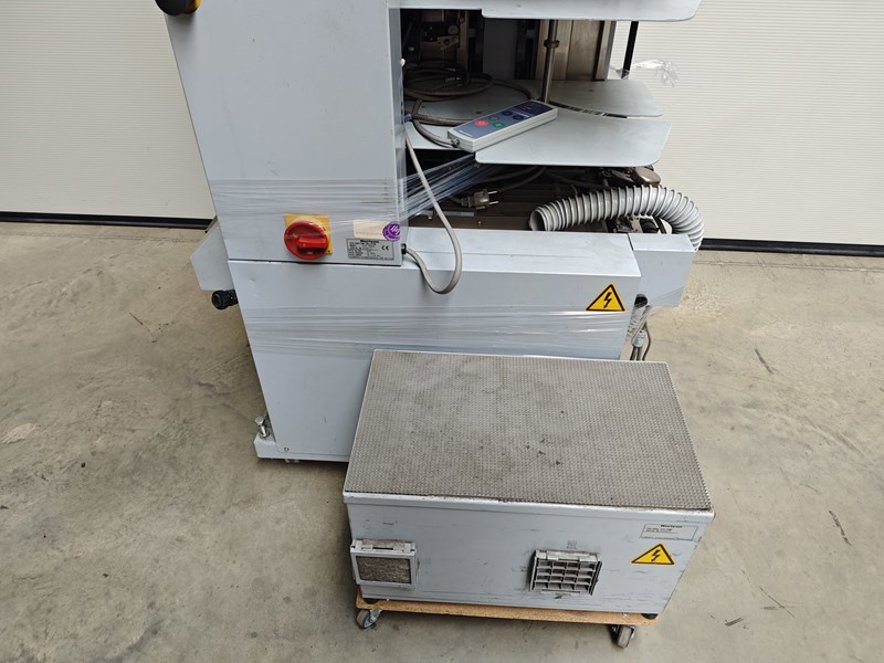

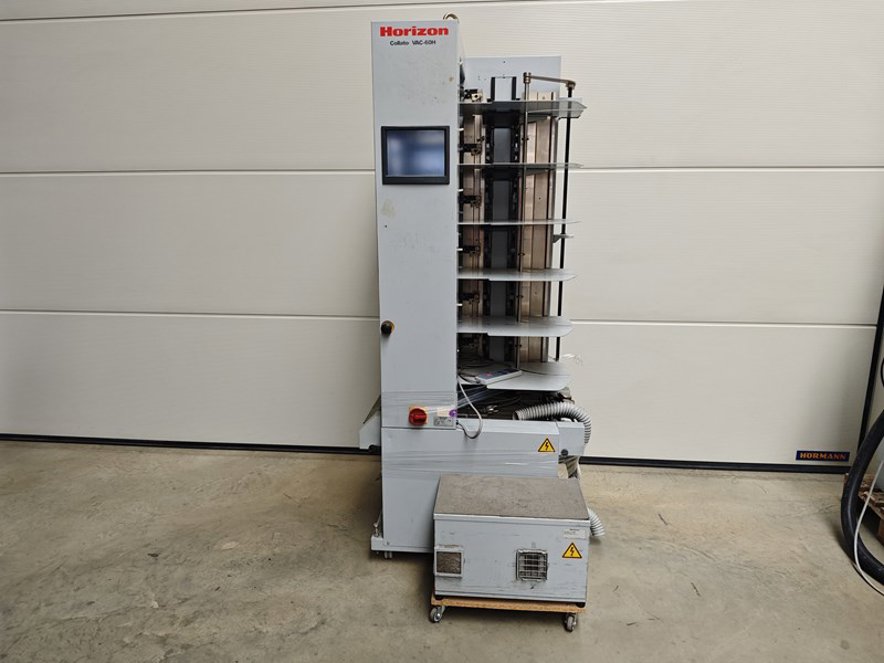

Used Horizon VAC-60Hc Collating Tower, used.
.
The Horizon VAC-60Hc is a powerful collating tower designed for efficient and reliable paper handling in professional print finishing environments..
.
.
Key Features:.
- Loading capacity: 130 mm per bin.
- Modular design: tower with 6 feed stations, expandable up to 6 towers for a total of 36 stations.
- Suction and air-blow technology: Uses Horizon's advanced technology for consistent and reliable sheet feeding with various paper types and weights.
- Versatile paper processing: Handles sheets from 148 x 120 mm to 500 x 350 mm, with paper weights from 40 to 250 g/m².
- High production speed: Up to 9,500 sets per hour, depending on paper size and configuration.

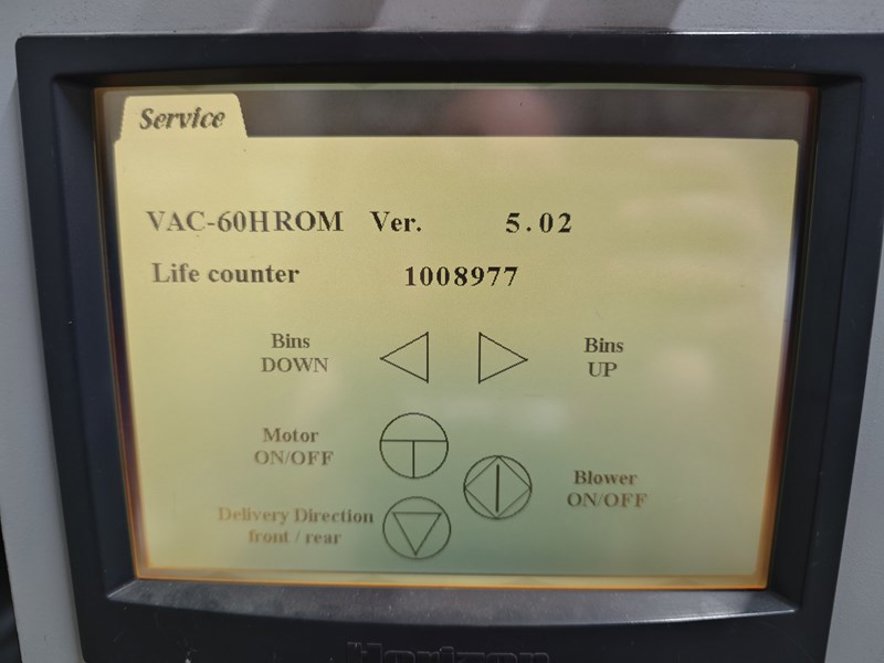

- User-friendly operation: Intuitive interface for easy job setup and control.
- Advanced error prevention: Equipped with miss-feed, double-feed, and jam detection for improved accuracy and reliability.
- Job memory: Ability to store recurring jobs for increased efficiency.
.
.
Technical Specifications:.
- Dimensions: 842 x 652 x 1,961 mm.
- Weight: 310 kg.

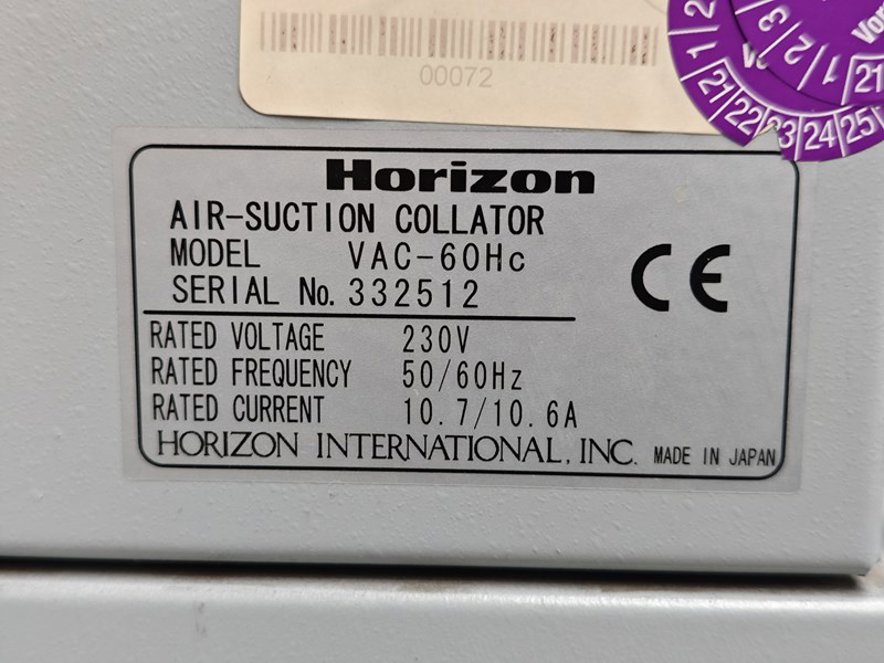

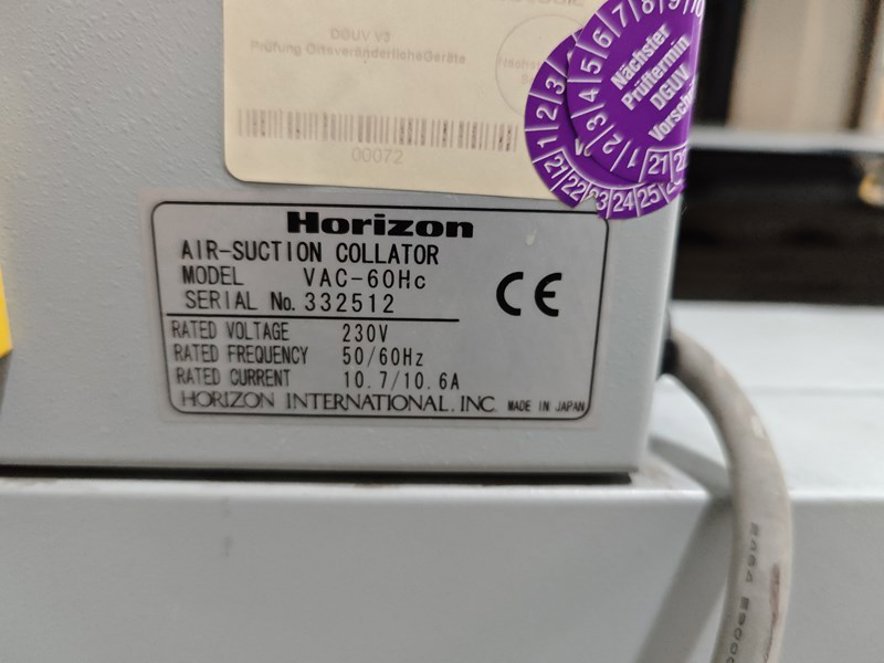

- Power supply: 230V, 50/60Hz - 1.86kW...
The Horizon VAC-60Hc is a high-performance collating tower designed for efficient gathering and collating operations in professional print finishing environments. Part of the Horizon product line, this modular machine offers reliable paper handling with advanced suction and air-blow technology, ensuring consistent sheet feeding across various paper types and weights. Key benefits include its expandable design (up to 36 stations), high production speed of up to 9,500 sets per hour, and user-friendly operation with job memory functionality. Ideal for commercial printers, binderies, and in-plant print shops, the VAC-60Hc enhances productivity while maintaining accuracy through advanced error detection systems.
Key Technical Aspects:
Dimensions and Specifications : The VAC-60Hc measures 842 x 652 x 1,961 mm (W x D x H) and weighs 310 kg. It operates on a 230V, 50/60Hz power supply with a 1.86kW power consumption. The modular tower features 6 feed stations, expandable to 6 towers for a total of 36 stations.
Paper Handling : This collating tower handles sheets ranging from 148 x 120 mm to 500 x 350 mm with paper weights between 40 to 250 g/m². Each bin has a loading capacity of 130 mm. The machine employs Horizon's suction and air-blow technology for reliable feeding, with advanced features including miss-feed, double-feed, and jam detection.
Horizon - VAC-60Hc
Price On Request
