Horizon - VAC-60Ha
Technical Specifications
| Year | 2006 |
| Machine Condition | In Stock |
Machine Description

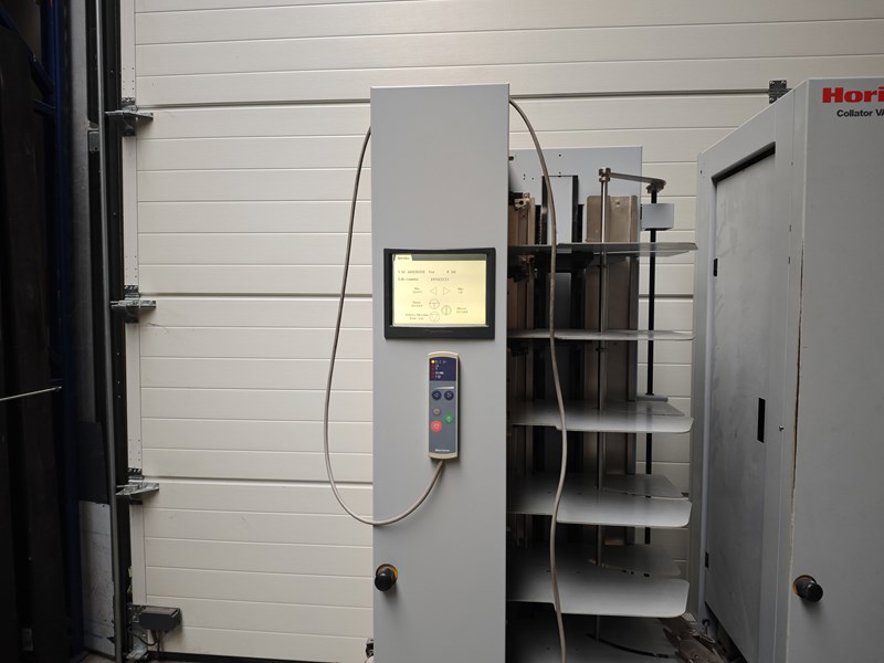

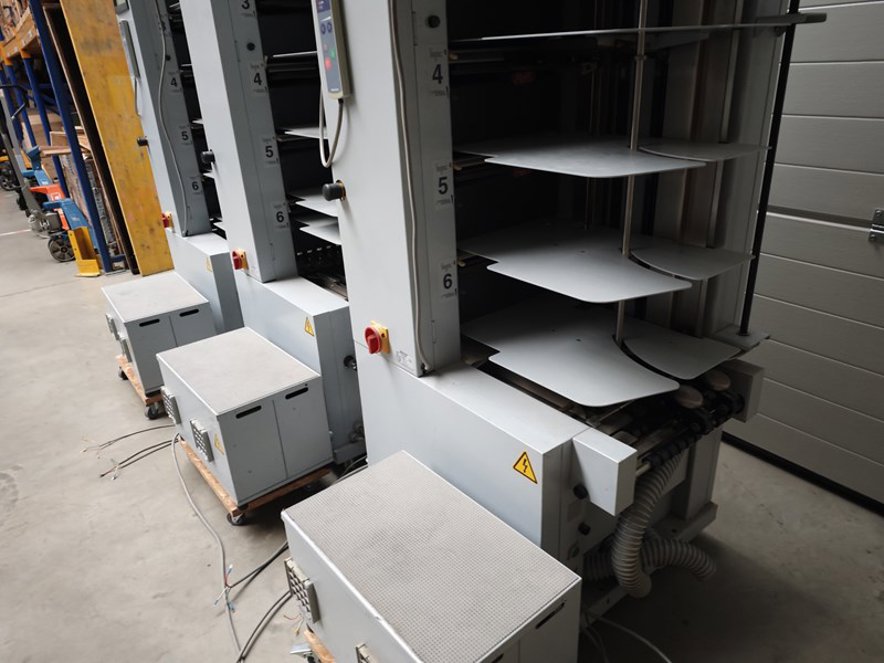

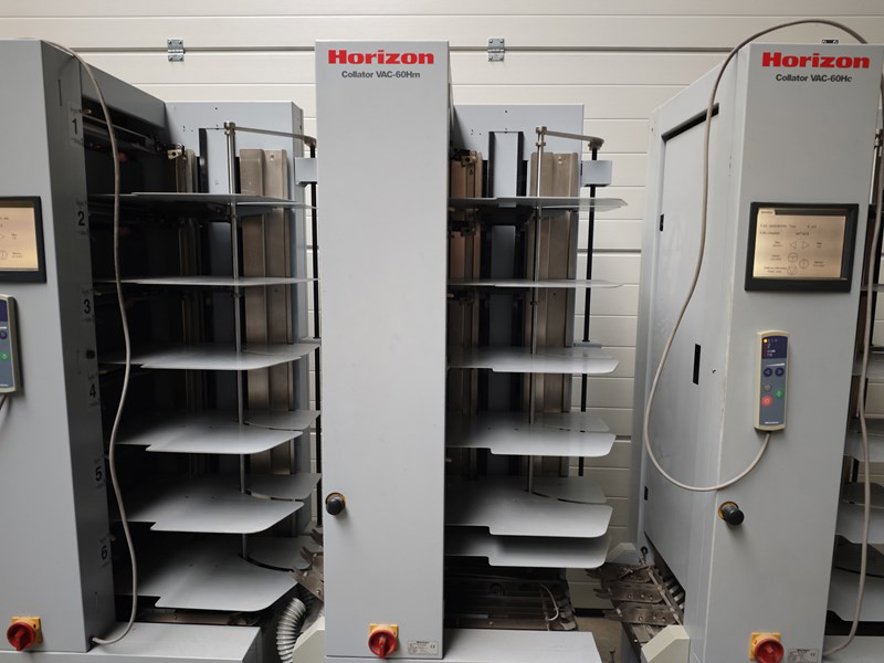

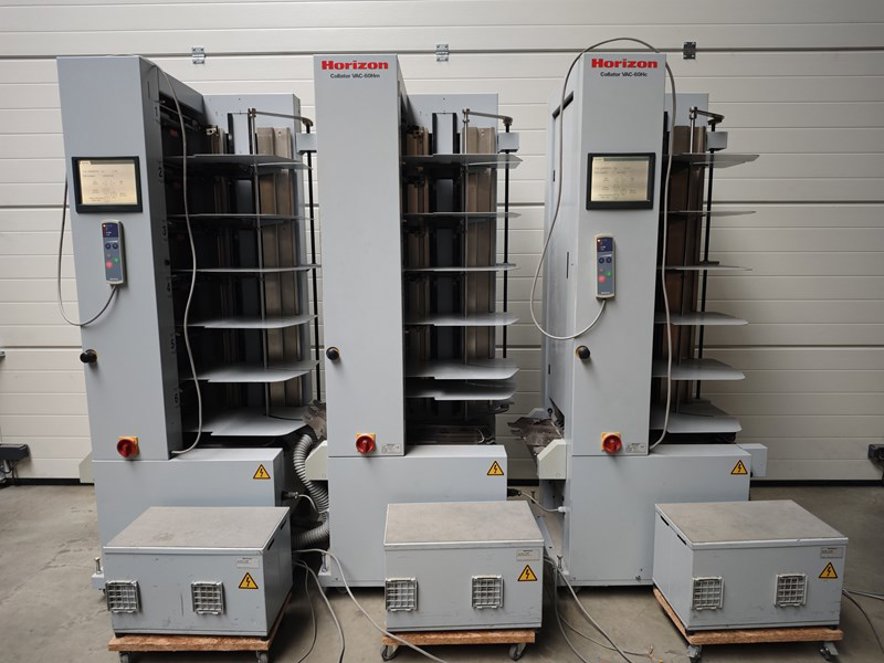

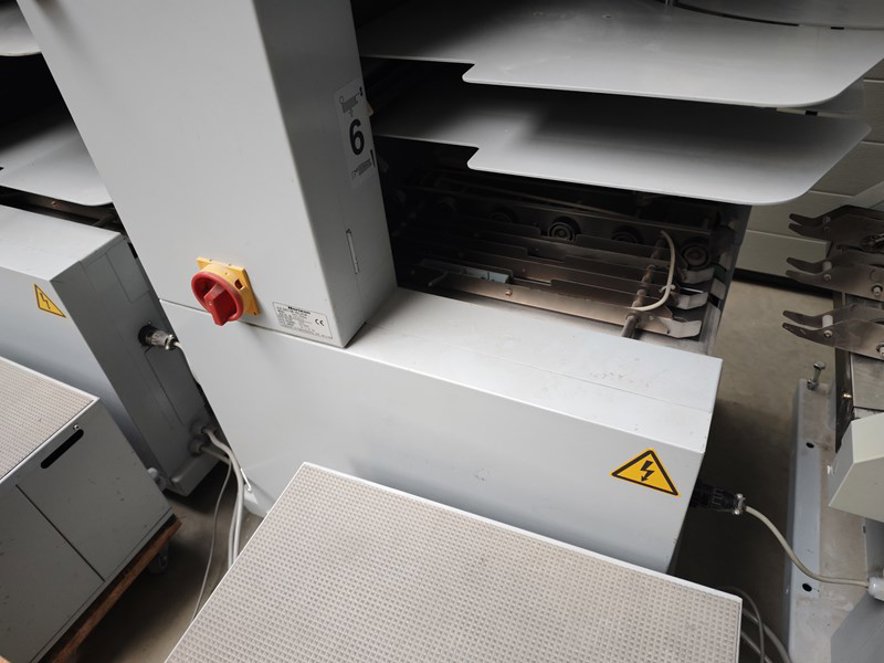

HORIZON VAC-60Ha / Hm / Hc Collators.
.
The Horizon VAC-60 series (Ha, Hm, Hc) are modular air-suction collators designed for professional print finishing, offering precise, fast, and reliable sheet handling..
.
Key Features.
.
Modular system: Each collator includes 6 feeding stations; expandable up to 6 towers (36 stations total)..
.
Advanced air-suction feeding: Ensures consistent and reliable sheet transport for a wide paper range..
.
Flexible format range: Handles sheets from approx. 120 × 148 mm to 500 × 350 mm, with paper weights from 40–300 g/m²..
.
High-speed productivity: Processes up to 9,500–10,000 sets per hour, depending on setup..
.
User-friendly operation: Models Ha and Hc feature “Touch & Work” technology for quick setup and control..
.
Efficient integration: Model Hm serves as an expansion module without its own controls..
.
Error prevention: Equipped with sensors for misfeed, double-feed, and jam detection..
.
Job memory: Up to 9 programmable settings for recurring jobs..
.
Technical Specifications.
.
Dimensions: approx. 842 × 652 × 1,961 mm.
.
Weight: about 310–315 kg.
.
Power supply: 230V, 50/60Hz, 1.86 kW.
.
Loading height: 130 mm per station...
The Horizon VAC-60Ha is a professional-grade air-suction collator designed for high-volume gathering and collating tasks in print finishing environments. Part of the modular VAC-60 series, this machine ensures precise, fast, and reliable sheet handling with advanced air-suction feeding technology. Ideal for commercial printers, binderies, and in-plant print shops, the VAC-60Ha enhances productivity with its expandable configuration, user-friendly operation, and robust error detection. Key benefits include high-speed processing, flexible paper handling, and seamless integration into existing workflows, making it a versatile solution for assembling multi-page documents, booklets, and marketing materials.
Key Technical Aspects:
Dimensions and Specifications : The Horizon VAC-60Ha measures approximately 842 × 652 × 1,961 mm and weighs about 310–315 kg. It operates on a 230V power supply (50/60Hz) with a power consumption of 1.86 kW. The machine features a loading height of 130 mm per station and includes up to 9 programmable job memory settings for recurring tasks.
Paper Handling : The VAC-60Ha handles a wide range of sheet sizes from approximately 120 × 148 mm to 500 × 350 mm, accommodating paper weights between 40–300 g/m². It supports up to 6 feeding stations per tower, expandable to 6 towers (36 stations total), and processes up to 9,500–10,000 sets per hour. Advanced air-suction feeding ensures consistent and reliable sheet transport, while sensors detect misfeeds, double-feeds, and jams for error-free operation.
Horizon - VAC-60Ha
Price On Request
