Horizon - VAC-60
Technical Specifications
| Year | 2004 |
| Machine Condition | In Stock |
Machine Description

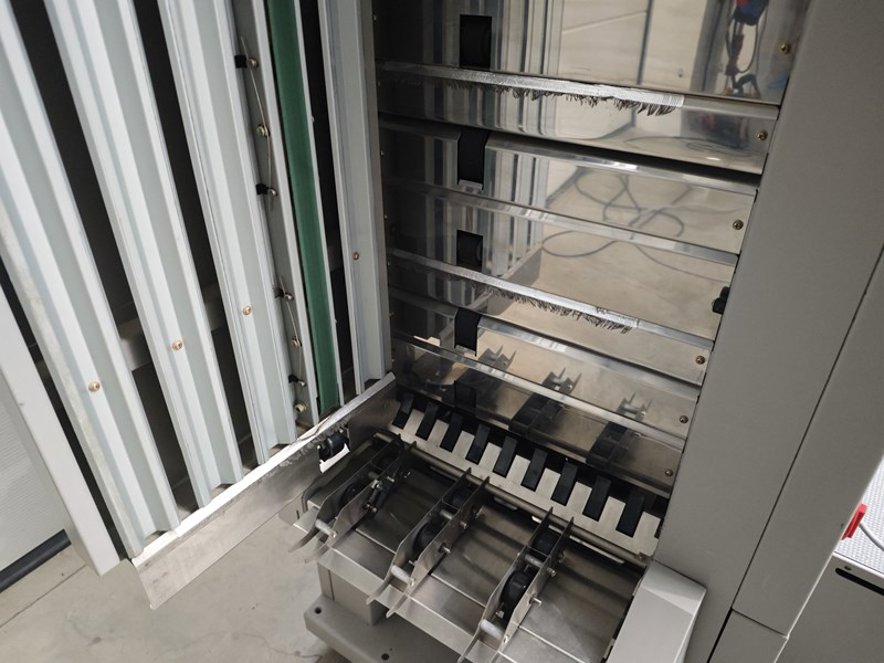

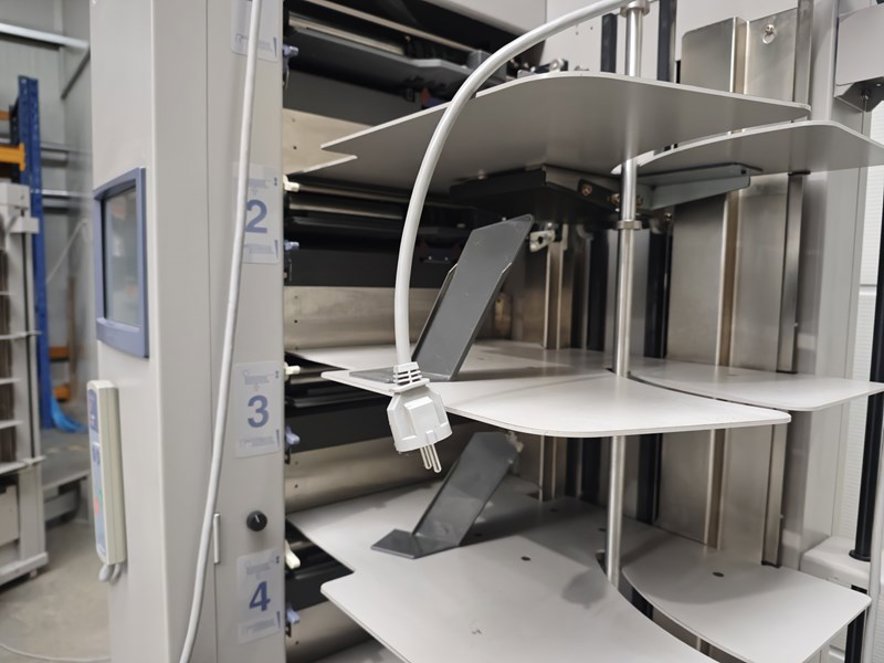

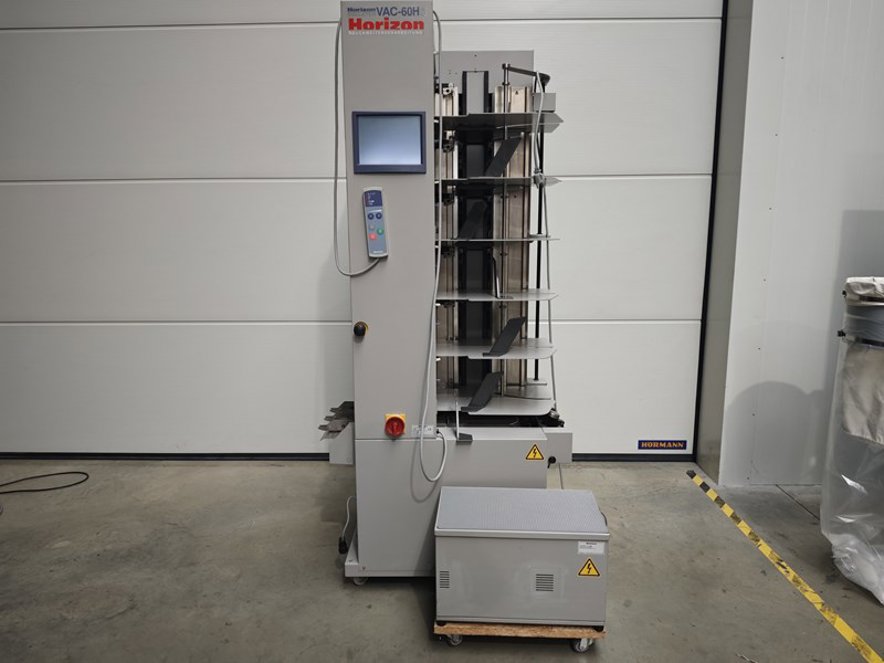

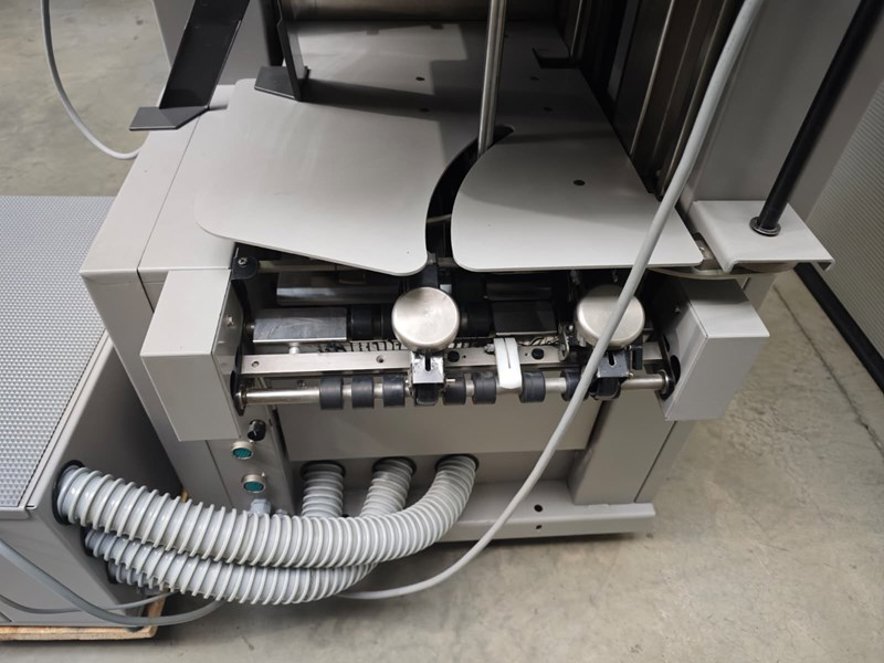

Used Horizon VAC-60Hc Collator, used.
.
The Horizon VAC-60Hc is a powerful collator designed for efficient and reliable paper handling in professional print finishing environments..
.
.
Key Features:.
- Loading capacity: 130 mm per bin.
- Modular design: Tower with 6 feed stations, expandable up to 6 towers for a total of 36 stations.
- Suction and air-blow technology: Uses Horizon's advanced technology for consistent and reliable sheet feeding with various paper types and weights.
- Versatile paper processing: Handles sheets from 148 x 120 mm to 500 x 350 mm, with paper weights from 40 to 250 g/m².
- High production speed: Up to 9,500 sets per hour, depending on paper size and configuration.
- User-friendly operation: Intuitive interface for easy job setup and control.
- Advanced error prevention: Equipped with miss-feed, double-feed, and jam detection for improved accuracy and reliability.
- Job memory: Ability to store recurring jobs for increased efficiency.
.
.
Technical Specifications:.
- Dimensions: 842 x 652 x 1,961 mm.
- Weight: 310 kg.
- Power supply: 230V, 50/60Hz - 1.86kW...
The Horizon VAC-60Hc is a high-performance collator designed for gathering and collating tasks in professional print finishing environments. This used machine offers efficient and reliable paper handling, making it ideal for high-volume production settings. Key features include a modular design with expandable feed stations, advanced suction and air-blow technology for consistent sheet feeding, and user-friendly operation. With a production speed of up to 9,500 sets per hour, the VAC-60Hc enhances productivity while ensuring accuracy through its error prevention systems. Typical applications include booklet making, document assembly, and multi-part form processing.
Key Technical Aspects:
Dimensions and Specifications : The Horizon VAC-60Hc measures 842 x 652 x 1,961 mm and weighs 310 kg. It operates on a 230V power supply (50/60Hz) with a 1.86kW power consumption. Manufactured in 2004, this machine features a modular tower design with 6 feed stations, expandable up to 6 towers for a total of 36 stations.
Paper Handling : The VAC-60Hc handles sheets ranging from 148 x 120 mm to 500 x 350 mm, with paper weights between 40 to 250 g/m². Each bin has a loading capacity of 130 mm. The machine utilizes advanced suction and air-blow technology for reliable feeding across various paper types, ensuring consistent performance at speeds up to 9,500 sets per hour.
Horizon - VAC-60
Price On Request
