Horizon - VAC-100
Technical Specifications
| Year | 2005 |
| Machine Condition | In Stock |
Machine Description

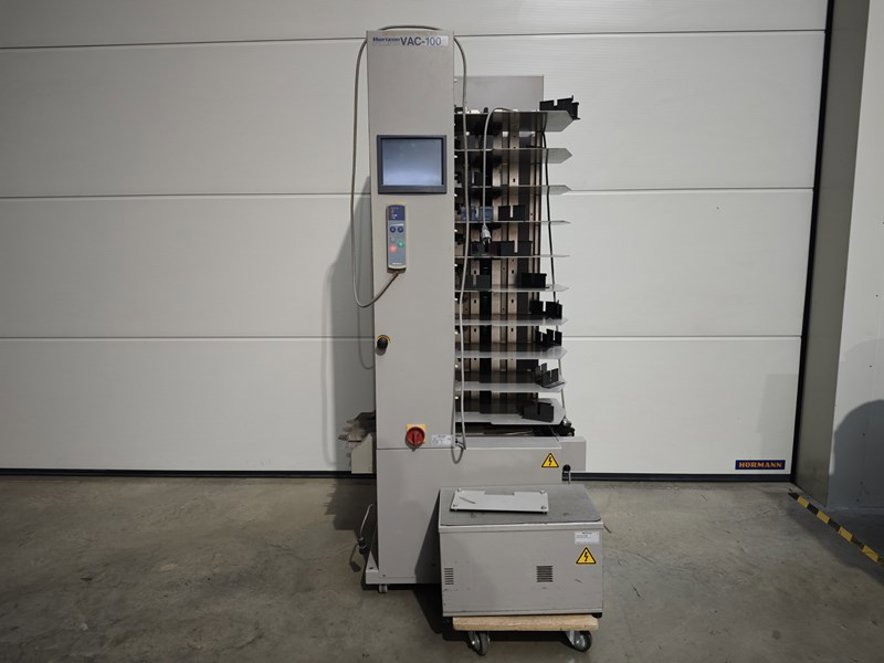

Horizon collator VAC-100c.
.
offer consists of:.
.
- air suction collator VAC-100c.
.
Horizon VAC-100c.
air-suction collator.
.
- technology: touch & work.
- model: air-suction collator.

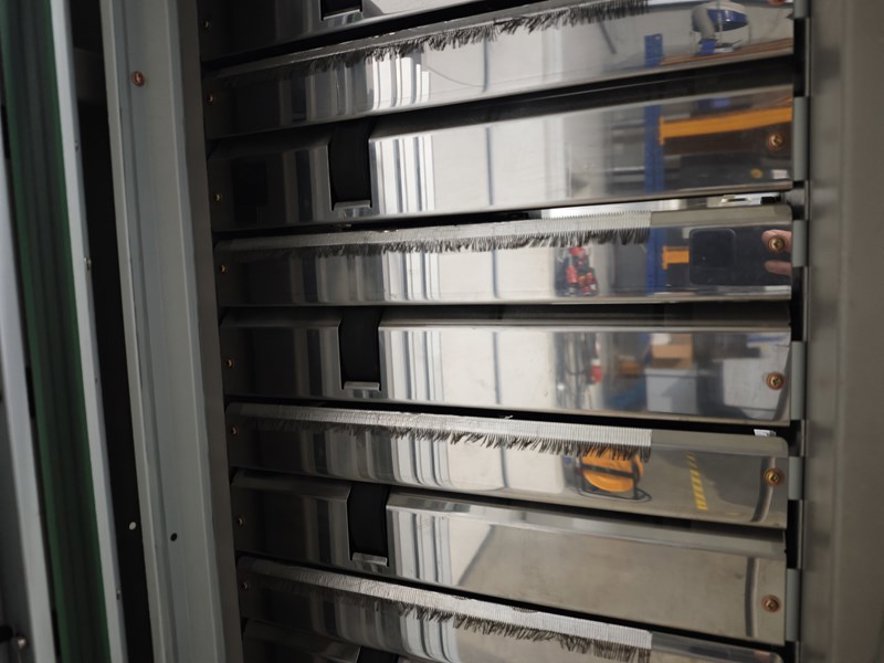

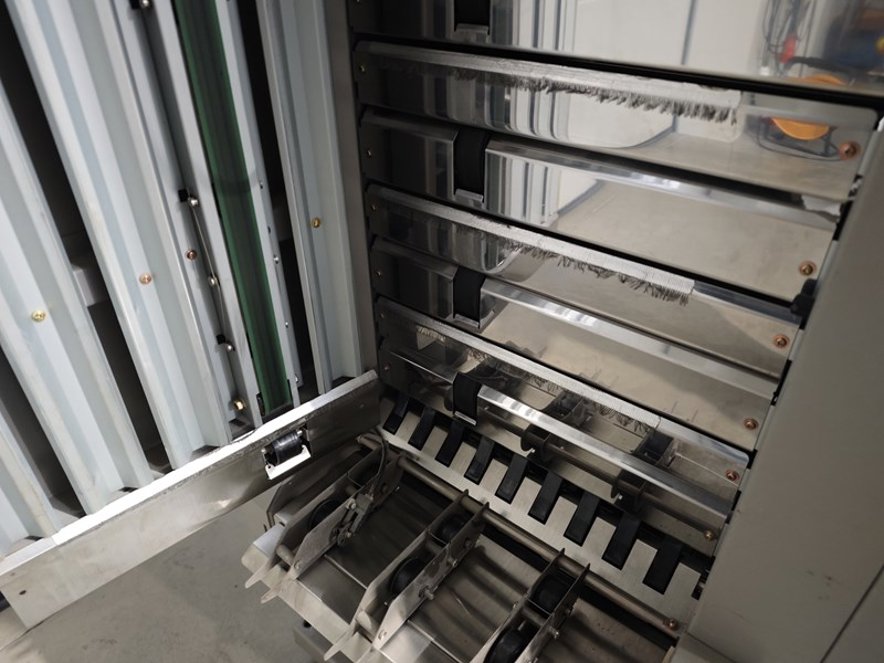

- bins: 10.
- error avoidance: misfeed-,doublefeed- and jamming control.
- saveable jobs: 9 memories for repeat orders.
- extensibility: up to 6 collators (60 bins).
.
.
programs:.
- doublecycle (nonstop-work).
- inject (simply and doubly).
- booklet making program.
- block program.
- selective collating.
.
- sheet size: max. 500x350mm; min. 148x120mm.
- paper weight: 40-250g/sqm.
.
- production speed: max. 9.500 cycles/h.
.
- loading height: 55mm/ bin.
.
- power: 230V; 50/60Hz - 1,86kW.
- dimension: 842x652x1.961mm.
- weight: each 310kg.
.
- extra function Horizon VAC 100c:.
collating to both sides.
collator usable separately...
The Horizon VAC-100 air-suction collator is a high-performance gathering and collating machine designed for efficient document assembly in print finishing environments. Part of the Horizon product line, this model excels in precision collating with advanced air-suction technology, ensuring reliable sheet handling and error-free operation. Key features include misfeed, double-feed, and jamming control, along with programmable job memories for repeat orders. With a production speed of up to 9,500 cycles per hour and support for sheet sizes ranging from 148x120mm to 500x350mm, the VAC-100 is ideal for high-volume collating tasks, booklet making, and selective collating applications. Its modular design allows for expansion up to 60 bins, making it a versatile solution for commercial printers, in-plant print shops, and binderies.
Key Technical Aspects:
Dimensions and Specifications : The Horizon VAC-100 measures 842x652x1,961mm (WxDxH) and weighs 310kg per unit. It operates on 230V power at 50/60Hz with a power consumption of 1.86kW. The machine supports up to 10 bins per unit, expandable to 60 bins (6 collators), with a loading height of 55mm per bin. Production speed reaches a maximum of 9,500 cycles per hour.
Paper Handling : The VAC-100 handles sheet sizes from 148x120mm (minimum) to 500x350mm (maximum) with a paper weight range of 40-250 gsm. It includes advanced error detection for misfeeds, double feeds, and jams, along with programmable job memories for repeat orders. Specialized programs include double-cycle (nonstop work), inject (single/double), booklet making, block program, and selective collating. The machine supports collating to both sides and can be used as a standalone collator.
