Horizon - MC 80
Technical Specifications
| Year | 0 |
| Machine Condition | In Stock |
Demonstration
Machine Description

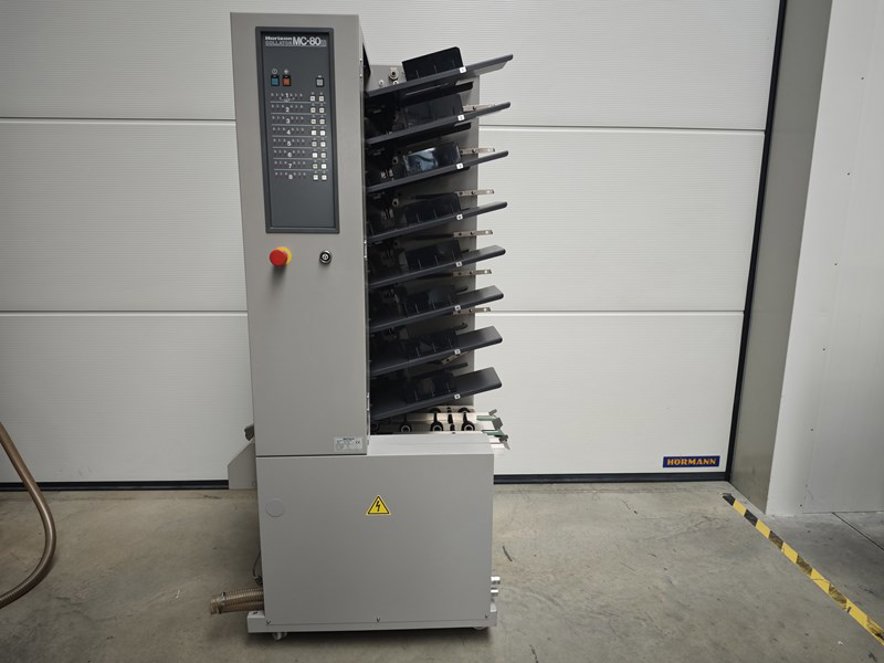

Horizon MC-80m Collator, Used.
.
The Horizon MC-80m is a proven and cost-effective collator known for its reliability and ease of use. As an older model, it offers an economical solution for print shops and binderies looking for solid performance at an attractive price..
.
.
Key Features:.
- Modular design: Expandable and compatible with other Horizon systems.

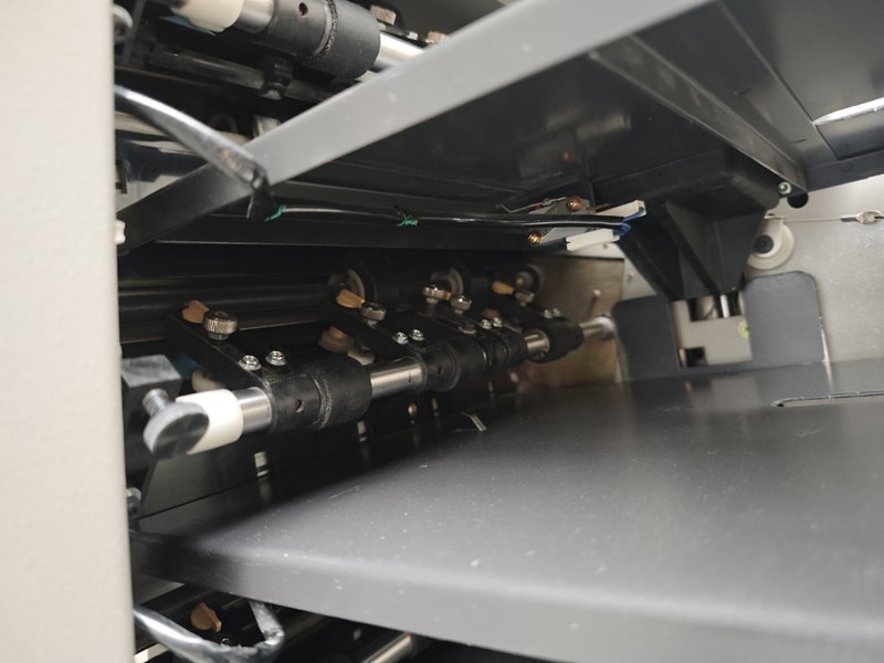

- Vacuum feeding for precise and reliable sheet feeding.

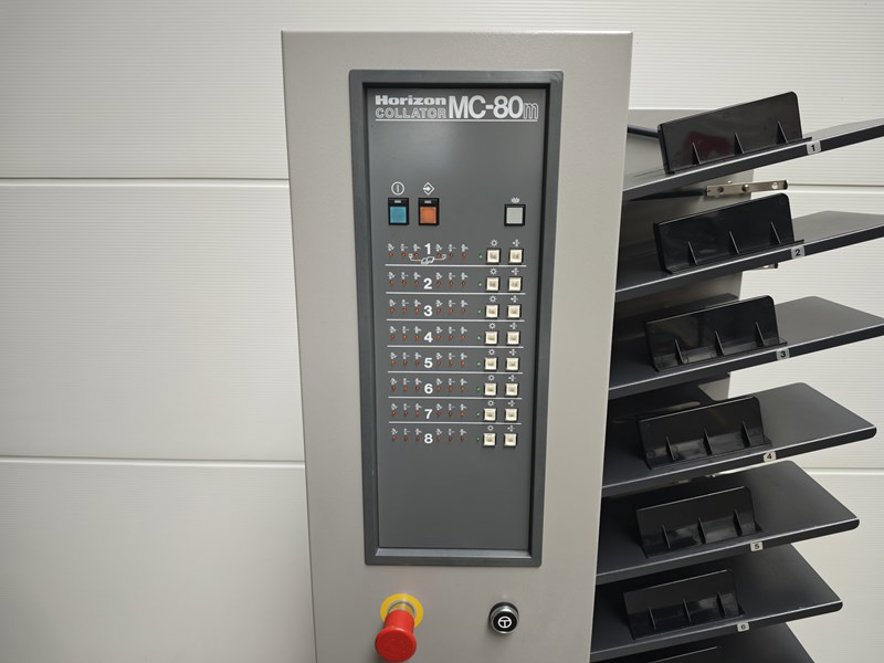

- User-friendly control panel for easy setup and operation.
- Integrated double sheet detection to prevent errors.
- Automatic error sheet detection and ejection for uninterrupted production.
- Compatible with various paper qualities and formats.
.
.
Technical Specifications:.
- Station capacity: 8 stations.
- Max. sheet size: 350 x 500 mm.
- Min. sheet size: 148 x 210 mm.
- Paper weight: 52 - 300 g/m².
- Stack height per station: up to 80 mm.
- Production speed: up to 8,000 sets per hour.
- Power supply: 230 V, 50/60 Hz.
- Dimensions (L x W x H): approx. 920 x 750 x 1960 mm.
- Weight: approx. 400 kg...
The Horizon MC-80m is a reliable and cost-effective collator designed for gathering and collating tasks in print shops and binderies. Known for its modular design and ease of use, this machine offers expandable capabilities and seamless integration with other Horizon systems. Key features include vacuum feeding for precise sheet handling, user-friendly controls, double sheet detection, and automatic error sheet ejection, ensuring uninterrupted production. Ideal for businesses seeking an economical yet high-performance solution, the MC-80m supports a wide range of paper qualities and formats, making it suitable for various collating applications.
Key Technical Aspects:
Dimensions and Specifications : The Horizon MC-80m measures approximately 920 x 750 x 1960 mm (L x W x H) and weighs around 400 kg. It operates on a 230 V, 50/60 Hz power supply and achieves a production speed of up to 8,000 sets per hour. The machine features 8 stations, each with a stack height capacity of up to 80 mm.
Paper Handling : The MC-80m accommodates a wide range of paper sizes, from a minimum of 148 x 210 mm to a maximum of 350 x 500 mm. It supports paper weights between 52 - 300 g/m² and utilizes vacuum feeding for precise and reliable sheet handling. Integrated double sheet detection and automatic error sheet ejection ensure smooth and error-free operation.
Horizon - MC 80
Price On Request
