MAN - Rotoman S
Technical Specifications
| Year | 2003 |
| Machine Condition | In Stock |
Machine Description

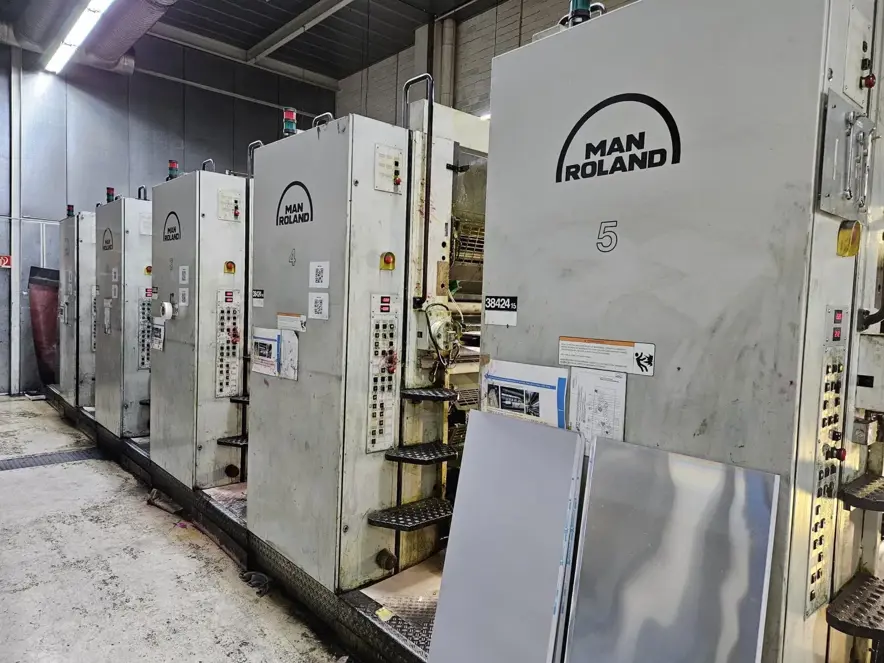

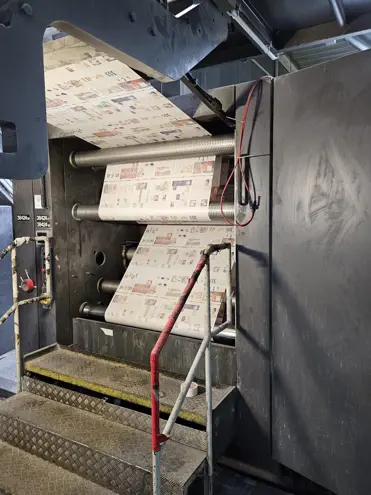

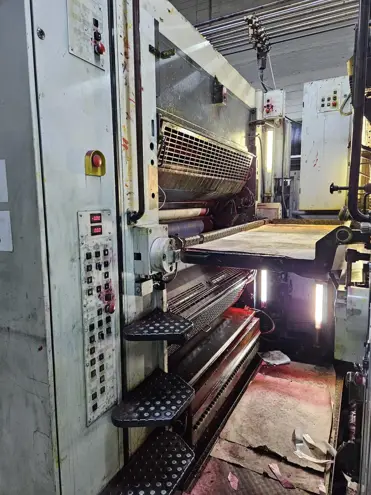

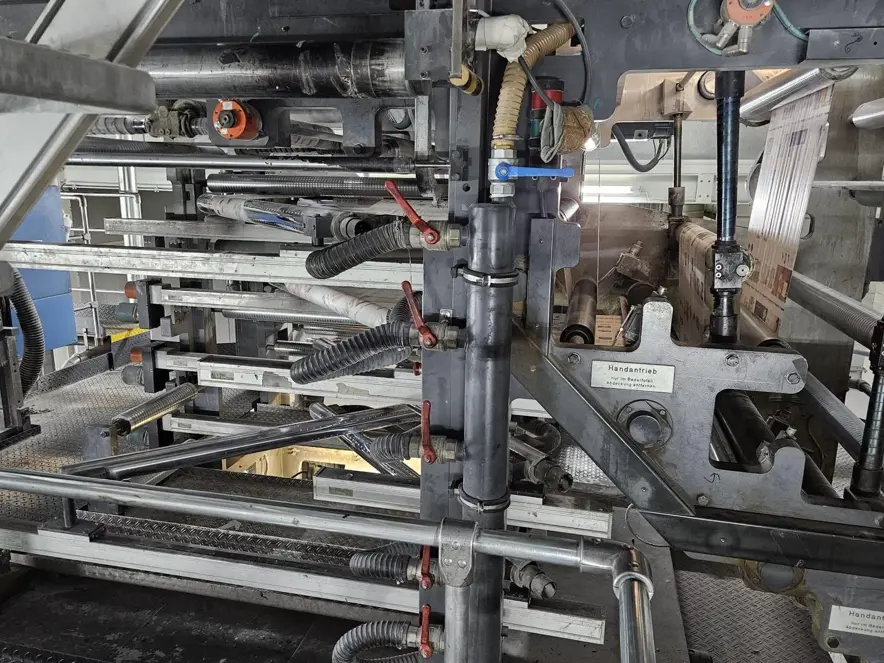

5 Double printing units.
(with Sleeve-Technologie Coatig possible).
24 page Size A/4 web.
Year: 2003.
Cut-off: 546 mm.
Web width: 1460 mm.
Speed: 45.000 rev./h.

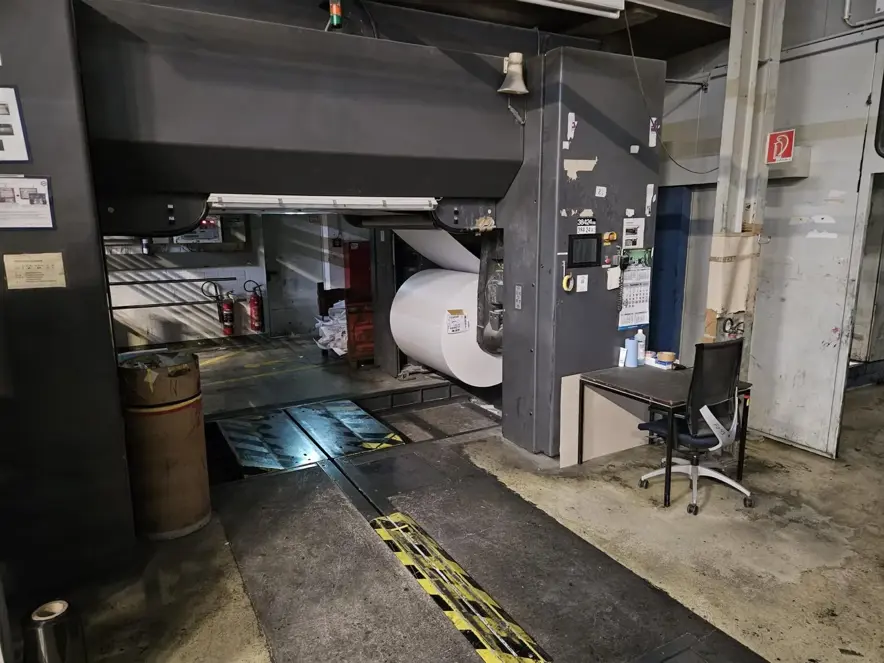

Configuration: 1 CONTIWEB Spliicer CS-14-146 R.
5 Double Printing Units.
- Plate size: 572 X 1470 X 0,3 mm.
- Plate cylinder gap 0,3 mm.

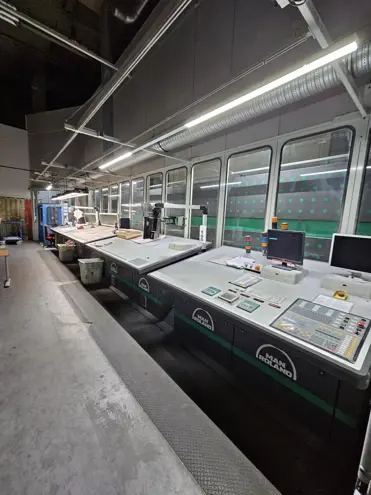

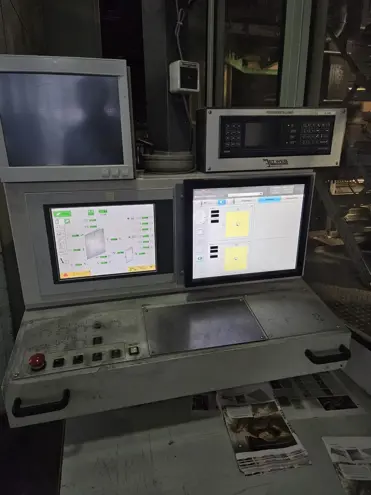

- PECOM Press control.
- PPL semi automatic plate changer.
- motorically adjustable circumferential and side registers.
- BALDWIN Blanket washing device.
- hydromix dampening unit.
- TECHNOTRANS Gamma.a Refrigeration Unit.
1 web catching device.
1 paper guiding system with rollers and paper break sensors.
1 ARM web aligner.
1 CONTIWEB Ecocool E 149-1460.

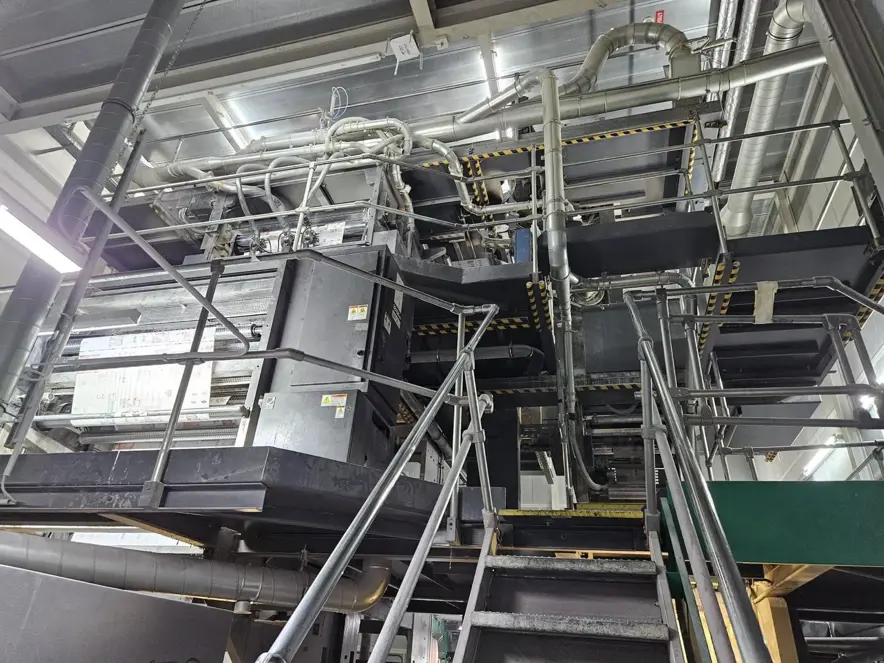

1 MANROLAND Chill unit with 5 chill rollers.
1 QTI Color register control.
1 QTI Cut-off register control.
1 Planatol-CombiJet longitudinal gluing and moistering device.
1 WEKO Silicon applicator.

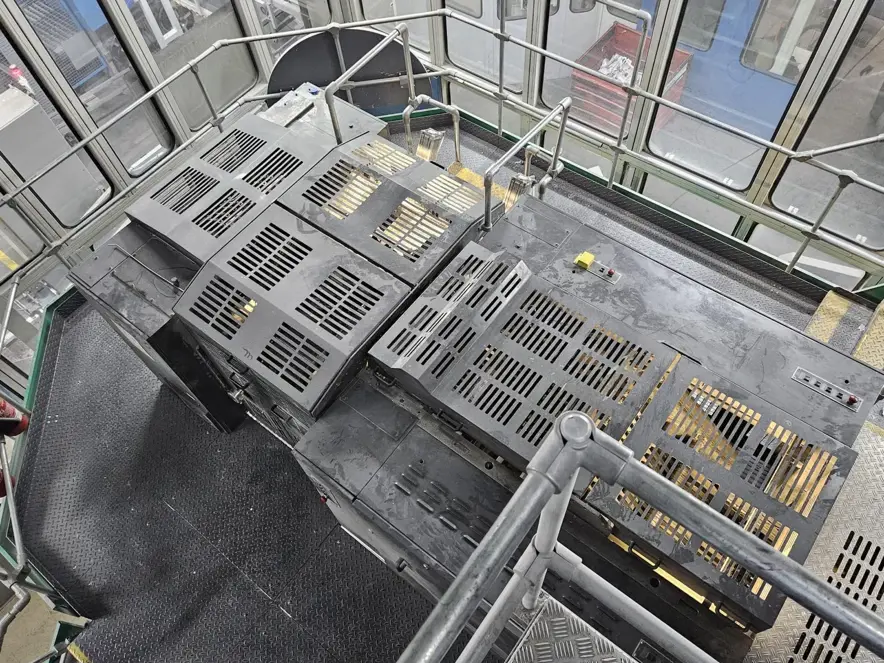

1 MAN Folder super structure.
2 Pre-folding unit for 4 and 6 pages.
1 Cutter modul .

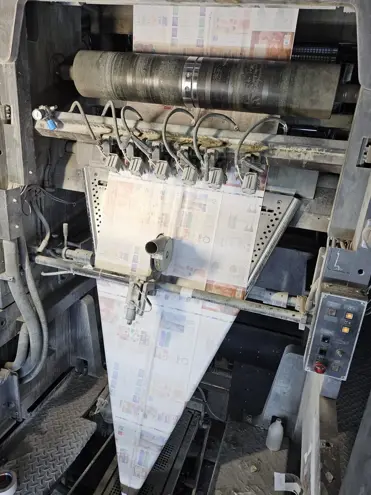

1 Former Fold.

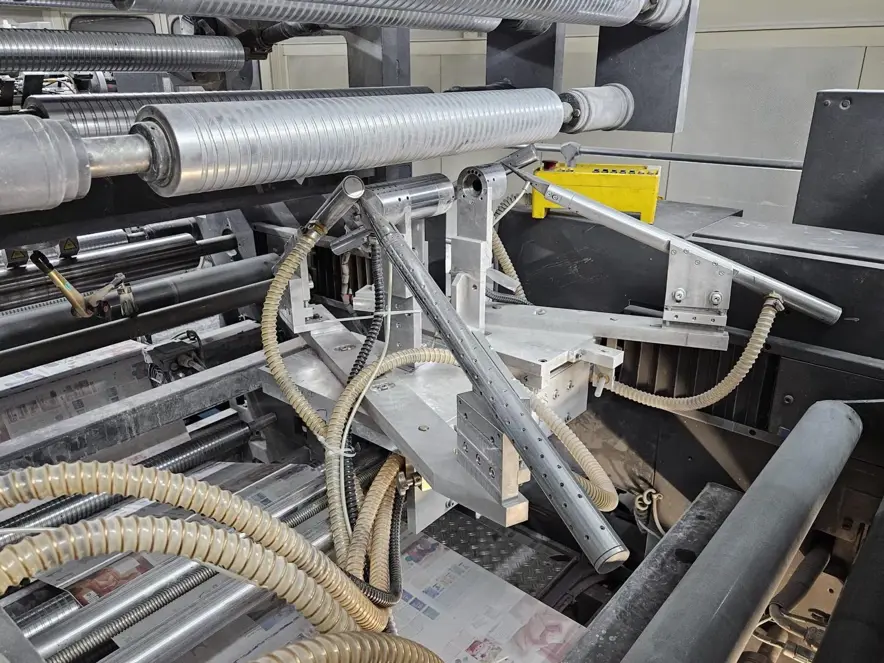

4 Angle bars for 3 ribbons.
1 MAN Folder PFC-2-5-2 BT with 1 X A/4 and 1 A/3 delivery.
Magacine-DELTA and Double parallel Fold.
1/2 web possible.
3/4 web possible.
1 Stacker bundler.
2 Rotaschneider.
1 RIMA Stacker...
This MAN Rotoman S web offset press is a high-capacity production machine designed for large-scale printing of 24-page A4-sized web formats, leveraging advanced printing and finishing technologies to deliver precision, efficiency, and versatility. Positioned under the Web Offset Presses category, it excels in commercial printing applications, including packaging, direct mail, and high-volume marketing materials where consistent quality and speed are critical.
Key Technical Aspects:
Dimensions and Specifications: Year: 2003, Cut-off: 546 mm, Web width: 1460 mm, Speed: 45,000 rev./h.
Paper Handling: 1 web catching device, 1 paper guiding system with rollers and paper break sensors, 1 ARM web aligner, 1 MANROLAND Chill unit with 5 chill rollers.
Printing Unit: 5 Double printing units with Sleeve-Technologie coating capability, CONTIWEB Spliicer CS-14-146 R, QTI Color register control, QTI Cut-off register control.
Ink System: Hydromix dampening unit, TECHNOTRANS Gamma.a Refrigeration Unit, WEKO Silicon applicator.
Plate Cylinder: Plate size: 572 × 1470 × 0.3 mm, Plate cylinder gap: 0.3 mm, PECOM Press control, PPL semi-automatic plate changer, motorically adjustable circumferential and side registers, BALDWIN Blanket washing device.
MAN - Rotoman S
Price On Request
