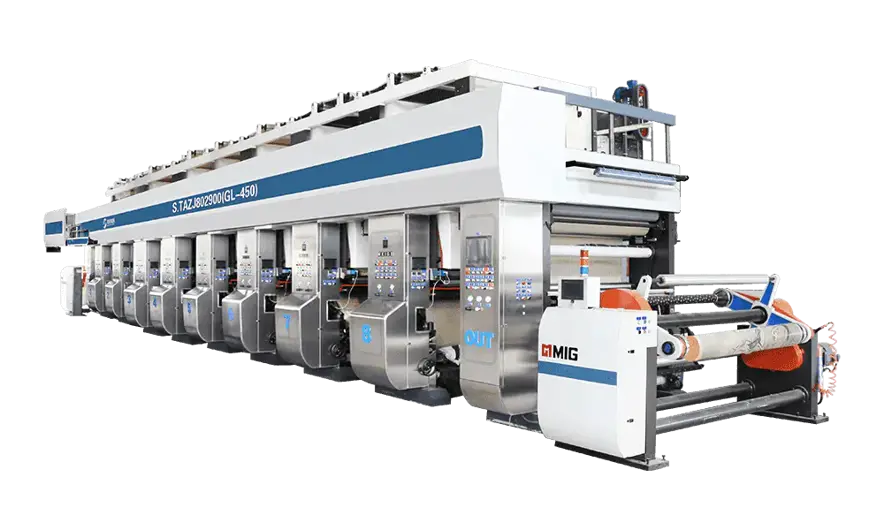

ZHEJIANG MEIGE MACHINERY TECHNOLOGY CO., LTD. - S.TAZJ802900 (GL-450)
Machine Description
Multi unit high-speed transfer paper gravure printing. High printing speed and large output, suitable for transfer printing production technology. Suitable for oil-based and water-based ink printing. Automatic retraction, cutting, and material replacement, continuous printing. Computer overprinting, observing printing quality in still images....
```html
This machine is a high-speed transfer gravure printing system designed for multi-unit transfer printing applications, offering exceptional efficiency and versatility. Specialized for producing transfer prints with oil-based and water-based inks, it excels in continuous automated operations, including retraction, cutting, and material replacement, while ensuring precise overprinting and quality control.
Key Technical Aspects:
Dimensions and Specifications: The machine features a power capacity of 115 kW, with an overall drying energy capacity of 63 kW (600,000 kcal gas). Its overall dimensions are 19,700 mm (L) × 5,100 mm (W) × 3,450 mm (H), weighing approximately 48 metric tons.
Printing Unit: The printing unit operates at a design speed of 150 m/min, with print speeds ranging from 15 m/min to 150 m/min. The print range spans 2,850 mm to 2,900 mm, utilizing a plate cylinder diameter between 250 mm and 450 mm.
Ink System: The machine supports both oil-based and water-based ink systems, enabling flexibility in material compatibility.
Technical Specifications
| Design speed | 150m/min |
| Print speed | 15-150m/min |
| Cylinder dia | ?250—?450mm |
| Print range | 2850—2900mm |
| Power capacitance of the entire machine | 115kw |
| Drying energy capacity | Verall: 63kw Gas: 800000 kcal |
| Overall dimensions (L×W×H) | 19700mm×5100mm×3450mm |
| Gross weight | Around 48T |
Features
| Multi-Unit Textile Transfer Paper (Film) Gravure Printing Machine for Engineered Wood Decorative Paper |
ZHEJIANG MEIGE MACHINERY TECHNOLOGY CO., LTD. - S.TAZJ802900 (GL-450)
Price On Request
