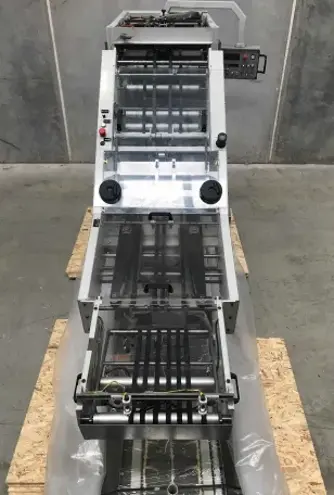

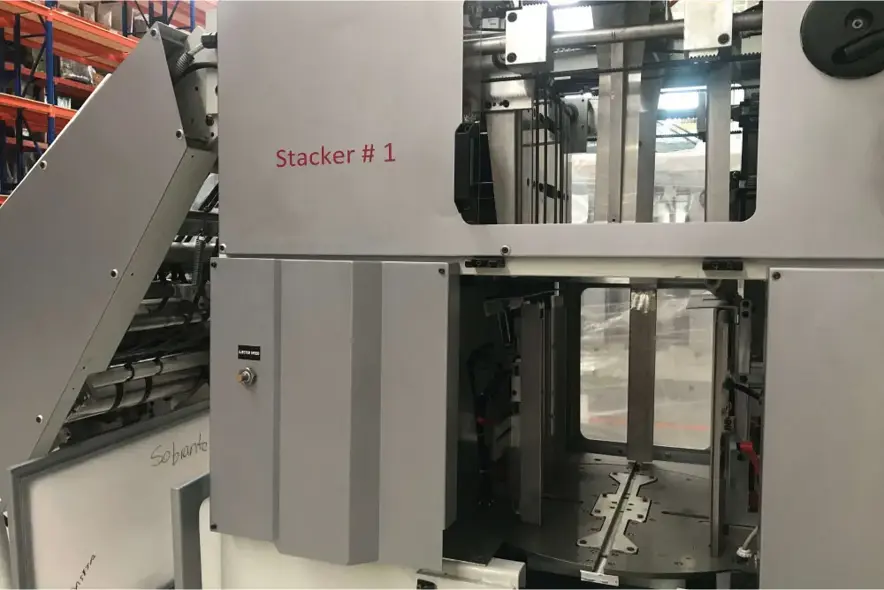

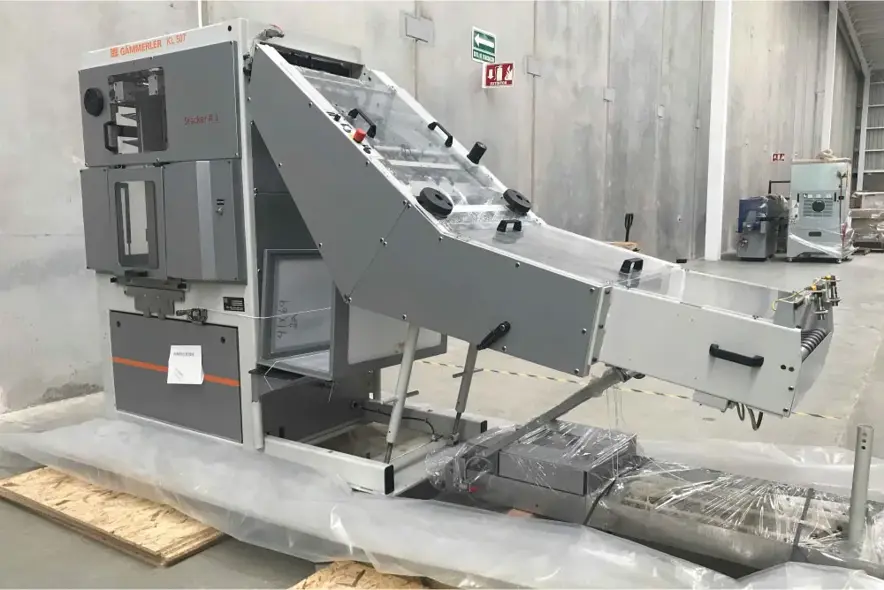

Gammerler - KL507
Machine Description
KL507 Compensating Stacker with extended low in-feed, for all uses in general standard applications on newspaper and/or commercial presses, compatible in all standard press speeds. Three-Stage stacking technology for best quality packages. Robust steel welded frame. Quality machine designed by Gammerler in Germany. The KL507 is a very strong machine, very suitable for commercial & newspaper printing. It is the most build stacker by Gammerler. It has a basic control panel, but absolutely low cost in spare parts compared to modern touch panels, all necessary functions for a very good quality bundle formation are incorporated.
Features
Laser Counter for precise signature counting
Extended In feed belt section to reach low delivery folder-belts
Easy moving on castors
Enhanced Stand Alone Delivery Table, switchable left or right position
All new Frequency Convertors
All New Termal Magnetic Circuit Breakers
New Miniature Circuit Breakers
New Protective Contacts
New Cabinet Fan
New 24V Power Supply
Control desk on swing arm, easy to operate and for standard industry replacement parts All new Protective Acrylic Guards
Gammerler’s 12 month standard parts warranty as on new machines
This machine was tested with paper run after completing rebuild process
KL 507 Technical Specifications
Cycle time *) = 2 sec.
Pagination 4 – 96
A 105 – 330 mm (4″ – 13″) Cut-off
B 140 – 500 mm (5.5″ – 19.7″) Width
D max.560 mm (22″) Diagonal
Layer height max. 250 mm (9.8″)
Bundle height max. 400 mm (15.7″)
Voltage: Standard 220V, 3 phase
Rebuilding Process Steps
Description of the basics:
Stripping Down to bear welded steel frame
Complete degreasing and detailed cleaning
Refresh of Paint on welded steel frame using spray paint
Complete New! Powder Coating Paint on all guards
Identifying of missing parts and
replacement
Identifying of parts needing attention
Worn parts replaced
Electrical parts checked, serviced and/or replaced
All new bearings
All new belts
All motors serviced...
The Gammerler KL507 Compensating Stacker is a robust, high-performance machine designed for general standard applications in commercial and newspaper printing environments. Built by Gammerler in Germany, it excels in package quality through its advanced three-stage stacking technology and is optimized for compatibility across all standard press speeds. The machine balances strength with cost-efficiency, featuring a basic control panel and minimal spare-part expenses compared to modern systems, while retaining all essential functions for superior bundle formation.
Key Technical Aspects:
Dimensions and Specifications: Cycle time: 2 seconds; Pagination: 4–96; Cut-off: 105–330 mm (4″–13″); Width: 140–500 mm (5.5″–19.7″); Diagonal: max. 560 mm (22″); Layer height: max. 250 mm (9.8″); Bundle height: max. 400 mm (15.7″). Voltage: Standard 220V, 3-phase.
Special Features
12 months standard guarantee
Authorized Distributor of the German Headquarters
Build and Refurbished by Gammerler
Easy operation
Low Maintenance cost
Satisfied Customers Worldwide
Technical Specifications
| Year | 2005 |
| Machine Condition | Rebuilt |
Gammerler - KL507
Price On Request
Mexico City, CDMX, Mexico
