Key Technical Aspects:

Dimensions and Specifications : The Oliver 272 supports a maximum paper size of 52 x 72 cm (20.5 x 28.3 inches) with a maximum printing size of 50.8 x 71 cm. It accommodates substrate thicknesses ranging from 0.04 mm to 0.6 mm and operates at speeds up to 12,000 sheets per hour. The press features high pile delivery and is equipped with electronic double sheet detection for enhanced operational reliability.

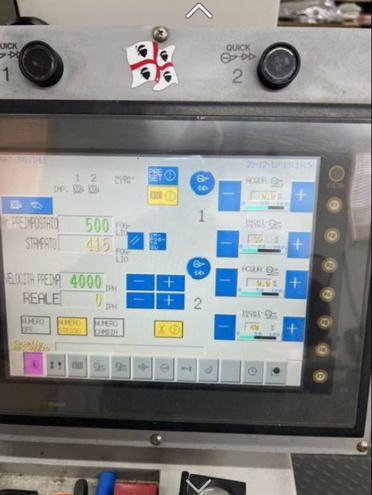

Paper Handling : The machine includes automatic size and thickness presets via the SAS (Sakurai Auto Set) touch screen console, ensuring quick and accurate setup. It also features high pile delivery for extended production runs.

Printing Unit : The Oliver 272 is configured as a 2-color sheet-fed offset press with a maximum speed of 12,000 sheets per hour. It utilizes the Olivermatic continuous alcohol dampening system, often paired with Technotrans cooling and recirculation for consistent print quality. The press also includes automatic ink roller and blanket wash-up devices for efficient maintenance.

Ink System : The press is equipped with the SCC (Sakurai Colour Console) for remote ink and register control, allowing precise adjustments during production. An integrated powder spray system (typically Grafix or similar digital units) is included to prevent setoff and ensure clean output.

Plate Cylinder : The Oliver 272 features the S-APC (Semi-Automatic Plate Changer) for quick and efficient plate changes, reducing downtime between jobs.
