KBA - COMPACTA C 215

Machine Description

5 Printing Units Blanket to Blanket
Year: 2002
Machine Nr.: 400180
Cut-Off: 620 mm
Web with max.: 1000 mm
Web width min.: 420 mm
Printing area max.: 614 X 995 mm
Paper Grammage: 30 - 130 g/m²
Speed: 50.000 RPM
Direction: Left to Right

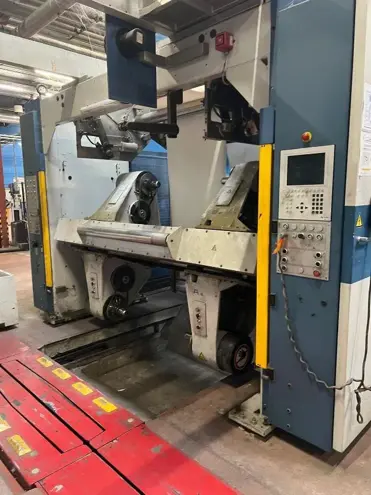

Equipment: 1 KBA pastostar RC Reelstand
max. reel diameter 1270 mm
Patros auto reel loading
1 KBA EZW 1000 Infeed
E&L Web guid

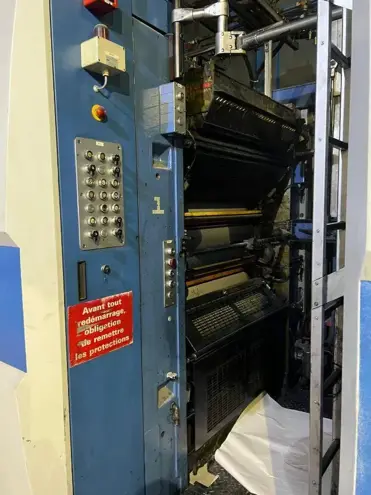

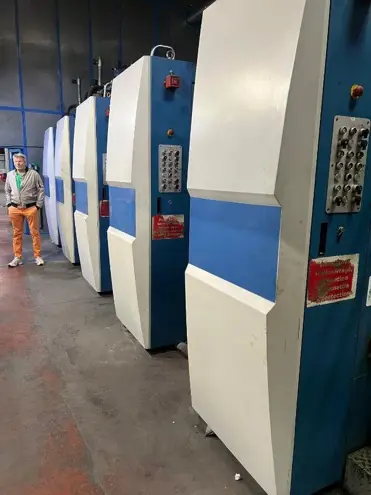

5 KBA C 215 Printing Units
Direct Drive
Minigap Technology
Fully automatic Plate change on Unit 1 & 2 (flying plate change capability)
Semi automatic Plate change on Unit 3,4 &5
Oxy-Dry Kombi Blanket wash
Auto ink supply

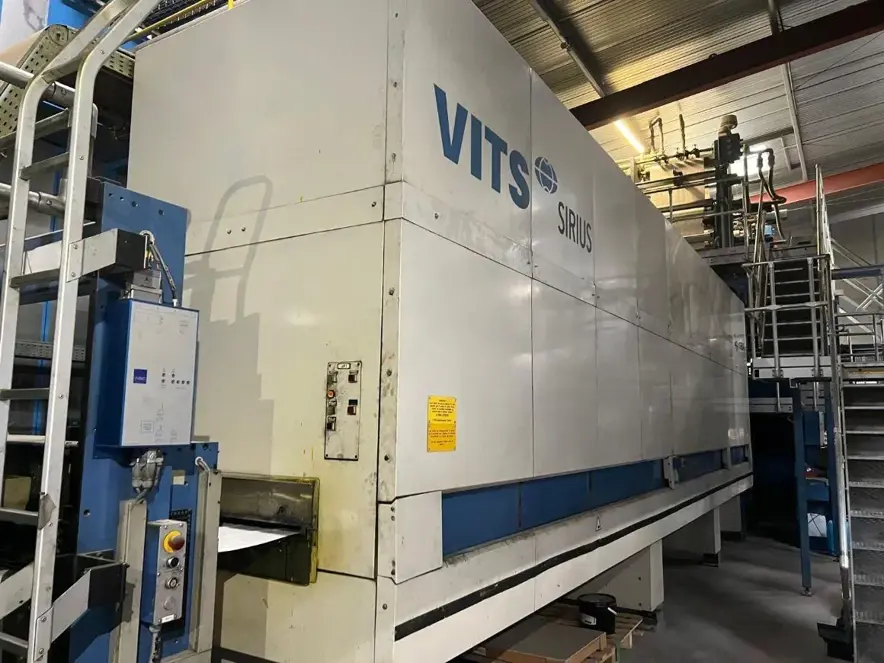

1 VITS OTS Sirius Hot Air Dryer
integrated Afterburner
1 KBA Web Catcher

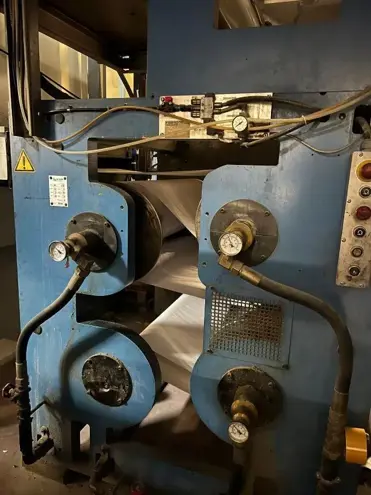

1 KBA KWS 3 Roll Chill Unit
1 WEKO WFG 2.4 Silicon applicator
1 E&L Web Guide
1 KBA Folder Upper Structure
Slitting Unit with two knives
Two pairs of air loaded angle bars
Two Compensators
Two air loaded Formers
1 KBA 16 page Pinless Folder
production: A/3-A/4- double parallel and DELTA
1 KBA 8 page stacked Folder
2 X 8 page A/4

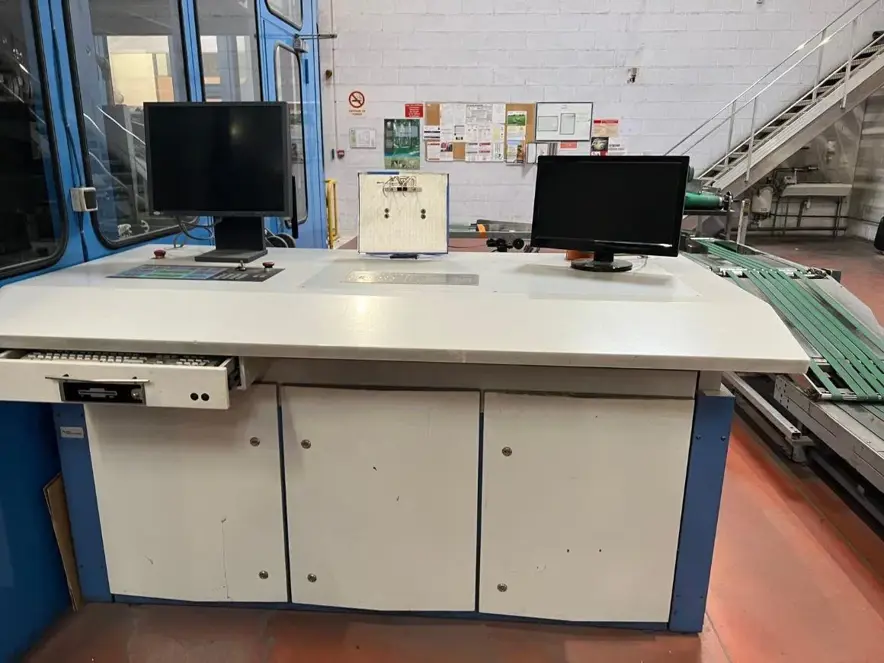

1 Remote Folder Console
1 Planatol Gluing System
1 Grafikontrol CR20 automatic Color Register Control
1 Grafikontrol CR8 automatic Ribbon- Cut-off Register
1 GRAFIkontrol Densiweb - Automatic Closed Loop Color Control
1 Technitrans Delta d 160W Refrigaration/Recirculation for Dampening

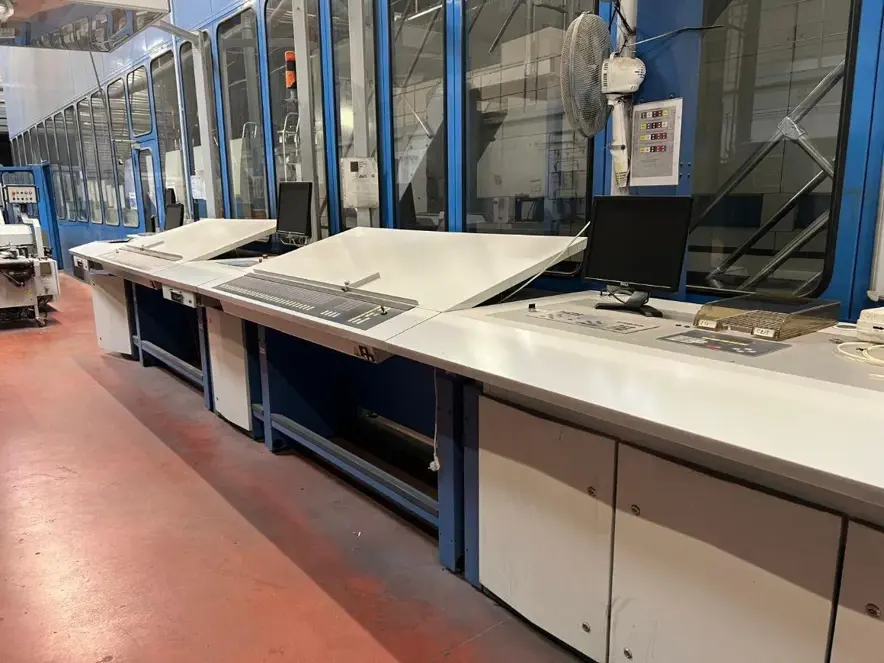

1 KBA Main Control Desk
2 KBA Color Desks
1 KBA Drivetronic Drive and Control System
Rexroth variator replaced in 2021
KBA Opera
1 Sulzrer Central Chilling System
1 Berth AKA 200M Plate Bender
1 AKA 200S Blanket Bender
1 Plate punch
1 Set of Manuals and Drawings
1 All C215 Spare Part & Rollers
1 Noise Enclosure
1 Small Forklift Truck with reel Clamps (STILL R70-30T
Post Press

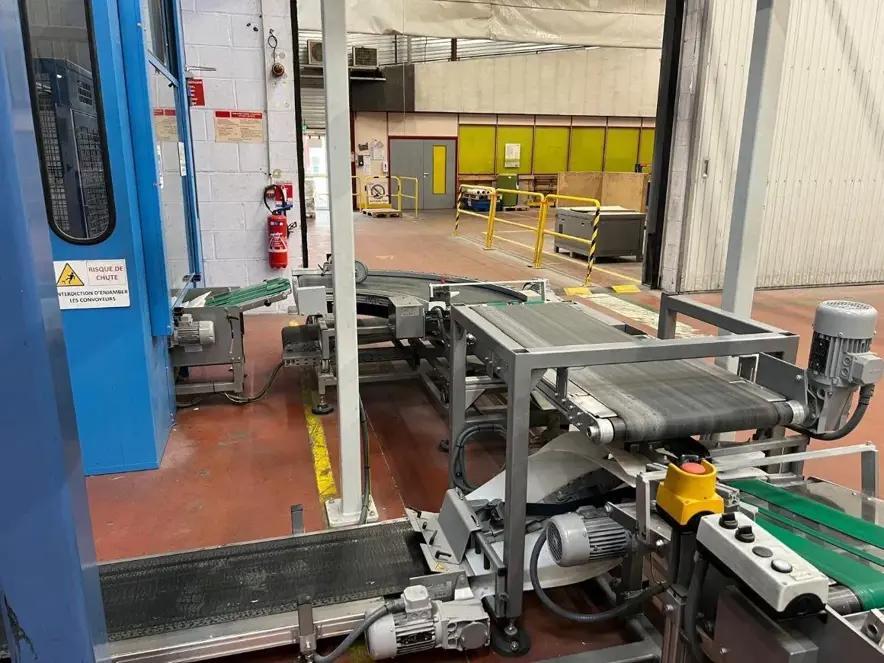

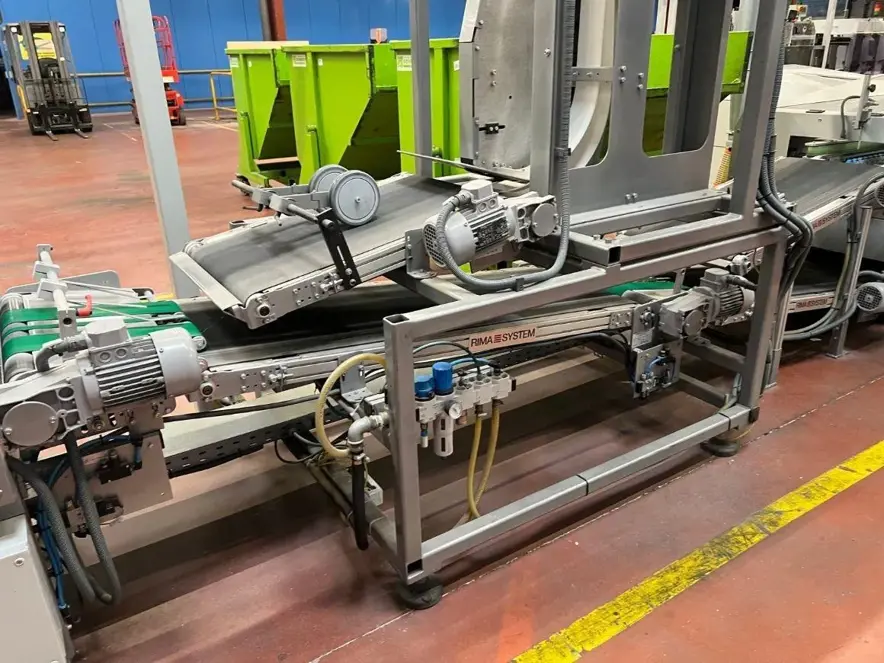

Equipment: 1 Exit Conveyors
1 RECMI Combined Bump/Flow Turn
1 Waste Copy Conveyor
1 Rotaschneider Rotary Trimmers
1 Rotoschneider Bump Turn
1 Gämmerler KL 540 Comensating Stacker
1 RECMI HC610 Log Stacker and Palletizer
2 Set of new rollers
2 Set of used rollers
many new spare parts
Condition: Excellent (8)
Available: Immediately...
