Key Technical Aspects:

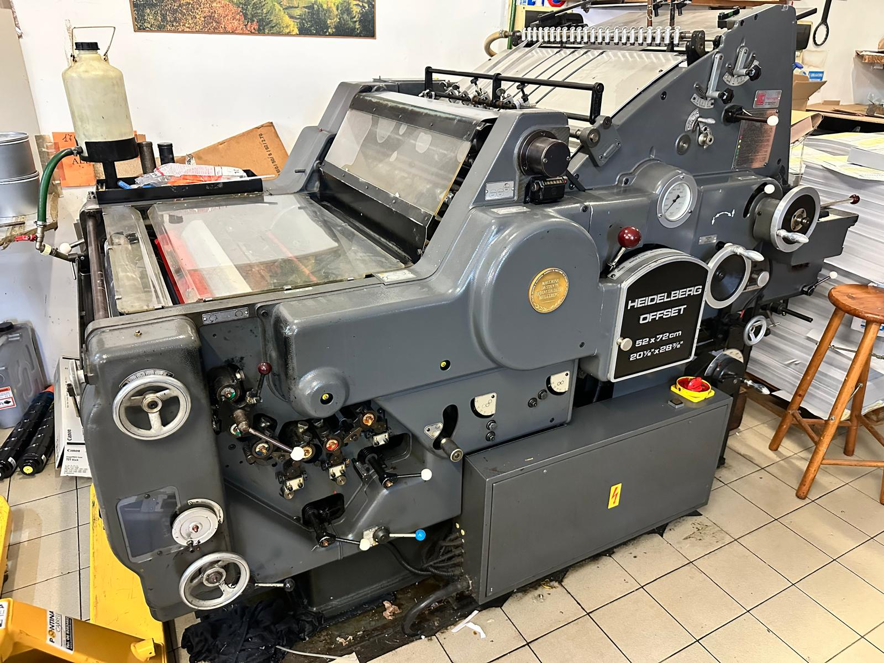

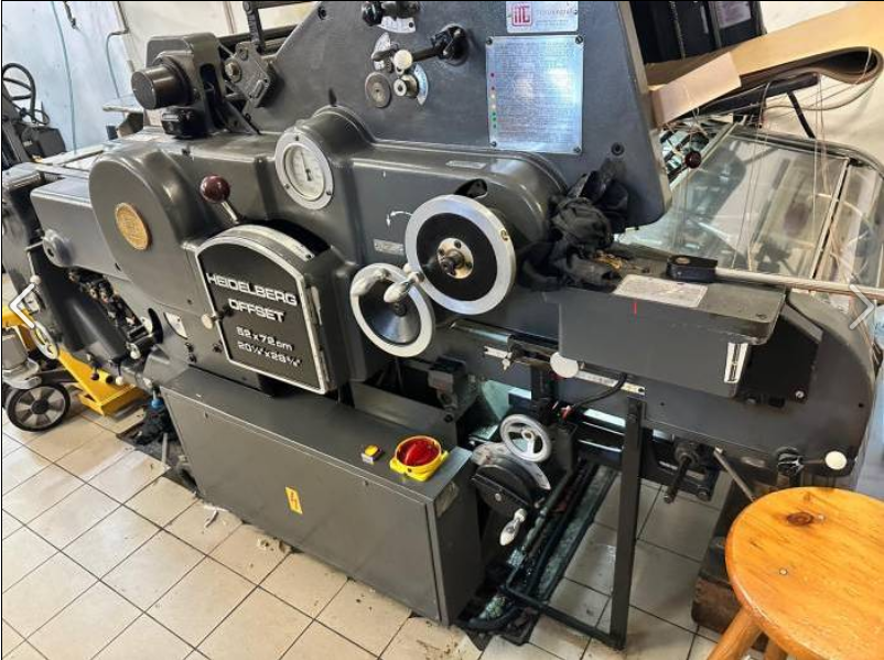

Dimensions and Specifications : The Heidelberg KORS has a compact footprint with machine dimensions of approximately 2.25 m (L) x 1.55 m (W) x 1.55 m (H) and a total weight of 2,770 kg. It operates with a power consumption of 4–4.2 kW and supports a maximum printing speed of up to 6,000 sheets per hour.

Paper Handling : The press accommodates a maximum paper size of 52 x 72 cm (20.5 x 28.3 inches) and a minimum paper size of 16 x 24 cm. It features an automatic sheet feeder with a mechanical gripper transport system and a high pile delivery system, with an optional powder spray for improved sheet handling. Substrates include paper, lightweight cardboard, labels, and commercial print stock.

Printing Unit : The KORS utilizes a single-color sheetfed offset lithographic printing system with a maximum printing area of 51 x 71 cm. It includes mechanical side lays and gripper alignment for precise sheet registration, ensuring accurate print positioning.

Ink System : The machine is equipped with oscillating ink distribution rollers and a conventional dampening system, compatible with optional alcohol dampening. This setup ensures consistent ink transfer and print quality across various substrates.

Plate Cylinder : The plate size measures 612 x 724 mm with a thickness range of 0.15–0.50 mm. The blanket size is 585 x 747 mm with a standard thickness of 1.9 mm, providing reliable image transfer during printing.
