Sample Press
17 views

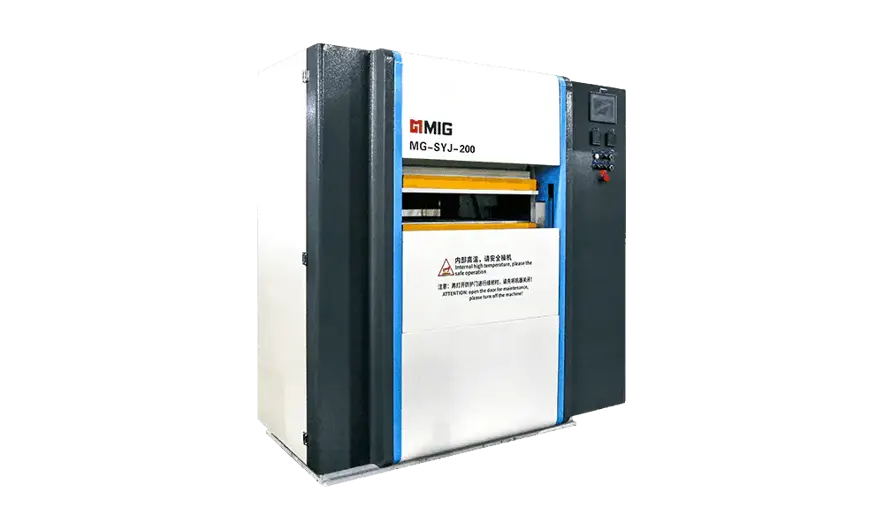

ZHEJIANG MEIGE MACHINERY TECHNOLOGY CO., LTD. - MG-SYJ200T/300T
Machine Description
This machine is mainly used for testing high-temperature lamination of artificial boards after printing. Select the effect of compression test samples based on the size of the workbench. This model is designed with electric heating tube and thermal oil heating. Equipped with pressure parameters per square meter of the large press, capable of fully detecting the printing effect of the printing machine....
```html
The Sample Press is a high-performance industrial lamination machine designed for evaluating and testing the high-temperature compression properties of printed artificial boards. It is tailored for quality assurance in printing and laminating workflows, ensuring optimal performance by assessing the structural integrity of materials under controlled thermal and mechanical conditions. This model supports two configurations—one with a 600×600 mm workbench and another with a 700×700 mm workbench—allowing for versatile applications across different production scales.
Key Technical Aspects:
Dimensions and Specifications: Two variants are available: 600×600 mm (2000 kN max pressure, 200 mm lifting stroke, 200 mm cylinder diameter) and 700×700 mm (3000 kN max pressure, 280 mm cylinder diameter). Both feature a maximum temperature of 300°C, pressing times of 5–100 seconds, and opening/closing cycles under 8 seconds.
Printing Unit: Equipped with electric heating tubes and thermal oil heating for precise thermal lamination testing, enabling full-scale evaluation of printing machine outputs.
Features
| Electric heating sample press |
ZHEJIANG MEIGE MACHINERY TECHNOLOGY CO., LTD. - MG-SYJ200T/300T
Price On Request
ZM
ZHEJIANG MEIGE MACHINERY TECHNOLOGY CO., LTD.
- location_on
China
- calendar_today
Member since 2026
Sample Press Model Comparison – Specifications & Capacity
| Specification | Model MG-SYJ200T/300T | Model MG-SYJ200T(Electrothermal) | Model MG-SYJ300T(Oil heat) |
|---|---|---|---|
| Workbench size | - | 600×600mm | 700×700mm |
| Workbench lifting stroke | - | 200mm | 200mm |
| Maximum pressure | - | 2000KN | 3000KN |
| Cylinder diameter | - | - | Ф280mm |
| Test plate thickness | - | 3-50mm | 3-50mm |
| Pressing time | - | 5-100s | 5-100s |
| Opening and closing time | - | ≤8s | ≤8s |
| Maximum temperature | - | 300℃ | 300℃ |
| Main motor power | - | 9kw | 5kw |
| Machine weight | - | 2T | 3T |
