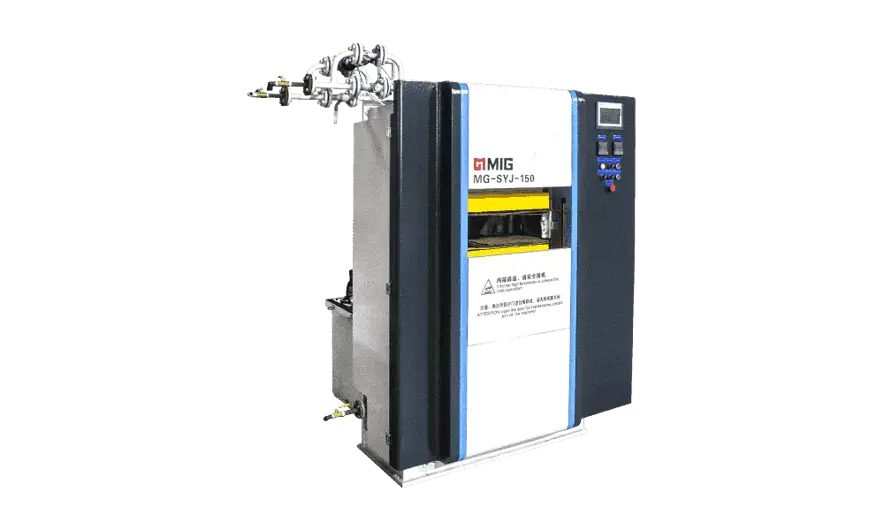

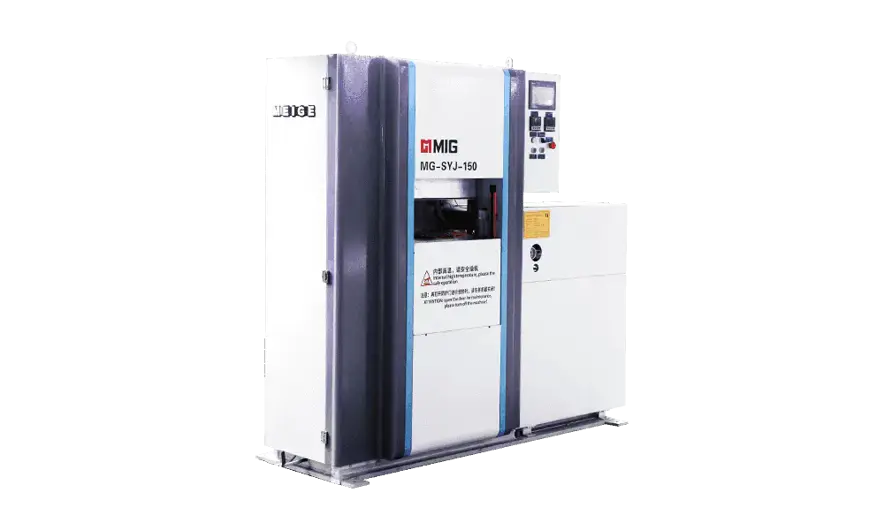

ZHEJIANG MEIGE MACHINERY TECHNOLOGY CO., LTD. - MG-SYJ150T(Electrothermal)
Machine Description
This machine is mainly used for testing high-temperature lamination of artificial boards after printing. Select the effect of compression test samples based on the size of the workbench. This model is designed with electric heating tube and thermal oil heating. Equipped with pressure parameters per square meter of the large press, capable of fully detecting the printing effect of the printing machine....
```html
This MG-SYJ150T(Electrothermal) high-temperature lamination press from ZHEJIANG MEIGE MACHINERY TECHNOLOGY CO., LTD. is designed for evaluating and optimizing the lamination quality of printed artificial boards. It integrates electric heating and thermal oil heating to achieve precise temperature control, ensuring accurate detection of printing effects across large workbenches. Ideal for quality assurance in printing and laminating workflows, this machine delivers consistent performance with rapid cycle times and robust structural integrity.
Key Technical Aspects:
Dimensions and Specifications: Workbench size: 500×500 mm; Lifting stroke: 200 mm; Maximum pressure: 1500 kN; Cylinder diameter: Φ200 mm; Test plate thickness: 3–50 mm; Pressing time: 5–100 s; Opening/closing time: ≤8 s; Maximum temperature: 300 °C; Motor power: 9 kW; Machine weight: 2 T.
Technical Specifications
| Workbench size | 500×500mm |
| Workbench lifting stroke | 200mm |
| Maximum pressure | 1500KN |
| Cylinder diameter | Ф200mm |
| Test plate thickness | 3-50mm |
| Pressing time | 5-100s |
| Opening and closing time | ≤8s |
| Maximum temperature | 300℃ |
| Main motor power | 9kw |
| Machine weight | 2T |
Features
| Electric heating/oil heating sample press |
ZHEJIANG MEIGE MACHINERY TECHNOLOGY CO., LTD. - MG-SYJ150T(Electrothermal)
Price On Request
ZM
ZHEJIANG MEIGE MACHINERY TECHNOLOGY CO., LTD.
- location_on
China
- calendar_today
Member since 2026
Sample Press Model Comparison – Specifications & Capacity
| Specification | Model MG-SYJ150T(Electrothermal) | Model MG-SYJ150T(Oil heat) |
|---|---|---|
| Workbench size | 500×500mm | 500×500mm |
| Workbench lifting stroke | 200mm | 200mm |
| Maximum pressure | 1500KN | 1500KN |
| Cylinder diameter | Ф200mm | Ф200mm |
| Test plate thickness | 3-50mm | 3-50mm |
| Pressing time | 5-100s | 5-100s |
| Opening and closing time | ≤8s | ≤8s |
| Maximum temperature | 300℃ | 300℃ |
| Main motor power | 9kw | 9kw |
| Machine weight | 2T | 2T |
