PVC Laminating & Embossing Machinery
17 views
ZHEJIANG MEIGE MACHINERY TECHNOLOGY CO., LTD. - MGFH-1650D-3 PVC
Machine Description

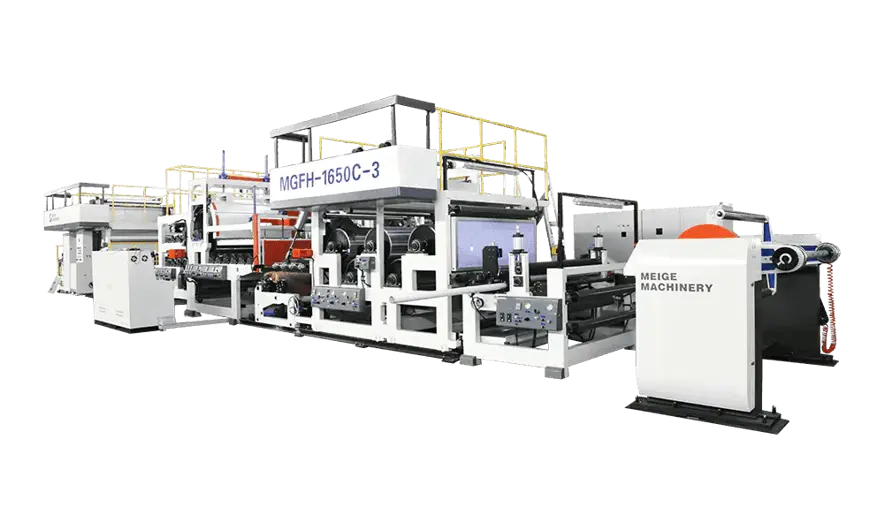

This machine is a three-layer adhesive free composite embossing machine with coating. Large cylinder hot roller multi-layer adhesive free composite embossing, with edge cutting function. Fully variable frequency synchronous control, with a clean white appearance. Synchronous collection, release, cutting, and material replacement without stopping the machine. Equipped with multi-layer adhesive free composite embossing, cooling, edge cutting, and one-time collection. The substrate layer has a front and back coating function....
```html
This machine is a high-performance, three-layer adhesive-free composite embossing and laminating machine designed for industrial applications requiring durable, multi-layered material processing. Ideal for sectors such as packaging, signage, and decorative laminates, it offers advanced features like edge cutting, automated material handling, and high-speed operation to enhance productivity and precision.
Key Technical Aspects:
Dimensions and Specifications: The machine features a robust thermal oil circulation heat source with a maximum power of 140 kW. It supports a maximum material width of 1580 mm and operates at a mechanical speed of 60 m/min. The overall dimensions are 21000 mm (L) × 6500 mm (W) × 3500 mm (H), with an approximate gross weight of 30 tons.
Paper Handling: The machine incorporates a fully automated system for synchronous collection, release, cutting, and material replacement without manual intervention, ensuring continuous operation.
Technical Specifications
| Laminate layers | 3 or 2 layers |
| Max. material width | 1580mm |
| Mechanical speed | 60m/min |
| High temperature heat source | Thermal oil circulation |
| Machine power | 140kw |
| Overall dimensions (L×W×H) | 21000mm×6500mm×3500mm |
| Gross weight | Around 30T |
Features
| 2, 3 Layers (with Coating) Multi-Layer Glueless Composite Embossing Coating Machine for Engineered Wood Decorative Paper |
ZHEJIANG MEIGE MACHINERY TECHNOLOGY CO., LTD. - MGFH-1650D-3 PVC
Price On Request
