Screen - TruePress Jet 520EX Mono
Machine Description
Machine in operation since: 2013.
Reason for sale: Replacement as part of the standardization of the machine park.
Current operating speed: Stable production at 100 m/min.

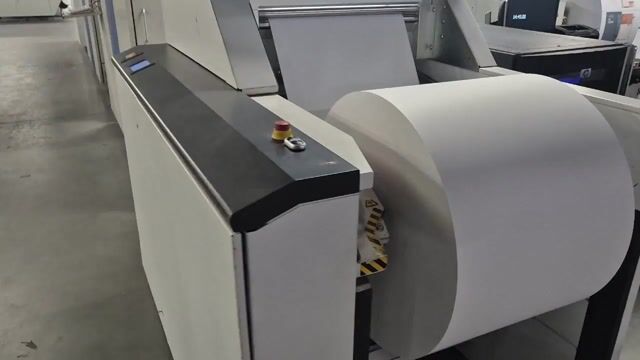

Video reference: The machine is running at 100 m/min in the presented video.
The machine is sold together with integrated 6th generation Hunkeler unwinding and rewinding units..
.
Year of production: 2013.
.
Printing method: Piezo single-pass printing, four tones per drop.
RIP: EQUIOS.
Ink: Water-based pigment inks / water-based dye inks.
Resolution: Maximum 720 x 360 dpi.
Product configuration: Dual Engine Duplex.
Printing speed: Maximum 128 m/min (419.94 ft/min).
Paper width: 165-520 mm (6.5"-20.47").
Printing width: 150-506 mm (5.9"-19.92").
Dimensions (W x D x H): 2,186 x 1,766 x 1,905 mm.
Width including operation panel: 2,028 mm.
Weight: 1,766 kg (3,894 lb) - Simplex.
.
POWER SUPPLY.
.
Printer: Three-phase 200-240 V, 25 A / 380-440 V, 15 A.
Single-phase: 200-240 V, 13 A.
Hsdm Ssz E Nz Asuvqweu.
Single-phase: 100-240 V, 2 A.
.
OPERATING ENVIRONMENT.
.
Temperature: 18-24°C.
Relative humidity: 40-60%.
No sudden temperature changes.
No condensation...
```html
The TruePress Jet 520EX Mono is a high-performance industrial printing machine specialized in printing machinery, particularly suited for water-based pigment and dye ink applications. Designed for efficient production workflows, it supports advanced piezo single-pass printing with four tones per drop, ensuring high-quality output across a range of substrates. Integrated with a 6th-generation Hunkeler unwinding and rewinding system, it enhances operational flexibility and minimizes downtime. Ideal for businesses requiring standardized machine parks, this machine excels in duplex printing with dual-engine capabilities, delivering stable production speeds up to 128 meters per minute.
Key Technical Aspects:
Dimensions and Specifications: The machine measures 2,186 mm (W) × 1,766 mm (D) × 1,905 mm (H), with an operational width including the control panel extending to 2,028 mm. It weighs 1,766 kg (3,894 lb) in simplex configuration.
Paper Handling: The TruePress Jet 520EX supports paper widths of 165–520 mm (6.5"–20.47"), with printing widths ranging from 150–526 mm (5.9"–19.92").
Printing Unit: Utilizing a piezo single-pass printing system, it achieves a maximum resolution of 720 × 360 dpi and operates at speeds up to 128 m/min (419.94 ft/min) with a stable production speed of 100 m/min. The machine is equipped with a dual-engine duplex configuration.
Ink System: The system employs water-based pigment and dye inks, compatible with EQUIOS RIP software.
Power Supply: The printer requires three-phase 200–240 V, 25 A / 380–440 V, 15 A, and single-phase 200–240 V, 13 A. Additional power requirements include 100–240 V, 2 A.
Technical Specifications
| Year | 2013 |
| Machine Condition | In Stock |
Demonstration
Screen - TruePress Jet 520EX Mono
€ 70,000
Excluding taxes and shipping
Szczecin, Poland
