Key Technical Aspects:

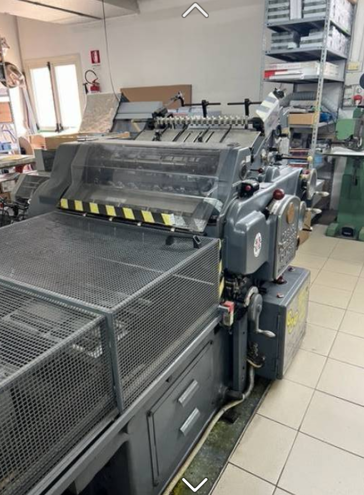

Dimensions and Specifications : The Heidelberg KSB Cylinder 40x57 Hot Foil has a total weight of approximately 3,500 kg (7,716 lbs) and occupies floor space of 2.70 m (L) x 1.45 m (W) x 1.50 m (H). It operates with a power consumption of 3.0 kW to 4.0 kW and is equipped with an optional powder spray system (typically Weko) and a standard high-pile delivery unit.

Paper Handling : This machine accommodates a maximum paper size of 40 x 57 cm (15.75 x 22.5 inches) and a minimum paper size of 13 x 18 cm. It supports substrate thicknesses ranging from 0.04 mm to 0.70 mm, making it suitable for heavy cardboard and die-cutting applications. High-precision mechanical grippers and side lays ensure accurate registration during operation.

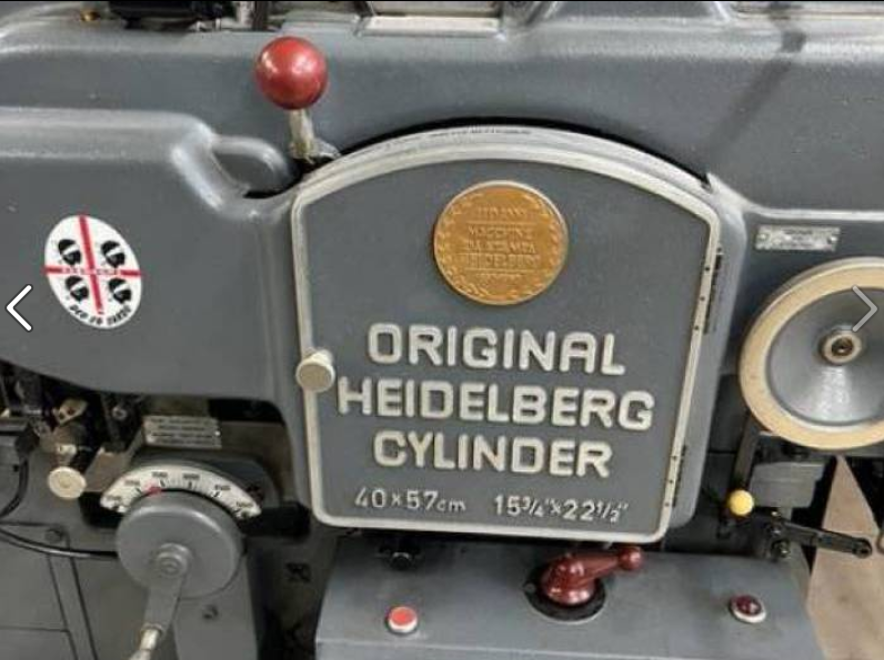

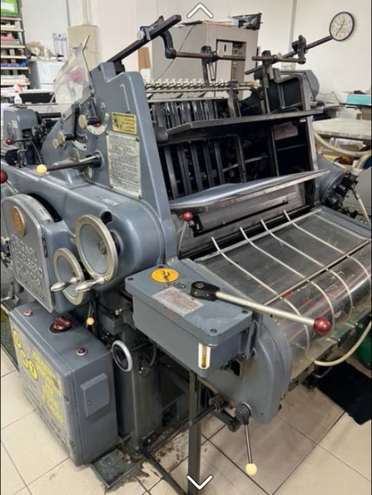

Printing Unit : Configured as a cylinder letterpress, the KSB Cylinder 40x57 achieves a maximum printing size of 38 x 55 cm. It operates at speeds up to 5,000 sheets per hour and features a traditional chase and furniture system for form locking. The machine includes manual washing devices and optional UV/Eko dryer units for enhanced finishing capabilities.

Ink System : The press is equipped with a large ink fountain featuring multiple distribution and form rollers. Ink control is managed through manual screw adjustments on the ink duct, ensuring precise ink application for consistent print quality.
