Laminating
6 views
Matrix - MX 530
Technical Specifications
| Year | 0 |
| Machine Condition | In Stock |
Machine Description
Price: 21,000 PLN.
Download PDF.

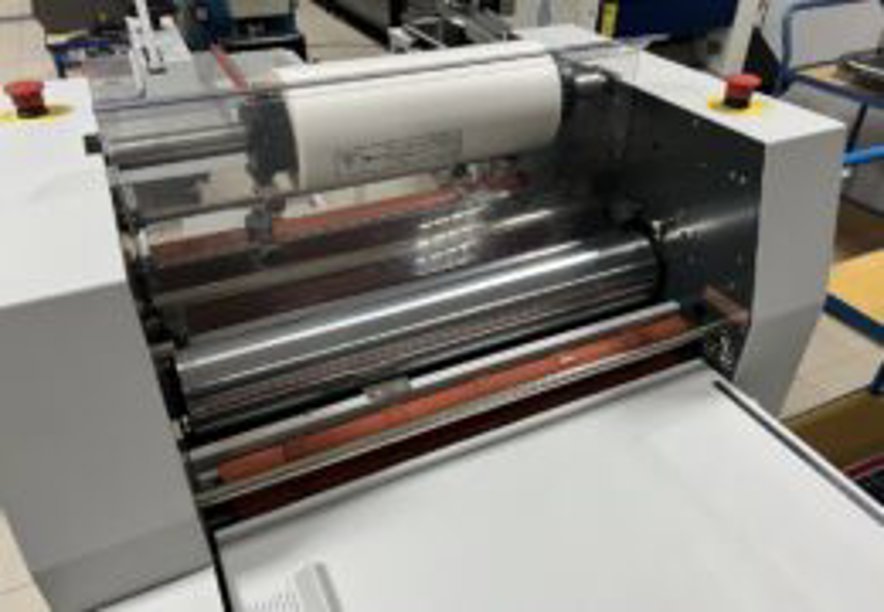

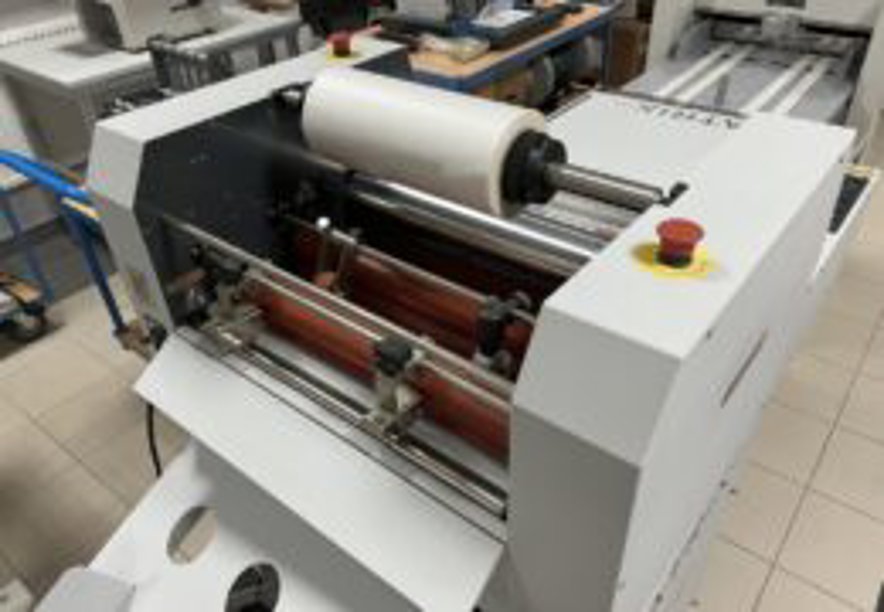

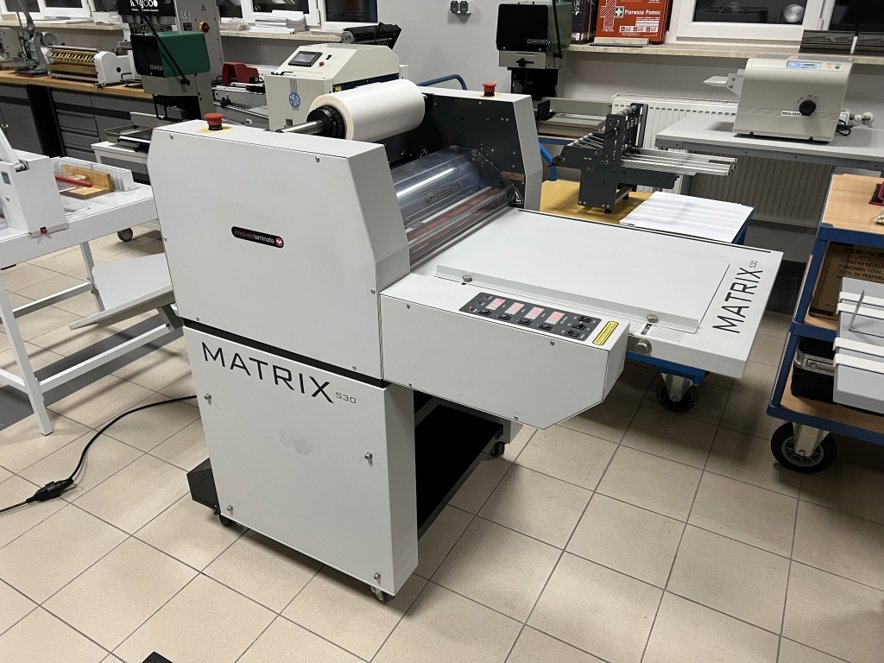

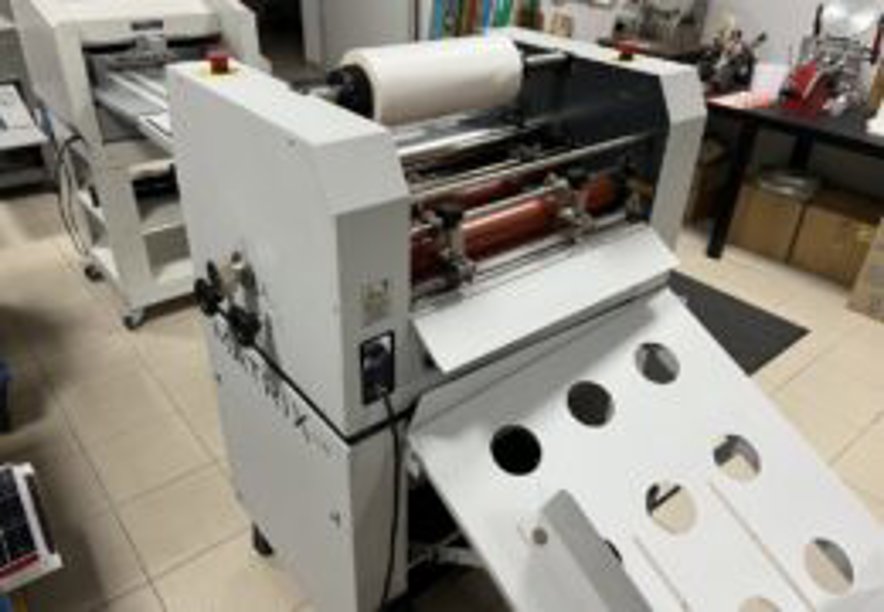

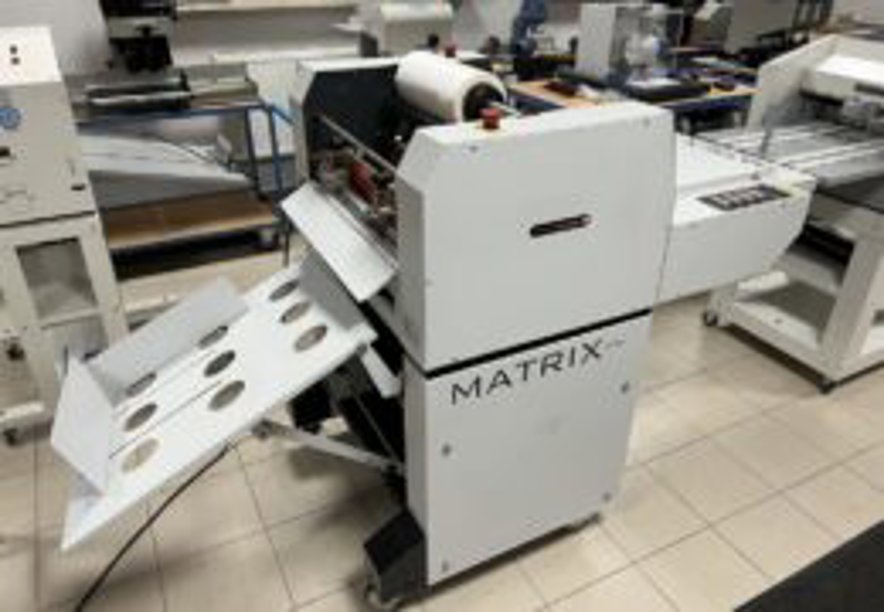

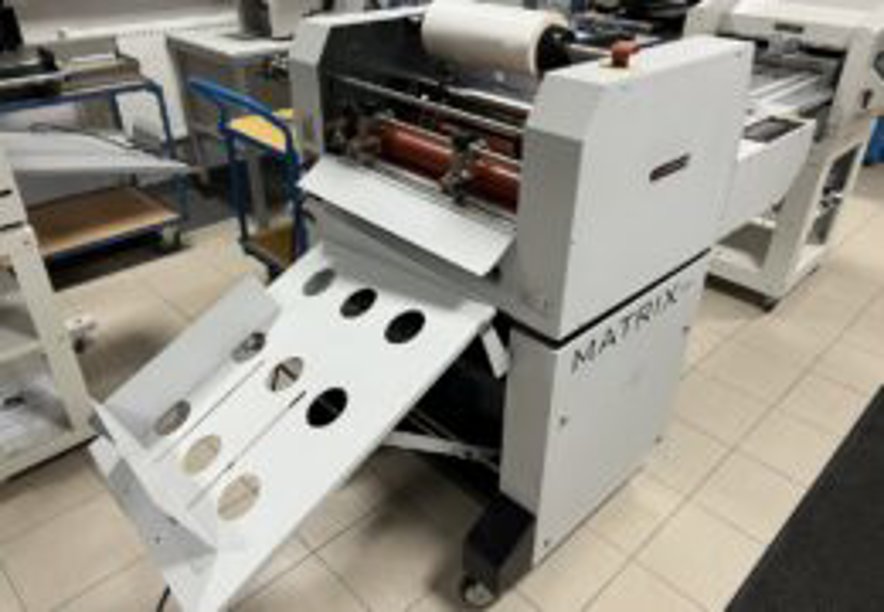

The Matrix MX 530 laminator.
is in very good condition and comes from a small digital printing house..
The machine comes with a laminator and an instruction manual..
.
Description:.
MATRIX is a semi-automatic hot laminating machine with a built-in sheet separator..
Designed for laminating low- and medium-volume digital or offset prints, the machine.
can be operated by a single operator at speeds of up to 10 m/min..
Additional advantages include quiet operation and a small footprint..
Key features include:.
Semi-automatic operation (the operator feeds sheets onto the table, and the rest of the process is automatic)..
A multi-level, adjustable "anti-curling" roller system straightens the sheets..
A built-in automatic sheet separator..
Suitable for both digital and offset prints..
Quick format changes and easy replacement of film rolls (3000m rolls)..
Operating cycle:.

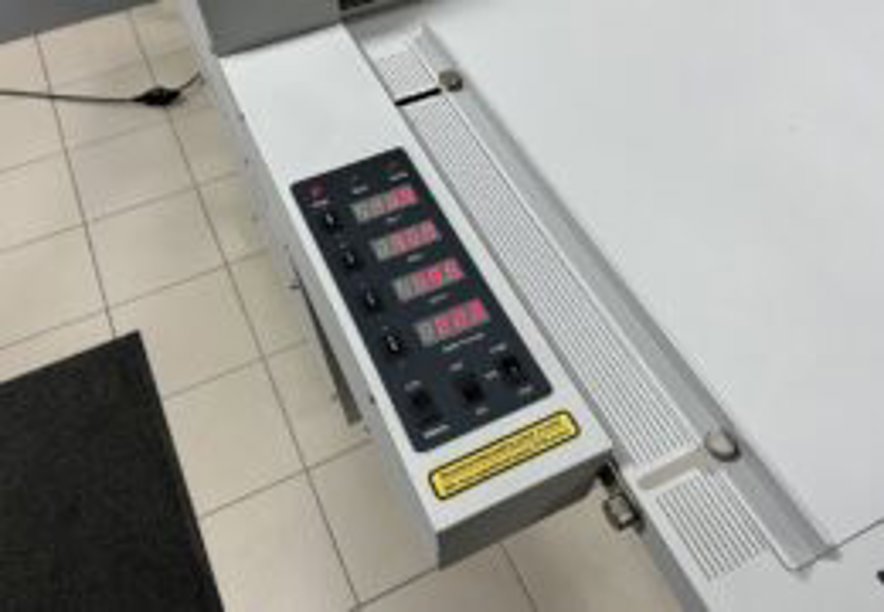

Speed, overlap length, and temperature can be adjusted using the programmer..
The operator manually feeds the sheets..
The rollers automatically pick up the sheets according to the preset overlap.
. Prepared, separated sheets are delivered to the receiving tray..
.
Maximum foil width 500 mm.
Maximum paper width 530 mm.
Maximum paper length 1200 mm.
Minimum paper format 200 x 300 mm.
Laminating speed up to 10 meters per minute.

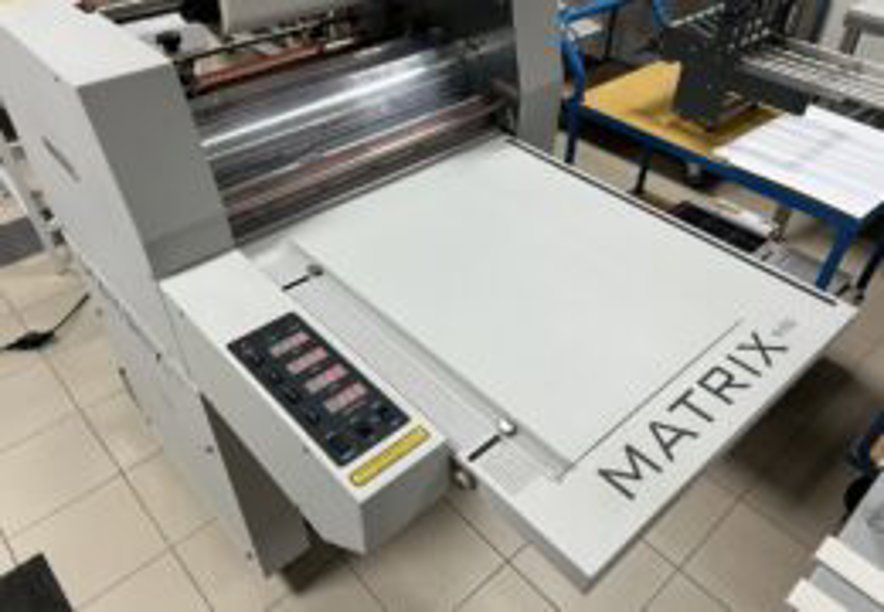

Front table dimensions 668 x 542 mm.
Paper weight 115-350 g/m2.
Temperature 80 – 130 °C.
Warm-up time 10-15 minutes.
Dimensions 84x210x131.5 cm.
Power consumption 1.5-2 kW Power.
supply 230V, 50 Hz.
Weight with base 194/260 kg...
The Matrix MX 530 is a semi-automatic hot laminating machine designed for low- to medium-volume digital or offset print finishing. This efficient and compact laminator features a built-in sheet separator, adjustable anti-curling roller system, and user-friendly operation, making it ideal for small printing houses. With a maximum laminating speed of 10 meters per minute, it ensures quick and precise lamination of sheets up to 530 mm in width. The machine offers quiet operation, easy format changes, and compatibility with 3000m film rolls, providing reliability and versatility for various laminating applications.
Key Technical Aspects:
Dimensions and Specifications : The Matrix MX 530 has a compact footprint with overall dimensions of 84 x 210 x 131.5 cm and weighs between 194–260 kg (including base). It operates on a 230V, 50 Hz power supply with a power consumption of 1.5–2 kW. The warm-up time ranges from 10 to 15 minutes, and the machine supports a temperature range of 80–130 °C for optimal laminating performance.
Paper Handling : The laminator accommodates paper widths up to 530 mm and lengths up to 1200 mm, with a minimum paper format of 200 x 300 mm. It handles paper weights between 115–350 g/m² and features a front table measuring 668 x 542 mm for manual sheet feeding. The built-in automatic sheet separator ensures smooth processing, while the adjustable overlap length and speed settings allow for precise control during operation.
