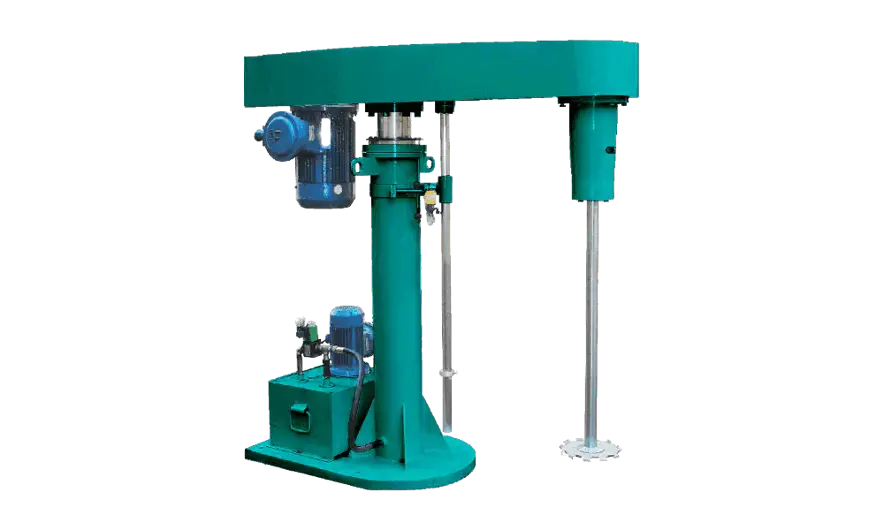

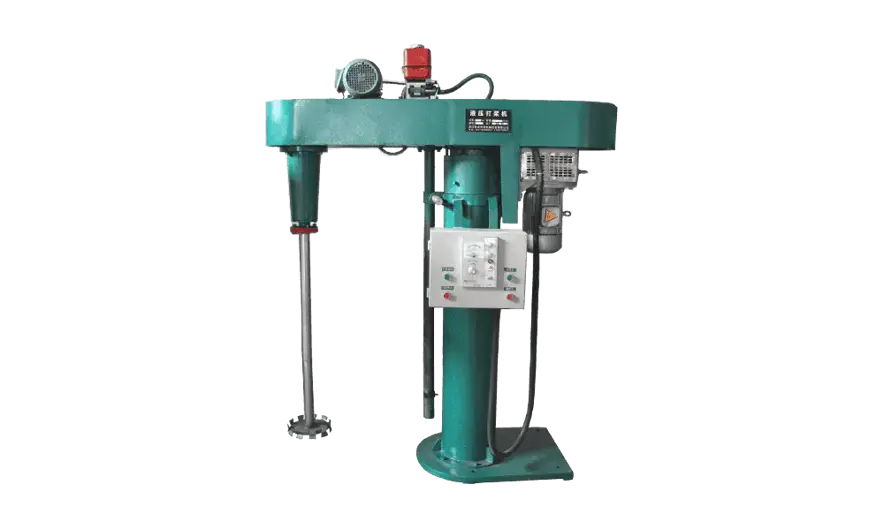

Hydraulic ink mixer
58 views
ZHEJIANG MEIGE MACHINERY TECHNOLOGY CO., LTD. - MG-SYDJ
Machine Description
The range of spindle speed adjustment is large, with wide adaptability. Easy to operate and install. Variable frequency speed regulation motor, can rotate at any fixed point for use. Equipped with hydraulic lifting and 180 ° angle....
The ZHEJIANG MEIGE MACHINERY TECHNOLOGY CO., LTD. MG-SYDJ Hydraulic Ink Mixer is a versatile industrial machine designed for efficient and precise mixing of hydraulic inks. Built for adaptability, it features a wide range of spindle speed adjustments, making it suitable for various industrial applications requiring consistent ink consistency. Its user-friendly design ensures ease of operation and installation, while the variable frequency speed regulation motor allows for flexible rotational adjustments. The hydraulic lifting system and 180° angle capability enhance workflow efficiency, particularly in environments where accessibility and maneuverability are critical.
Key Technical Aspects:
Dimensions and Specifications: The machine has a gross weight of 500 kg and an overall size of 880×1200×2600 mm. The maximum spindle speed is 1200 rpm, with a lifting speed of 3 m/min and a lifting stroke of 1000 mm. The barrel dimensions are ≤Ф800×900 mm. The lifting motor is rated at 0.55 kW, and the spindle motor power ranges from 3 to 5.5 kW.
Technical Specifications
| Maximum spindle speed | 1200rpm |
| Spindle lifting speed | 3m/min |
| Spindle lifting stroke | 1000mm |
| Barrel diameter and height | ≤Ф800×900mm |
| Lifting motor power | 0.55kw |
| Spindle motor power | 3-5.5kw |
| Gross weight | 500kg |
| Overall size (L x W x H) | 880×1200×2600mm |
ZHEJIANG MEIGE MACHINERY TECHNOLOGY CO., LTD. - MG-SYDJ
Price On Request
