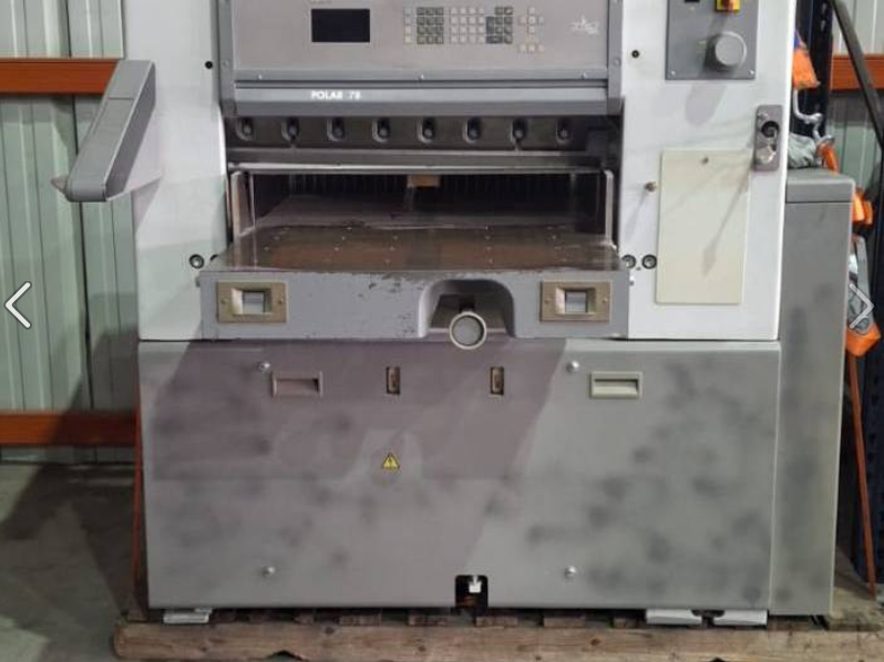

Polar - 78 ES
Technical Specifications
| Year | 1998 |
| Machine Condition | In Stock |
Machine Description
Configuration: Programmable hydraulic paper cutter..
Year: 1998..
Cutting width: 78 cm..
Feeding depth: 78 cm..
Feeding height (pile height): 12 cm..
Clamp pressure: Minimum 150 daN / Maximum 3,000 daN..
Control system: ES model with a large monochrome display and programmable memory for up to 99 programs (including repeat and eject functions)..
Safety features: Infrared light barriers, two-hand operation, and mechanical safety bolt..
Backgauge speed: 30 cm / second..
Smallest cut without false plate: 2.0 cm..
Smallest cut with false plate: 7.0 cm..
Table type: Nickel-plated air table (main and side tables)..
Knife speed: 45 cycles / minute..
Total weight: approximately 1,300 kg..
Machine dimensions (L x W x H): 1.58 m x 1.95 m x 1.45 m..
Power consumption: approximately 3.0 kW..
Power supply: 3-phase 380V/400V....
The Polar 78 ES is a programmable hydraulic paper cutter from the Guillotines category, designed for precise and efficient cutting of paper stacks in industrial printing and finishing environments. This 1998 model combines robust construction with advanced automation, featuring a large monochrome display, programmable memory for up to 99 cutting programs, and high-performance safety mechanisms. Ideal for commercial print shops, binderies, and packaging facilities, the 78 ES delivers consistent accuracy, rapid operation, and enhanced productivity for medium to large-scale cutting tasks.
Key Technical Aspects:
Dimensions and Specifications : The Polar 78 ES has a cutting width of 78 cm and a feeding depth of 78 cm, with a maximum pile height of 12 cm. The machine operates with a clamp pressure ranging from 150 daN to 3,000 daN and achieves a backgauge speed of 30 cm/second. It features a nickel-plated air table (main and side tables) and a knife speed of 45 cycles per minute. The total weight is approximately 1,300 kg, with machine dimensions of 1.58 m (L) x 1.95 m (W) x 1.45 m (H). Power consumption is around 3.0 kW, requiring a 3-phase 380V/400V power supply.
Paper Handling : The machine supports a smallest cut of 2.0 cm without a false plate and 7.0 cm with a false plate. It includes programmable memory for up to 99 cutting programs, featuring repeat and eject functions for streamlined workflows. Safety is ensured through infrared light barriers, two-hand operation, and a mechanical safety bolt.
Polar - 78 ES
€ 6,000
Excluding taxes and shipping
