Guillotines
9 views
EBA - 5560
Technical Specifications
| Year | 0 |
| Machine Condition | In Stock |
Machine Description

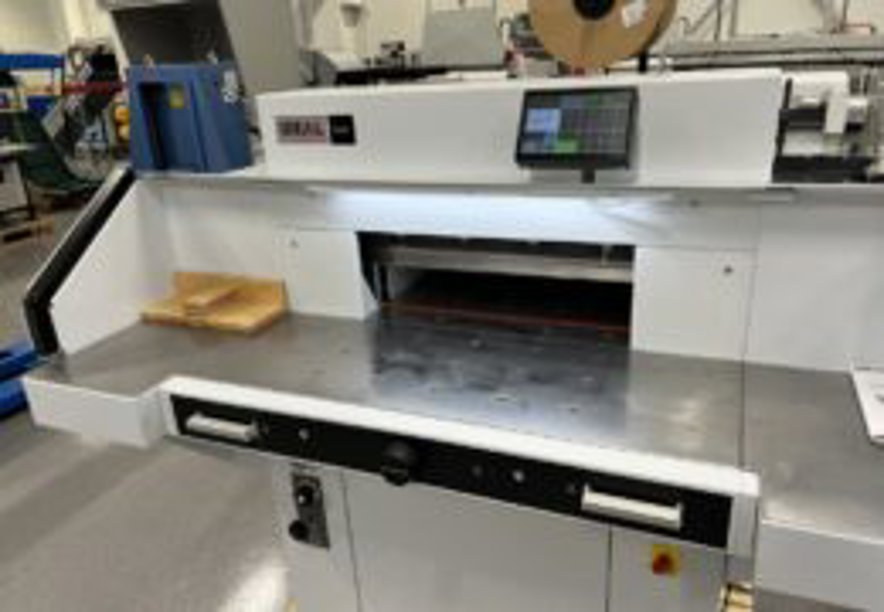

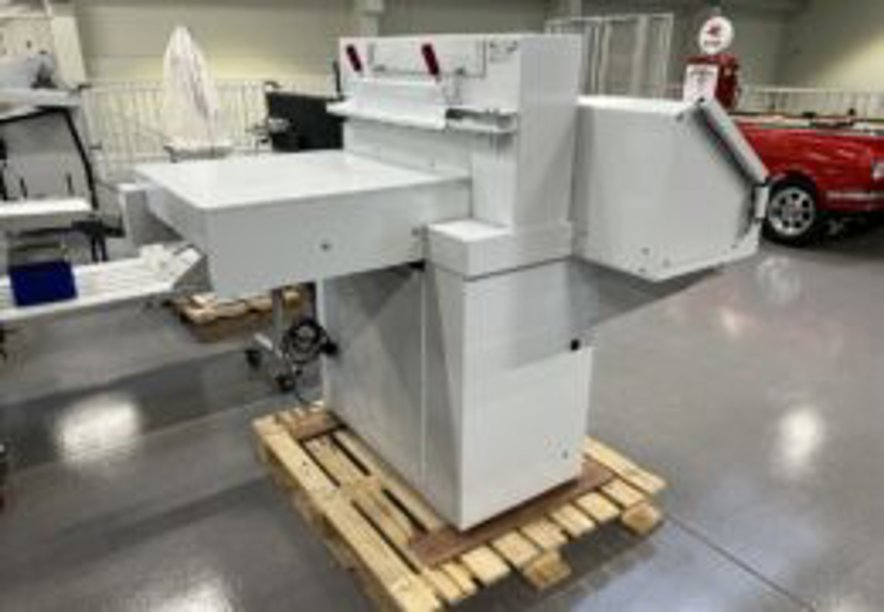

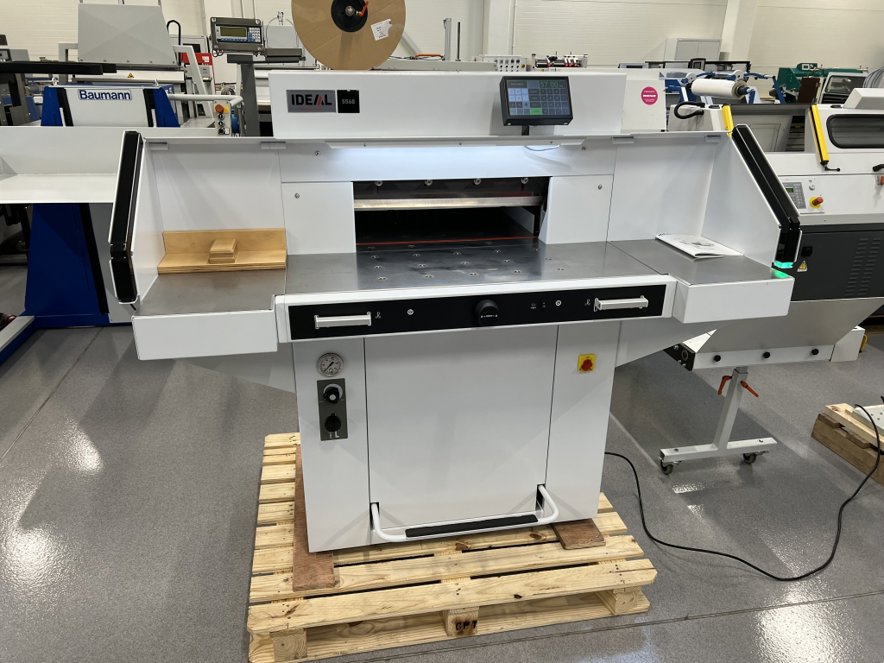

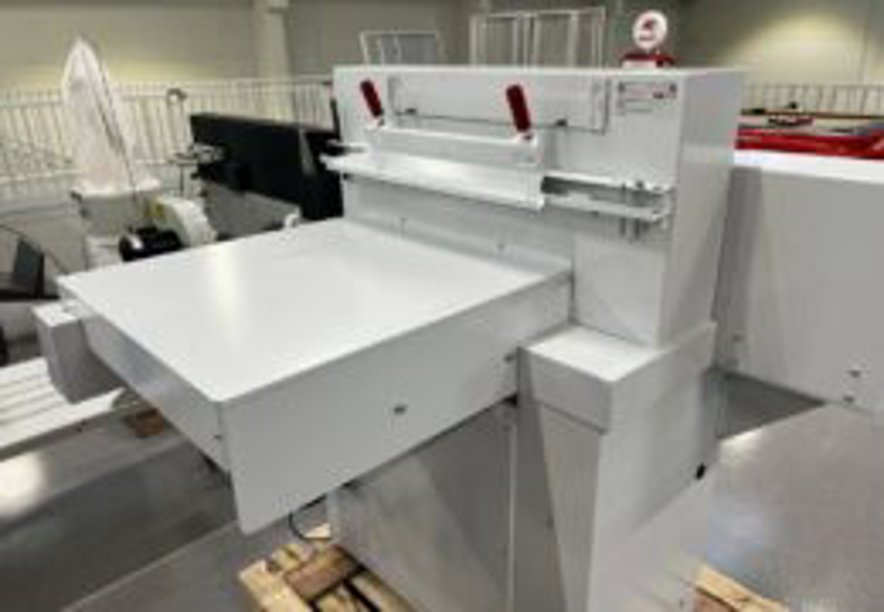

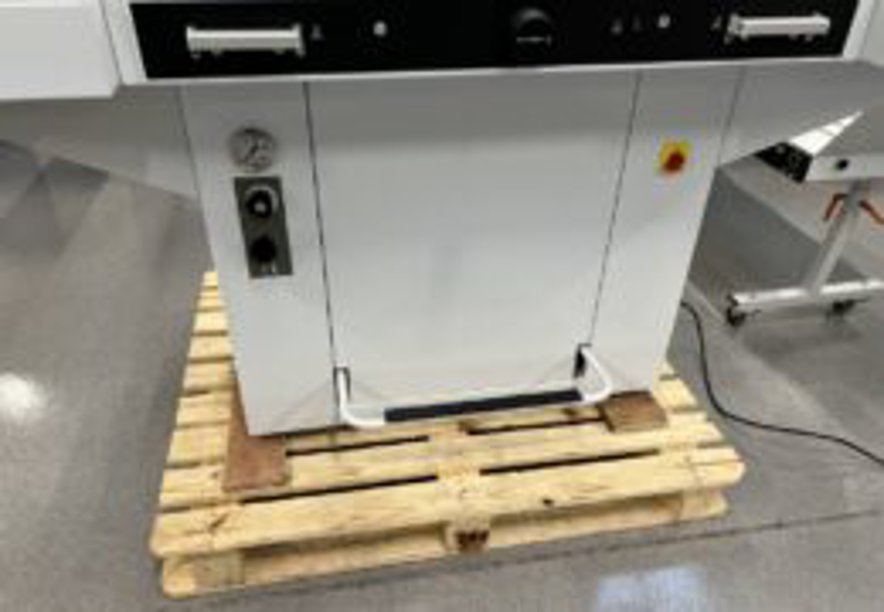

The EBA 5560 Hydraulic Guillotine.
is a high-performance, precise hydraulic cutter designed for small and medium-sized printing houses. It offers intuitive and simple operation, yet boasts the performance of a large industrial machine..
The machine was previously used in an office and is the latest product from the German manufacturer Ideal..
Control:.
99 programs, each 99 steps,.

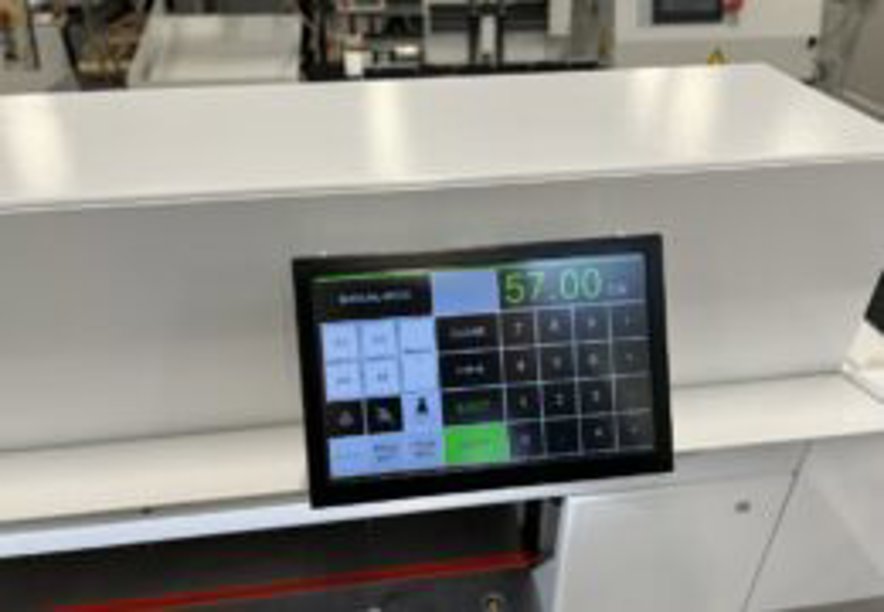

data entry via LCD touch screen.
, electronic digital display with 1/10 mm accuracy,.
electronic handwheel with graduated speed regulation of the rear stop.
, switching mm/inch.
, knife and pressure beam drive: hydraulic,.
photocells,.

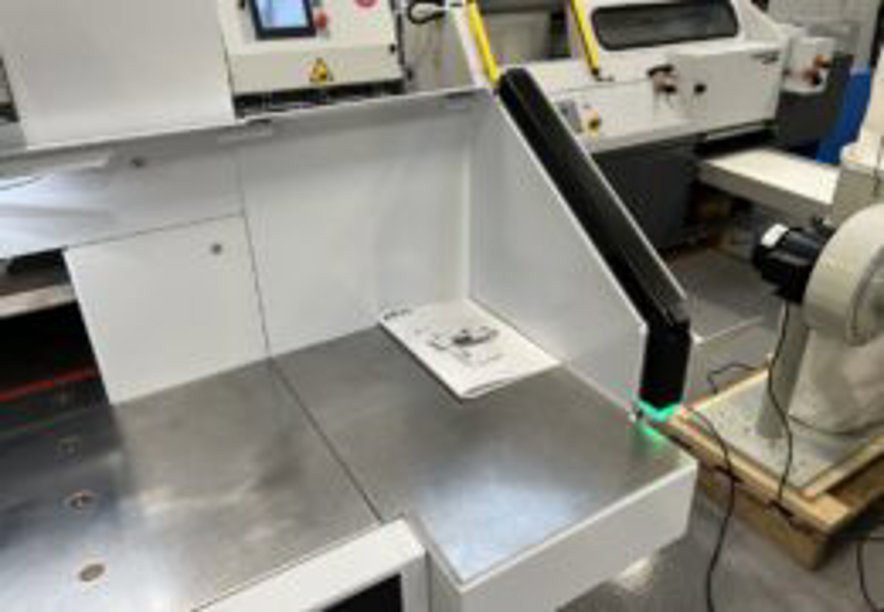

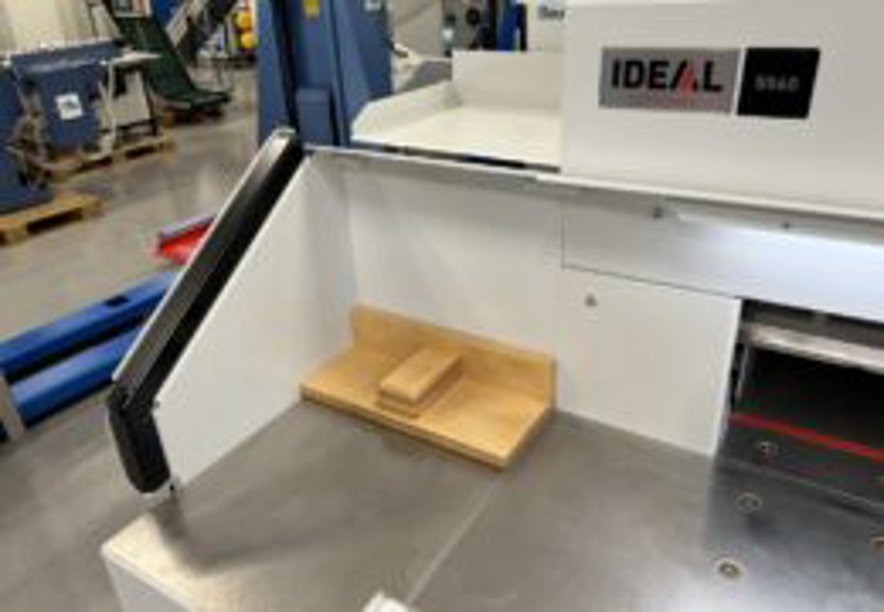

side tables,.
cutting line,.
technical data:.
Cutting length: 550 mm,.
Infeed height: 95 / 92 - with a strip under the beam,.
Infeed depth: 570 mm,.
Front table depth: 460 mm,.
Minimum final cut: 32 / 60 mm - with a strip,.
Power supply: 230 V / 50 Hz,.
Power: 1.5 kW.
, Weight: 369 kg,.
Dimensions: 1520 x 1400 x 1370 mm...
The EBA 5560 Hydraulic Guillotine is a high-performance, precision cutting machine designed for small to medium-sized printing houses and office environments. Combining industrial-grade performance with intuitive operation, this hydraulic cutter delivers exceptional accuracy and efficiency. Featuring advanced control options such as a 99-program memory with 99 steps each, an LCD touch screen, and an electronic digital display with 1/10 mm precision, the EBA 5560 ensures reliable and consistent cutting for a variety of materials. Ideal for cutting paper, cardboard, and other substrates, this machine is built for durability and ease of use, making it a valuable addition to any production workflow.
Key Technical Aspects:
Dimensions and Specifications : The EBA 5560 Hydraulic Guillotine offers a cutting length of 550 mm and an infeed height of 95 mm (92 mm with a strip under the beam). It has an infeed depth of 570 mm and a front table depth of 460 mm. The minimum final cut is 32 mm (60 mm with a strip). The machine operates on a 230 V / 50 Hz power supply with a power rating of 1.5 kW. It weighs 369 kg and has overall dimensions of 1520 x 1400 x 1370 mm. Additional features include a hydraulic knife and pressure beam drive, photocells for safety, and side tables for enhanced material handling.
EBA - 5560
Price On Request
