Digital Printing Presses
11 views

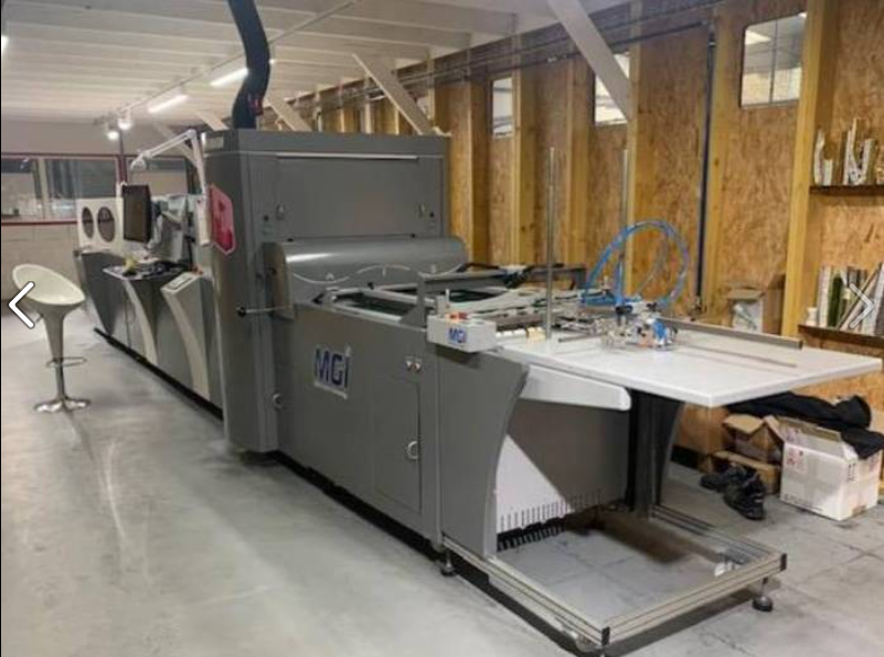

MGI - Jet Varnish
Technical Specifications
| Year | 2017 |
| Machine Condition | In Stock |
Machine Description
Configuration: Digital UV spot varnishing and hot foil embossing system (2D / 3D digital embellishment press)..
Year: 2017..
Max paper size: 52 x 105 cm (20 x 41 inches)..
Min paper size: 21 x 29.7 cm (A4 format)..
Max printing / varnishing width: approximately 51 cm..
Technology: UV inkjet Drop-on-Demand (DoD) piezoelectric printhead technology..
Printing modes: 2D flat spot UV, 3D raised varnish, and digital hot foil stamping..
Varnish thickness: from 3 microns up to 200 microns for tactile 3D effects..
Inking / coating system: Single-pass UV varnish application with dual varnish tanks and independent circuits..
Foiling system: Inline digital hot foil module (iFOIL) without dies or plates..
Max speed: up to 3,000 B2 sheets / hour in varnish mode; up to 1,700 sheets / hour with foil applications..
Registration: AI-assisted automatic sheet registration with SmartScanner technology and real-time correction..
Feeding system: High-capacity automatic feeder with suction transport and double-sheet detection..
Delivery capacity: High pile stacker with instant UV-cured sheet delivery..
Substrate thickness: from 135 gsm up to 600 gsm (depending on substrate type)..
Compatible substrates: Coated paper, laminated stock, plastics, PVC, synthetic media, offset and digital printed sheets..
Applications: Luxury packaging, business cards, book covers, brochures, labels, invitations, and premium marketing materials..
Drying system: Integrated UV curing system with instant drying..

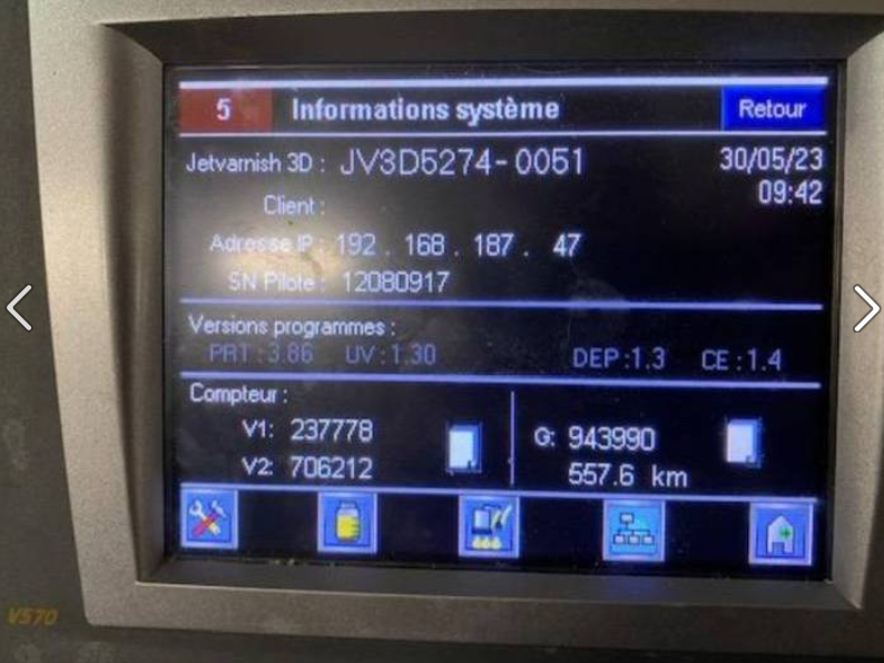

Control system: Touchscreen digital workflow interface with variable data capability..
Total weight: approximately 4,000–4,500 kg depending on configuration..
Machine dimensions (L x W x H): approximately 5.50 m x 1.80 m x 1.90 m..
Power consumption: approximately 12 kW to 18 kW....
The MGI Jet Varnish is a high-performance digital UV spot varnishing and hot foil embossing system designed for 2D and 3D digital embellishment in luxury printing applications. This advanced press combines UV inkjet Drop-on-Demand (DoD) piezoelectric technology with inline digital hot foil stamping (iFOIL) to deliver premium tactile effects without the need for traditional dies or plates. Ideal for producing high-value printed materials, the Jet Varnish excels in creating raised varnish textures, spot UV coatings, and metallic foil finishes with exceptional precision and speed. With AI-assisted registration, instant UV curing, and a versatile substrate range, it is perfectly suited for luxury packaging, business cards, book covers, brochures, labels, and premium marketing collateral, offering unmatched efficiency and creative flexibility.
Key Technical Aspects:
Dimensions and Specifications : The MGI Jet Varnish has a total weight of approximately 4,000–4,500 kg, with machine dimensions of 5.50 m (L) x 1.80 m (W) x 1.90 m (H). It operates with a power consumption ranging from 12 kW to 18 kW and was manufactured in 2017. The system supports a maximum speed of up to 3,000 B2 sheets per hour in varnish mode and 1,700 sheets per hour with foil applications.
Paper Handling : The press accommodates a maximum paper size of 52 x 105 cm (20 x 41 inches) and a minimum size of 21 x 29.7 cm (A4 format). It handles substrates ranging from 135 gsm to 600 gsm, including coated paper, laminated stock, plastics, PVC, synthetic media, and offset or digital printed sheets. The high-capacity automatic feeder features suction transport and double-sheet detection, while the delivery system includes a high pile stacker with instant UV-cured sheet output.
Printing Unit : The Jet Varnish employs UV inkjet Drop-on-Demand (DoD) piezoelectric printhead technology for single-pass UV varnish application. It supports multiple printing modes, including 2D flat spot UV, 3D raised varnish (with thickness ranging from 3 microns to 200 microns), and digital hot foil stamping. The system includes dual varnish tanks with independent circuits and an inline digital hot foil module (iFOIL) that eliminates the need for traditional dies or plates.
Ink System : The machine utilizes a UV varnish application system with dual varnish tanks and independent circuits, enabling precise and consistent coating. The integrated UV curing system ensures instant drying, allowing for immediate handling of printed sheets.
MGI - Jet Varnish
Price On Request
