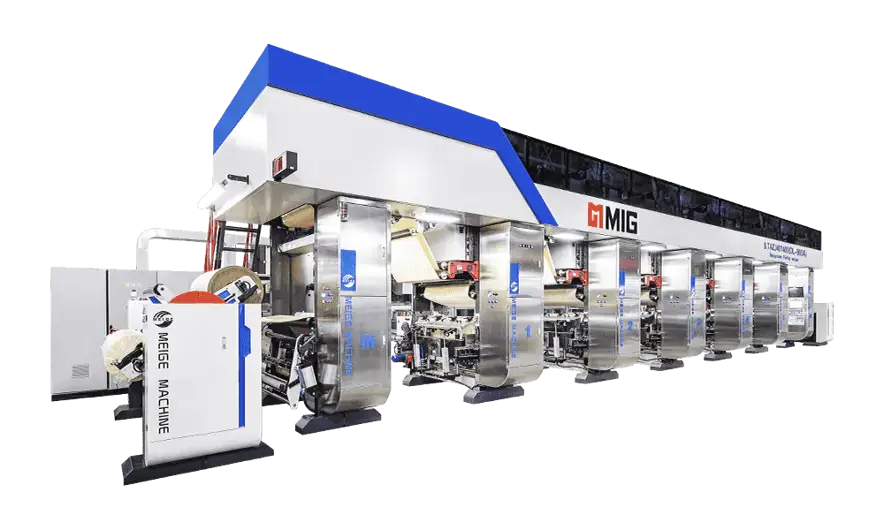

ZHEJIANG MEIGE MACHINERY TECHNOLOGY CO., LTD. - S.TAZJ501400(DL-900A) 4-Foot Super Large Diameter
Machine Description
In 2022, we will innovate and develop a super large plate diameter (large unit), with a super large and heavy plate diameter. The printing unit (perimeter) has been expanded from 800mm to 900mm, making it versatile for one machine. More suitable for the decorative texture selection requirements of the home industry. High precision full servo motor synchronous printing, upright stainless steel unit electrical control box. Computer overprinting, observing the quality of overprinting in still images, and automatically retracting, releasing, cutting, and changing materials....
```html
The Decorative Gravure Printing Machinery from ZHEJIANG MEIGE MACHINERY TECHNOLOGY CO., LTD. is a high-capacity, large-diameter gravure press designed for producing high-precision decorative prints in the home and industrial sectors. Specializing in versatile plate diameters and advanced automation, this machine excels in full servo motor synchronization, computer-controlled overprinting, and material handling for large-format decorative textures.
Key Technical Aspects:
Dimensions and Specifications: The machine features an overall footprint of 21,500mm (L) × 5,500mm (W) × 4,200mm (H), with a gross weight of approximately 58 tonnes. Power requirements include a total capacity of 150 kW, supplemented by a drying energy system capable of 432 kW (gas: 1 million kcal).
Printing Unit: The printing unit expands from 800mm to 900mm perimeter, enabling versatile operation for a single machine. Design speed is 220 m/min, while print speed is 180 m/min across a print range of 1,100–1,350mm.
Plate Cylinder: The machine accommodates large-diameter plates ranging from approximately 300mm to 900mm (2820mm), optimized for heavy and super-large plates in decorative gravure applications.
Technical Specifications
| Design speed | 220m/min |
| Print speed | 180m/min |
| Cylinder dia | ?300-?900mm(2820mm) |
| Print range | 1100—1350mm |
| Power capacitance of the entire machine | 150kw |
| Drying energy capacity | Verall: 432kw Gas: 1 million kcal |
| Overall dimensions (L×W×H) | 21500mm×5500mm×4200mm |
| Gross weight | Around 58T |
Features
| 4-Foot Super Large Diameter (Super Cycle) Medium-High Speed ELS-Type Gravure Printing Machine for Engineered Wood Decorative Paper |
