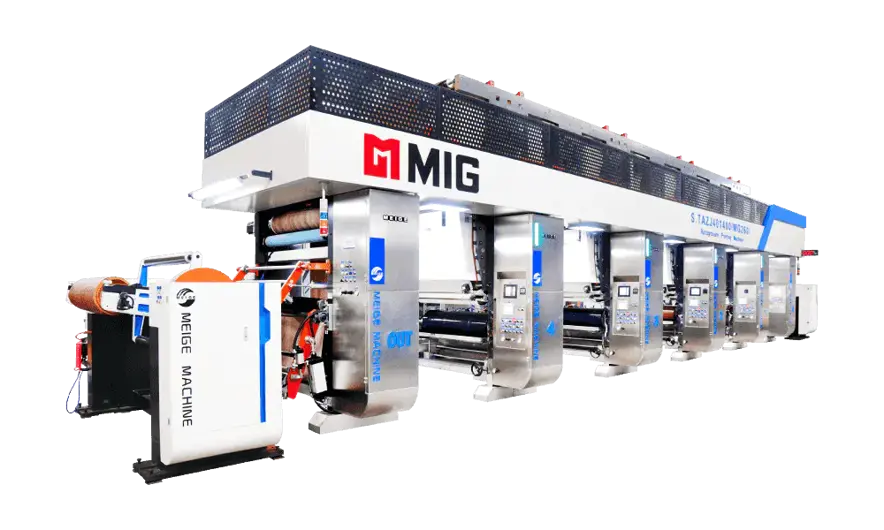

Decorative Gravure Printing Machinery
13 views
ZHEJIANG MEIGE MACHINERY TECHNOLOGY CO., LTD. - S.TAZJ401400 (MG260A)
Machine Description
Innovative development of models in 2023, Beifu control system. Vertical stainless steel unit electrical control box with a blue and white appearance design. High precision full servo motor synchronous printing, automatic retraction, release, cutting, and material changing. Computer tracking of overprinting, observing the quality of overprinting in still images. Brand models with high speed, high configuration, and high quality....
```html
The Decorative Gravure Printing Machinery from ZHEJIANG MEIGE MACHINERY TECHNOLOGY CO., LTD. represents a cutting-edge innovation in high-speed, high-precision gravure printing, introduced in 2023 with a Beifu control system. Designed for industrial applications requiring superior print quality and efficiency, this machine excels in handling large-format substrates with advanced automation and servo-driven technology. Its sleek vertical stainless steel control box enhances both functionality and aesthetic appeal, while its high-speed capabilities make it ideal for demanding production environments.
Key Technical Aspects:
Dimensions and Specifications: The machine features an overall power capacity of 150 kW, with a combined drying energy capacity of 432 kW (gas: 1.2 million kcal). Its dimensions are 19,500 mm × 7,500 mm × 5,500 mm, and the gross weight is approximately 50 metric tons. The print range spans 1,250–1,350 mm, and the cylinder diameter varies between 250–450 mm.
Printing Unit: The machine employs a high-precision full servo motor synchronous printing system, enabling automatic retraction, release, cutting, and material changes. It supports computer-tracked overprinting, ensuring consistent quality in both static and dynamic prints.
Paper Handling: The machine operates at a design speed of 260 m/min and a print speed of 255 m/min, optimized for high-volume production.
Technical Specifications
| Design speed | 260m/min |
| Print speed | 255m/min |
| Cylinder dia | ?250—?450mm |
| Print range | 1250—1350mm |
| Power capacitance of the entire machine | 150kw |
| Drying energy capacity | Verall: 432kw Gas: 1.2 million kcal |
| Overall dimensions (L×W×H) | 19500mm×7500mm×5500mm |
| Gross weight | Around 50T |
Features
| 4-Foot High Speed ELS-Type Gravure Printing Machine for Engineered Wood Decorative Paper |
ZHEJIANG MEIGE MACHINERY TECHNOLOGY CO., LTD. - S.TAZJ401400 (MG260A)
Price On Request
