Decorative Gravure Printing Machinery
6 views

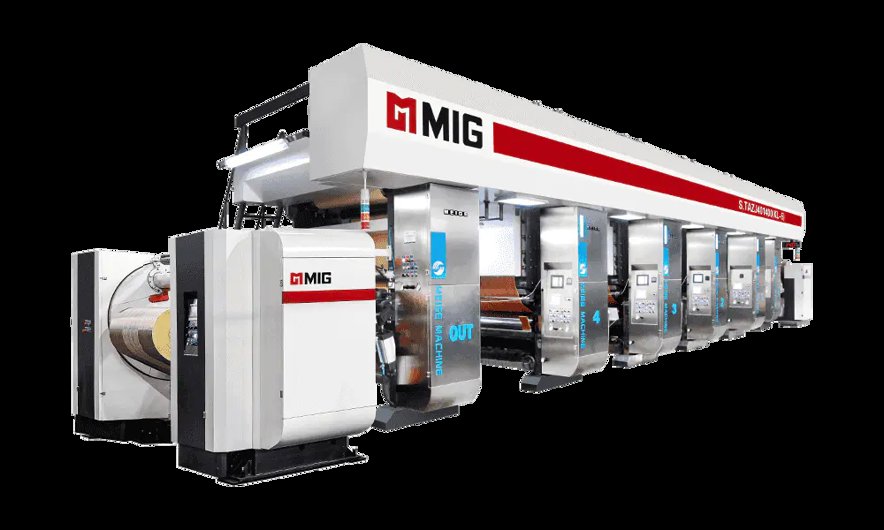

ZHEJIANG MEIGE MACHINERY TECHNOLOGY CO., LTD. - S.TAZJ401400 (KL-5) 4-Foot Medium-High Speed ELS
Machine Description
High end high-end fully automatic models innovatively developed in 2023. This machine is equipped with a disc type automatic retractable unit and a shelving type automatic clamping air ledger shaft. High precision full servo motor synchronous printing, upright stainless steel unit electrical control box. Computer set printing with dual camera, one screen full still image, observe printing quality. High precision preparation, plastic ink tray, side control and operation....
This machine is a high-end, fully automatic decorative gravure printing machinery designed for high-speed, high-quality gravure printing applications. Developed in 2023, it features advanced automation and precision engineering, making it ideal for industries requiring intricate, high-resolution decorative printing on large-format substrates.
Key Technical Aspects:
Dimensions and Specifications: The machine operates at a design speed of 220 meters per minute with a print speed of 220 meters per minute. It accommodates a cylinder diameter ranging from 250 to 450 mm and supports a print range of 1250–1330 mm. The entire machine requires a power capacity of 115 kW, with a drying energy capacity of 432 kW (400 kW for drying and 800000 kcal for gas). The overall dimensions are 17200 mm (L) × 5540 mm (W) × 3780 mm (H), with a gross weight of approximately 45 tons.
Printing Unit: Equipped with a disc-type automatic retractable unit and a shelving-type automatic clamping air ledger shaft, this machine utilizes high-precision full servo motor synchronous printing. The upright stainless steel electrical control box ensures reliable operation.
Ink System: The machine features a high-precision preparation system with a plastic ink tray for efficient ink management. Side controls and operations enhance user accessibility and workflow efficiency.
Plate Cylinder: Supported by a dual-camera computer set, the machine allows for real-time observation of print quality via one-screen full still images, ensuring flawless output.
Technical Specifications
| Design speed | 220m/min |
| Print speed | 220m/min |
| Cylinder dia | ?250—?450mm |
| Print range | 1250—1330mm |
| Power capacitance of the entire machine | 115kw |
| Drying energy capacity | Verall: 432kw Gas: 800000 kcal |
| Overall dimensions (L×W×H) | 17200mm×5540mm×3780mm |
| Gross weight | Around 45T |
Features
| Gravure Printing Machine for Engineered Wood Decorative Paper |
ZHEJIANG MEIGE MACHINERY TECHNOLOGY CO., LTD. - S.TAZJ401400 (KL-5) 4-Foot Medium-High Speed ELS
Price On Request
