Key Technical Aspects:

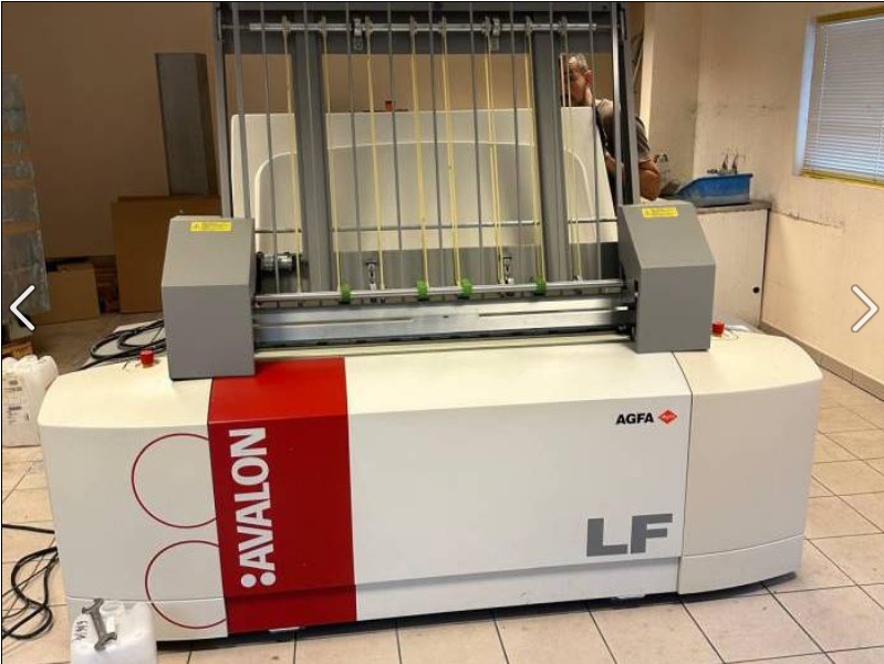

Dimensions and Specifications : The Agfa Avalon LF has a compact footprint with machine dimensions of 2.45 m (L) x 1.35 m (W) x 1.45 m (H) and a total weight of approximately 1,150 kg. It operates with a power consumption ranging from 3.0 kW to 4.5 kW. The system supports resolutions from 1200 to 2400 dpi (standard) or 3000 dpi (optional) and achieves productivity rates of 8 to 20 plates per hour, depending on the imaging head configuration (Silver, Gold, or XT). The machine is equipped with a multi-channel infrared laser diode and optional GLV technology in select models.

Plate Cylinder : The Avalon LF utilizes an external drum configuration for thermal plate imaging, accommodating thermal aluminum plates with a spectral sensitivity of 830 nm. It supports plate sizes ranging from a minimum of 45 x 37 cm to a maximum of 82 x 116 cm (32.2 x 45.6 inches), with an extended maximum plate width of 2000 mm. Plate thickness compatibility spans from 0.15 mm to 0.30 mm. The system offers optional internal punch functionality and supports manual, semi-automatic, or fully automatic loading via Autoloader or Multi-cassette systems.
