Bag Making
11 views
RUIZHI - RZJD G250J
Technical Specifications
| Year | 2019 |
| Machine Condition | In Stock |
Machine Description
Configuration: Automatic V-bottom / flat bottom paper bag making machine (roll-fed production line)..
Year: 2019..
Type of bag: V-bottom / flat bottom paper bags (food packaging, kraft paper bags, shopping bags)..
Max paper size (feed width): 160 – 780 mm..
Min paper size: approximately 70 mm bag width capability..
Bag length range: 100 – 450 mm..
Bag width range: 70 – 250 mm..
Gusset range: 20 – 120 mm..
Production system: Continuous roll-to-bag forming line with integrated gluing, tube forming, bottom folding, and cutting..

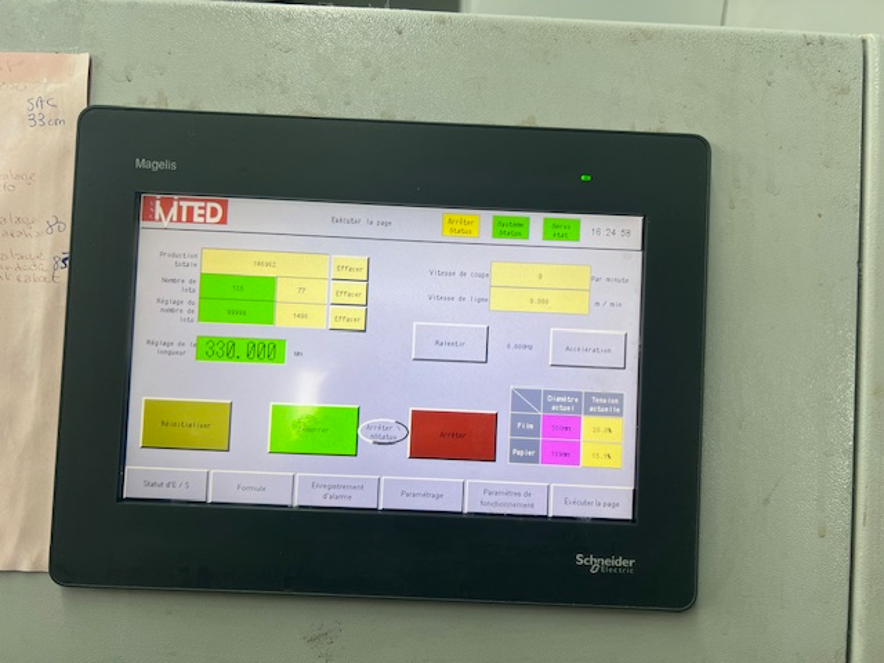

Control system: PLC-based servo system (TRIO controller + HMI touch screen)..
Servo system: Japanese servo motors with automated tension and registration control..
Max speed: approximately 50 – 320 bags/min (up to ~350 depending on configuration)..
Production capacity: high-speed continuous industrial output for medium and large-scale production..
Paper material range: 35 – 80 g/m² kraft or printed paper..
Roll diameter: up to 1000 mm..
Core diameter: 76 mm..
Gluing system: Hot melt / side glue + bottom forming adhesive system (automatic application)..
Tension control: Automatic constant tension unwinding system..
Registration system: Photoelectric color mark tracking for printed rolls..
Air requirement: ≥ 0.12 m³/min at 0.6–1.2 MPa..
Power consumption: approximately 17 – 24 kW (depending on configuration)..
Voltage: 380V, 3-phase industrial supply..
Total weight: approximately 4,500 kg..
Machine dimensions (L x W x H): approximately 7100 x 3000 x 2200 mm..
Applications: Paper shopping bags, food packaging bags, bakery bags, kraft bags, and eco-friendly retail packaging....
The RUIZHI RZJD G250J is an advanced automatic V-bottom/flat bottom paper bag making machine designed for high-speed, continuous roll-fed production. This 2019 model excels in manufacturing eco-friendly paper bags for food packaging, shopping, and retail applications. Key features include a PLC-based servo control system with Japanese servo motors, automatic tension and registration control, and integrated gluing for precise bag formation. With a production capacity of up to 320 bags per minute, this machine is ideal for medium to large-scale industrial output, offering versatility in bag dimensions, material compatibility, and efficient operation for sustainable packaging solutions.
Key Technical Aspects:
Dimensions and Specifications : The machine measures approximately 7100 x 3000 x 2200 mm (L x W x H) and weighs around 4,500 kg. It operates on a 380V, 3-phase industrial power supply with a power consumption of 17–24 kW. The system requires an air supply of ≥ 0.12 m³/min at 0.6–1.2 MPa and features a PLC-based servo control system with a TRIO controller and HMI touch screen for precise operation.
Paper Handling : The RZJD G250J supports a maximum paper feed width of 160–780 mm and accommodates rolls up to 1000 mm in diameter with a 76 mm core. It processes paper materials ranging from 35–80 g/m², including kraft and printed paper. The machine produces bags with a width range of 70–250 mm, length range of 100–450 mm, and gusset range of 20–120 mm. Automatic tension control and photoelectric color mark tracking ensure accurate unwinding and registration for consistent production.
RUIZHI - RZJD G250J
Price On Request
