Key Technical Aspects:

Dimensions and Specifications : The Stratasys J720 Dental features a build volume of 490 x 390 x 200 mm (x/y/z) with layer thickness as fine as 14 micrometers. The printer dimensions are 1400 x 1260 x 1100 mm (wxhxd), while the material cabinet measures 670 x 1170 x 640 mm. The system weighs 430 kg for the printer and 152 kg for the material cabinet. Operating conditions require a temperature range of 18–25 °C and relative humidity of 30–70% (non-condensing). Power supply supports 100-120 V AC or 220-240 V AC at 50-60 Hz. The machine is certified for CE, FCC, and EAC standards.

Printing Unit : The J720 Dental supports high-resolution printing with three distinct modes: High Speed (up to 3 base resins, 27 µm resolution), High Quality (up to 6 base resins, 14 µm resolution), and Digital Material (up to 6 base resins, 27 µm resolution). Typical accuracy reaches up to 200 µm for full model size, depending on geometry and printing parameters. The system utilizes GrabCAD Print™ software for streamlined workflow management.

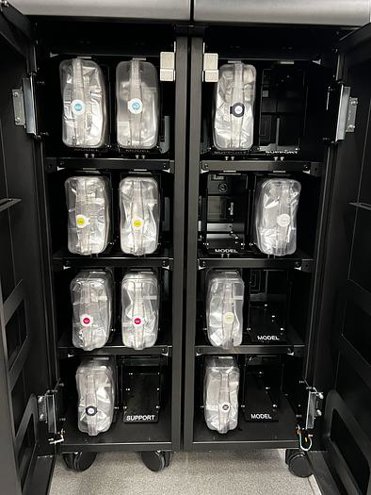

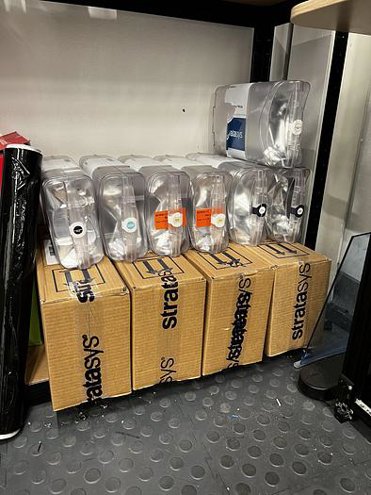

Ink System : The printer accommodates a wide range of dental and multi-material options, including VeroDent (MED670) and VeroDentPlus (MED690) for dental applications, along with the Vero™ family of opaque materials in neutral and vibrant colors (e.g., VeroCyanV™, VeroMagentaV™, VeroYellowV™). Flexible materials such as Tango™ and Agilus30™, as well as transparent VeroClear™, are also supported. Support materials include SUP705™ (water-jet removable) and SUP706B™ (soluble). The system enables the creation of over 500,000 composite materials, including soft fabric simulations with varying Shore A hardness grades.
