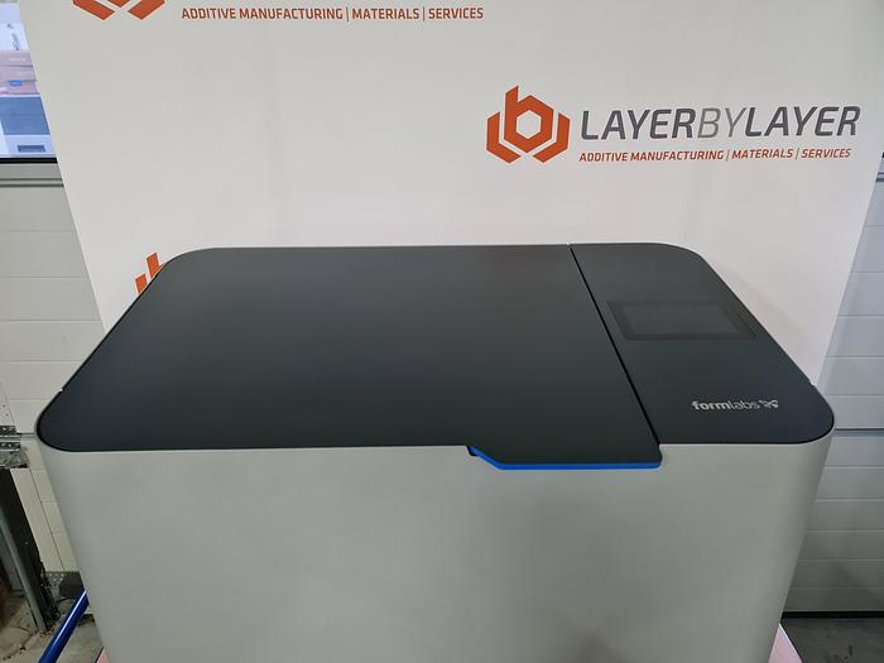

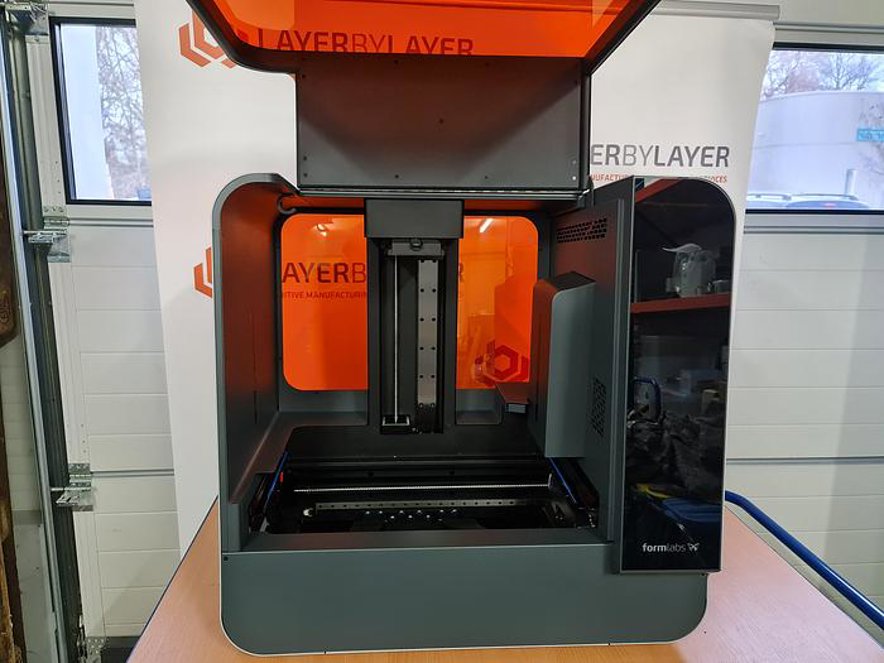

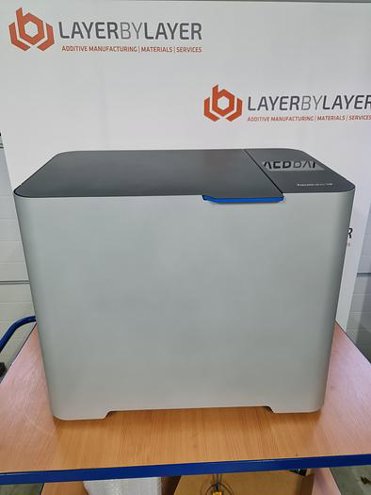

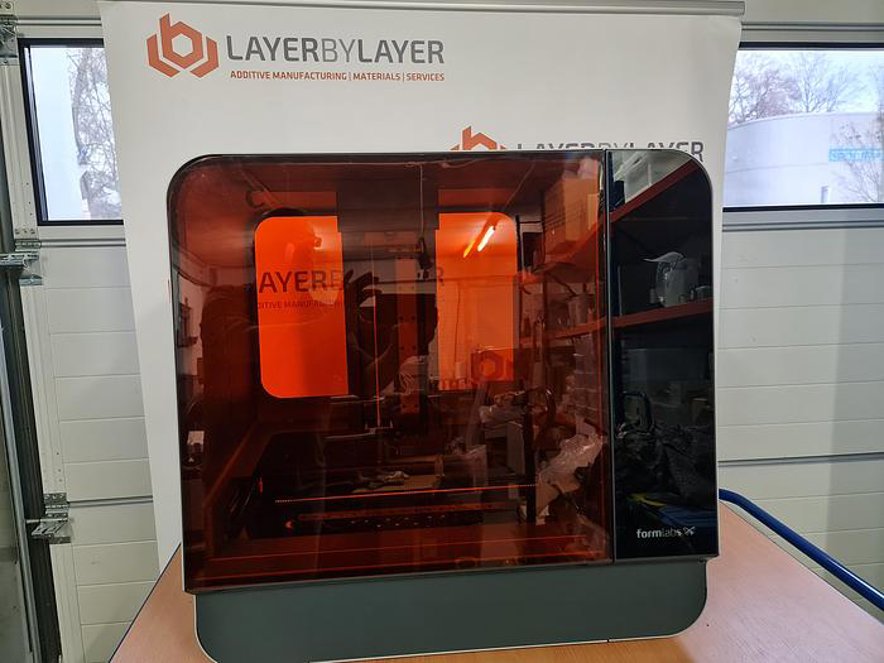

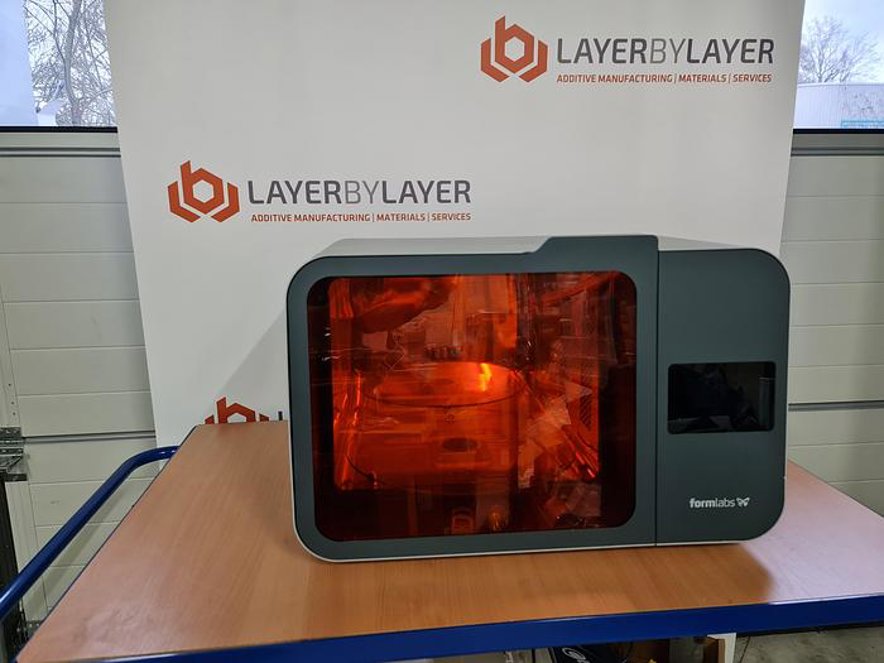

Formlabs - Form 3L
Technical Specifications
| Year | 2022 |
| Machine Condition | In Stock |
Machine Description
nstallation space in mm (x/y/z) 335x200x300.
layer thickness 25-300 microns.
Laser power 2x 250 mW.
Resin refilling automatic or manual Automatically.
Laser spot size 85 microns.
Machine dimensions in mm (wxdxh) 775x520x735.
Weight in kg 48.

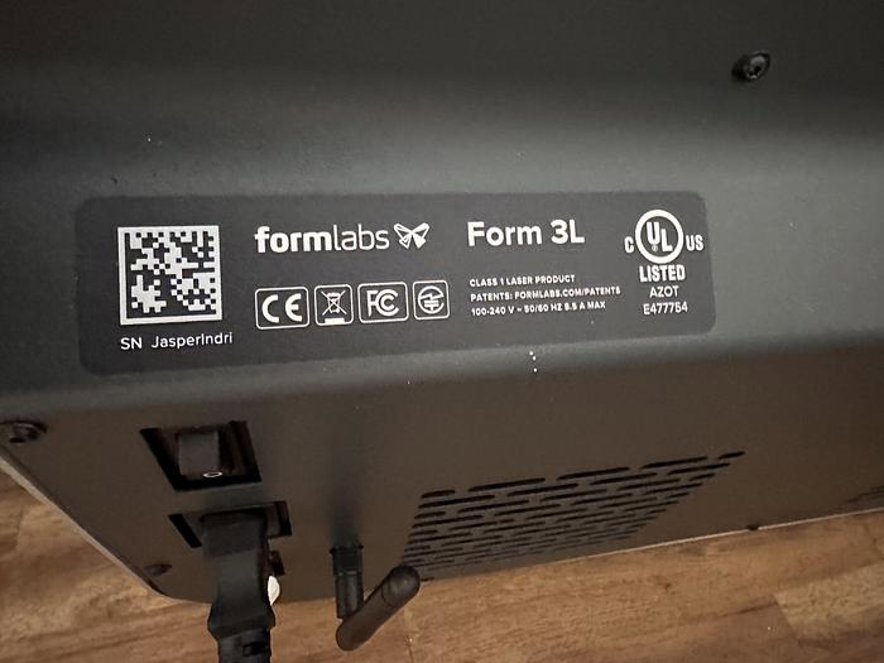

power supply 100-240VAC, 7.5A, 50/60Hz, 650W.
Network connection Wi-Fi (2.4, 5GHz), Ethernet (1000Mbit), USB 2.0.
.
Formlabs Form 3L Wholesome Package including Form Wash L and Form Cure L. All units have very short operating times: approx. 50 hours. Year of manufacture 2022, commissioning October 2022. Accessories: 2L each of Resin Tough 2000, High Temp, Rigid 10K, and a separate tank for each resin type....
The Formlabs Form 3L is a high-precision industrial 3D printer designed for large-format stereolithography (DLP/Micro-SLA) applications. Engineered by Formlabs, this advanced machine delivers exceptional print quality with a layer thickness range of 25-300 microns, making it ideal for prototyping, dental, medical, and manufacturing applications. The Form 3L features dual 250 mW lasers, automatic resin refilling, and a generous build volume of 335x200x300 mm. Its robust construction, network connectivity options, and included post-processing units (Form Wash L and Form Cure L) ensure efficient workflows and high-quality outputs. This package also includes multiple resin types for versatile material options.
Key Technical Aspects:
Dimensions and Specifications : The Form 3L offers an installation space of 335x200x300 mm (x/y/z) with a layer thickness range of 25-300 microns. It features dual 250 mW lasers with an 85-micron laser spot size. The machine dimensions are 775x520x735 mm (wxdxh) and weighs 48 kg. It operates on a 100-240VAC, 7.5A, 50/60Hz power supply (650W) and supports Wi-Fi (2.4, 5GHz), Ethernet (1000Mbit), and USB 2.0 connectivity. Resin refilling is automatic, and the package includes 2L each of Tough 2000, High Temp, and Rigid 10K resins, along with dedicated tanks for each type.
Printing Unit : The Form 3L utilizes a dual-laser system for precise and efficient printing, with a laser spot size of 85 microns. It supports a wide range of layer thicknesses (25-300 microns) to balance speed and detail. The machine includes integrated post-processing units: Form Wash L for cleaning and Form Cure L for UV curing, ensuring streamlined workflows and consistent results.
Formlabs - Form 3L
Price On Request
