Omet
Multiflex 420
1995
Flexo
Max Web Width: 420mm Configuration: Unwinder 5 x Flexo Printing Units 5 x UV dryers 5 x Water drying systems 1 x Killer stickers Printing unit 1 x Rotary die unit 1 x Sheeter unit 1 x Folding unit 1 x Punching unit Rewinder; Accessories: 1x magnetic cylinder (10 1/2” - 11 4/6” - 12” - 13” - 14” - 16 4/8” - 17” - 20” - 21”- 22”) 2x magnetic cylinders (16” - 18” - 19 6/8” - 20 5/8”) 1x printing cylinder (7" 1/2 - 8” 5/8 - 9” 2/8 ) 2x printing cylinders (8” 2/8 - 9" 4/8 - 16” 1/2) 3x printing cylinders (8” 4/8 - 18”) 4x printing cylinders (16” - 17”) 5x printing cylinders (8” - 9” - 19” 6/8 - 20” 5/8) 6x printing cylinders (10”) 9x printing cylinders (13”) 10x printing cylinders (11” - 12” - 14”) 15x printing cylinders (10” 4/8) 1x perforating cylinder (13” - 14” - 16” - 18” - 20” - 21” - 22” - 23” 2/6 - 24”) 20x Anilox (various sizes)
Italy
Nilpeter
F-3300
2002
Flexo
Nilpeter F-3300 Year: 2002 Max size of roll: 340 mm Max printing area: 330 mm 8 colors+ screen Possibility of double-sided printing Cold UV lamps for printing self-adhesive labels and OPP foils Second pass printing device Punk verk roto Automatic register Gear system 1 tooth- 3.175 mm Corona device
Germany
WINDMOLLER & HOLSHER
Soloflex
1997
Flexo
Soloflex printing machine - Type WINDMOLLER & HOLSHER - Model Type: Soloflex 8L - Year: 1997 - Printing units number: 8 printing units - Web width: 850mm - Printing width: 800mm - Printing plate: Sleeves quick change - Anilox: Sleeves quick change - Ink type: Solvent base - Mechanical speed: 250m/min - Printing minimum repeat: 250mm - Printing maximum repeat: 800 mm - Rewinder is auto splicing - Unwinder is auto splicing - Unwider Reel diameter 600 mm - Rewinder reel diameter 600 mm - Web quide BST EKR 1500 - Drying system Electric - Rasters : 28 pcs - Printing sleeves: 15 set * 8 pcs - total 120 pcs - Condition of the machine: installed, in working condition, ready for running - Electric power, electricity specification: 100 kW
Germany
Omet
xFlex X6 430
2017
Flexo
Size 430 mm, Auto tension winder, Servo driven infeed, Servo driven outfeed, Operator interface with color touchscreen, Omet automatic register control, Motorised Video camera, Single drive Coraona treatment, Rotary die cutting / embossing system, 3 x Shaftless and gearsless Flexo printing unitswith sleeve system plate change over, 5 x offset printing units with sleeve technology, 1 x coldfoil unit, 8 x single lamp UV E2C system, Omet Arcs Register control,
Netherlands
Flexotecnica
Ekaton
1997
Flexo
Stack type Printing width:1.700 mm Web width:1.740 mm Printing repeat range 360 ÷ 900 mm Printing cylinders Monolithic type (not sleeve) Anilox rollers Monolithic type (not sleeve) Inks Solvent base and water base unwinder Max diameter on unwinder (mm) Max reel weight on unwinder (kg) Type of rewinder Max diameter on rewinder (mm) Max reel weight on rewinder (kg) Heating system Electric heaters Materials to be printed Paper and plastic films for flexible packaging Several printing cylinders with repeat range 360 ÷ 900 mm; vertical staker for printing cylinders
Netherlands
Edale
Beta 250
2008
Flexo
Eight Colour Flexo Self Adhesive Label Press Max Web width 260 mm Unwind 7 x IR/Hot Air Drying 1 x UV Drying Unit Auto Register System UV Foiling Matrix Foil Rewind Rewind Unit 2 x Rotary Die Stations 8 x 64z cylinders will be supplied with the machine
United Kingdom
Mark Andy
2200
2000
Flexo
10 Colour Max Speed 100 Meters/Min Web Repeat 250mm Full UV all Units Cold Foil Option with Nip & Additional Waste Wind Tower Turner Bar Unwind Lamination Tower Rotary Crush Slitters & Razor Slitter Visitech Fusion Video Inspection Register Control System E-Brick UV Units x 10 2 Waste Rewind towers
United Kingdom
Omet
Flexy FX 255
2000
Flexo
Max Web Width: 255 mm Max Printing Width: 250 Mm Configuration: Unwinder BST Web register control 6 x Flexo Printing Units 6 x UV dryers Delam/Relam Turning Bar Cold foil 2 x die cutting units Rewinder (double shift)
TerniItaly

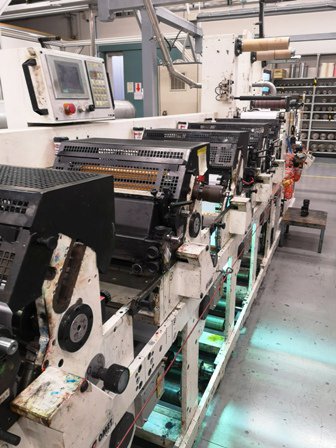

Omet
Flexy 330
2008
Flexo
Max Web Width: 330mm Thickness: from 50 to 350 micron Servo driver Configuration: Unwinder 3 x Corona Treatment 8 x Flexo Printing Units 8 x GEW UV dryers Delam/Relam Cold foil Cooled drums (with chiller) 2 x die cutting units Web video register control Silicone cut. Blade cutting Double Rewinder Accessories: 8 x cylinders Z96,Z144,Z74,Z82 1x magnetic cylinders Z96,Z144 8 x anilox
TerniItaly
Rotatek
RK 250 PLUS
1997
Flexo
Rotary offset press Roll to roll Roll to fold Perfecting bars web width: 500 mm, print width: 480 mm, 4 offset printing units with cooling device Equipsa 4 units 24’ 4 units 17' 4 units 16' 1 BST 1000 web guide Roll 1200 mm with 70 mm axis, Caroll perfo unit 4 UV IST Dryers in delivery Register video control Paper weight 40 – 200 gr Standard electrical supply 380 V/ 50 Hz 3 fases
France
Mark Andy
2200-10
2005
Flexo
Running hours +/- 20.100 hours Maximum width - 10" Inch (254 mm) Number of units - 8 flexo printing units Cilinders with a lot of magnetic cilinders, impression cilinders and anilox rollers etc UV dryer Die cutting
Netherlands
Esko
CDI Spark 2120
2008
Flexo
All digital photopolymer plates, ablative film or polyester-base Letterpress plates Usable plate thickness: 0.030" to 0.100" / 0.76 to 2.54 mm Sizes up to 21" x 20" / 533 x 508 mm or smaller Flexo CTP. Screen rulings: up to 250 lpi, depending on imaging resolution Halftone 1-99% Standard Optics: fully variable from 2000 to 2540 ppi on job-to-job base Grapholas software included. Vacuum compressor
Minsk
Belarus
GiDue
Combat 430
2005
Flexo
7 colors UV 1 6 colors Web wight 430mm Substrate wigght 42 sm 1 rotary punche UV curing Max . Working width 420 mm Max speed 1505 m / min Video print image observation Lamination Matriallaminierung Web turning unit Back print Tools: Printing anilox cilinders and diffrent diameters sleeves cilinders 1 piece web turning device 1 piece of railway video surveillance (BST) 1 piece laminator 1 piece Delam / Relam device 1 piece additional punching 1 piece of chiller rotary Sheeter unit Shreder for waste disposle init
Gliwice
Poland
LeoMat
C330 SFR
2007
Flexo
Leomat C330 SFR, 2007 finishing machine manufactured for blank adhesive labels or printed rolls Servo engine Web width 100 – 330 mm Material thickness 25 – 450 µm Max speed 150 m/min corona Flexo printing unit from Gallus UV system from GEW e-brick Die cutting Matrix winding lamination Crush cut knives Automatic stop when the number of pieces is reached, the end of the roll, the waste flag or a web break. inspection system DST Tubescan Digital Strobe++V register control Label counter
VogteiGermany
Gallus
TCS 250
2002
Flexo
Gallus TCS 250, 2002 Unwind 5 offset 1 varnish 2 foil stamping 1 relief embossing 1 flat bed die-cutting 1 web video winding
VogteiGermany
Gallus
EMS 410
2008
Flexo
2008 GALLUS EMS410 Web width: 410mm, Unwind with roll lift, Splice table, E+L Web Guide, Teknek web cleaner, Corona treater, Delam/Relam, 8 x flexo print stations, 8 x IST UV dryers, 8 x water-cooled chill rolls, Press rail system, Cold foil unit, Lamination unit, Hot foil unit, Web inspection camera, 2 x rotary die stations (1 x Kocher and Beck Gapmaster), Waste rewind, Single rewind unit with lay on roller
United Kingdom
Gallus
EMS-410 SERVO
2004
Flexo
Web width: 420mm. Print width: 410mm. Sensotec automatic register control, Kocker and Beck auto splicing unwind, E+L electronic web guide, Teknek two-sided web cleaner, Arcotec Corona treater, 9 x servo driven flexo print stations, 9 x IST UV dryers, 9 x servo driven water-cooled chill rolls, Press rail system, Lamination unit, 1 x rotary die station with K&B GapMaster, Waste rewind, Magnetic die crane and hoist, BST Video inspection system, Tubescan 100% inspection camera, Exit nip with die slot, Rewind with 2 rewind shafts, Kocker and Beck automatic rewind unit, Touch screen operator control panel, Chiller, Anilox: 20 x anilox, Print cyls: 8x90, 9x92, 8x96, 9x98, 9x100, 7x110, 6x116, 9x126, 9x154, 8x160 Magnetics: 90, 92, 96, 98, 100, 110, 116, 126, 154, 160
United Kingdom
KDO
Seeltec 250
2000
Flexo
KDO Seeltec 250 (2000) Max.Size: 33 x 25 cm (12 x 9 inch) Width 25 cm printing roll to roll cut off max 333mm max diamter roll 76 cm max speed 200m 6 color flexo UV LACK double side printing De lamination Re lamination Lamination Delamination Perfector 3 die cutting Drying GEW UV Drying lack UV
GliwicePoland
