Machine Description

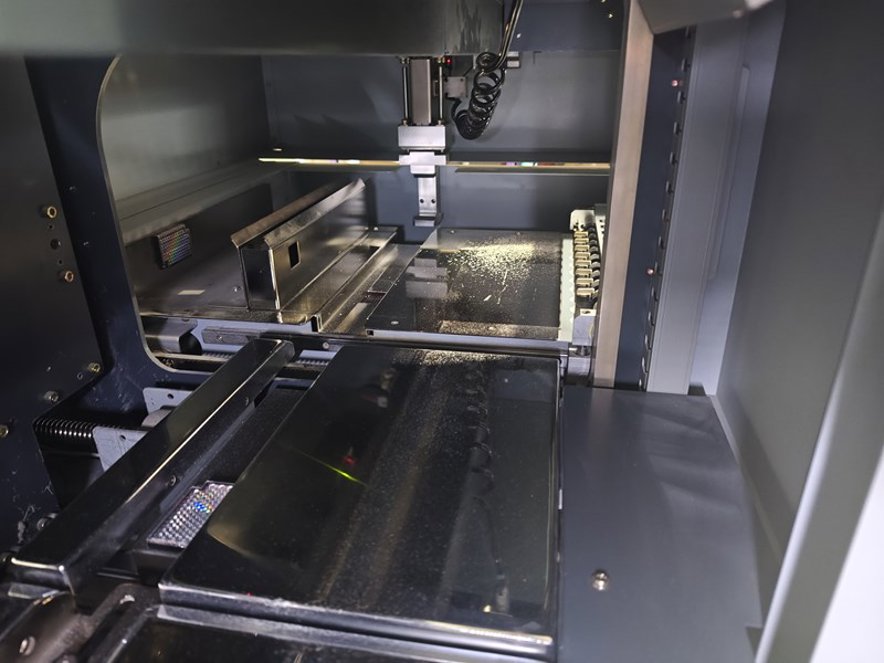

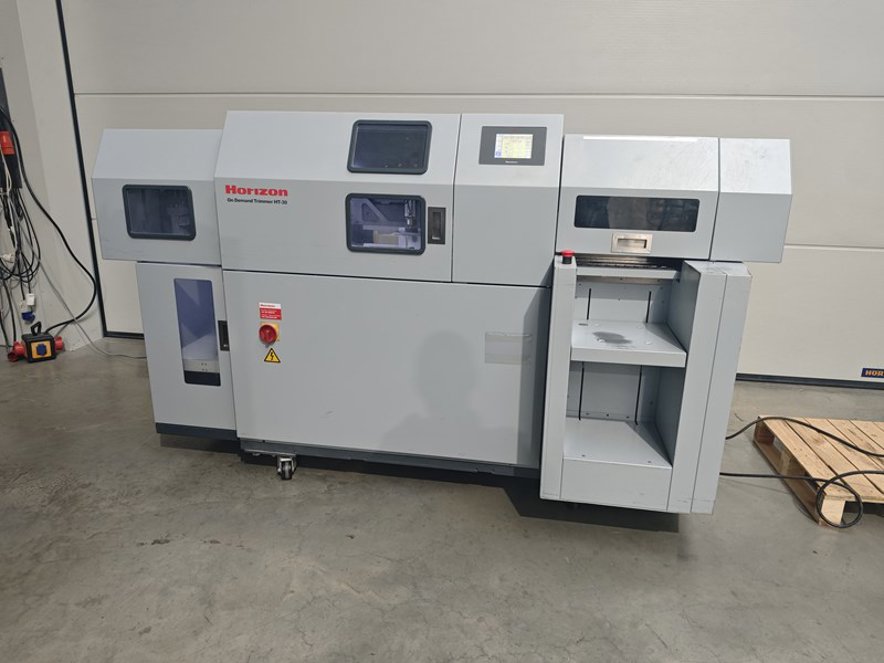

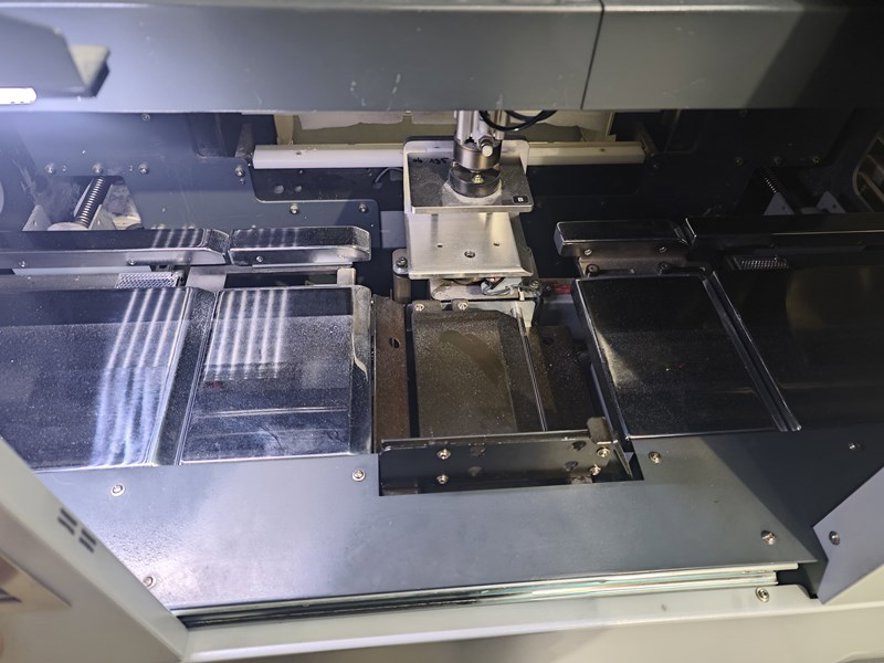

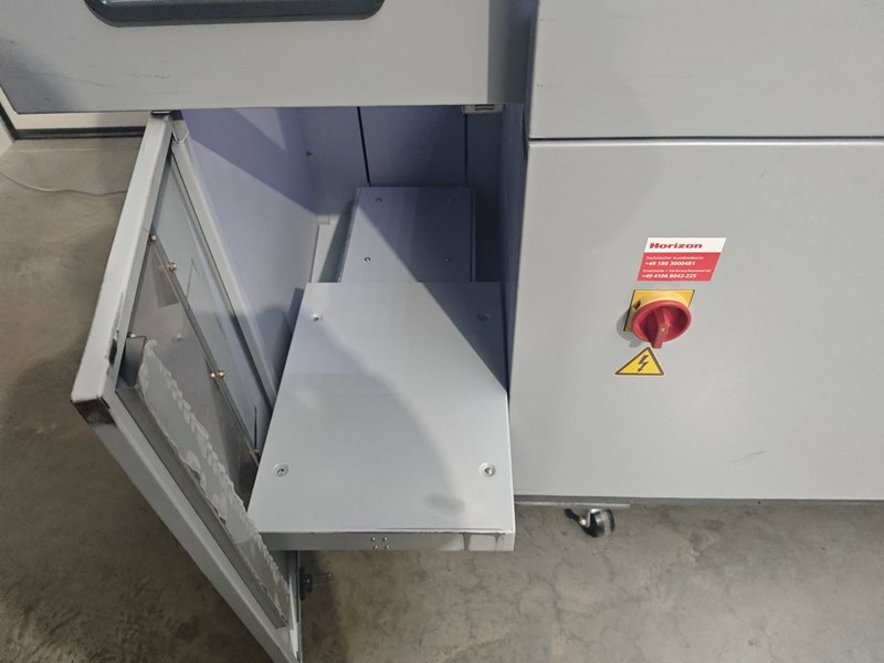

HORIZON HT-30, Three-Side Trimmer, used.
.
The Horizon HT-30 is a highly robust three-side trimmer known for its exceptional reliability, making it one of the most popular machines in print finishing – a guarantee of quality that often sells out quickly due to high demand..
.
.
Key Features:.
- Usage: Solo (offline).
- User-Friendly: Easy settings via touchscreen.
- The Horizon HT-30 cuts books fully automatically, eliminating the need for constant operator presence. After loading the books, the HT-30 signals when cutting is complete, ready for unloading and reloading.
- Memory Function: 40 memory slots for repeat jobs.
- Operation: Stacks and cuts up to 10 copies simultaneously, fully automatic.
- Cutting Process: Knife works in two directions for damage-free cuts.
- Conveyor: Transports trimmed books to a stacking area.
- Durable Construction: Built for long-lasting use.
Specifications:.
- Untrimmed Book Size: Max: 320 x 235 x 51 mm; Min: 152 x 136 x 1 mm.
- Trimmed Book Size: Max: 305 x 230 x 51 mm; Min: 148 x 134 x 1 mm.
- Trim Range: Max: 99 mm; Min: 2 mm.
- Pre-Stack Depth: 300 mm.
- Speed: Up to 520 books per hour.
- Pressure: Max 8 kN.
- Noise Level: Max 70 dB.
- Dimensions: 2,350 x 1,160 x 1,370 mm.
- Power Supply: 400V / 50Hz - 1.25kW.
- Weight: 1,020 kg...
The Horizon HT-30 is a highly reliable three-side trimmer designed for precision book finishing, renowned for its robust construction and efficiency. As a three-knife trimmer, it automates the cutting process for books, magazines, and other bound materials, ensuring clean, damage-free edges with minimal operator intervention. Key features include a user-friendly touchscreen interface, 40 memory slots for repeat jobs, and the ability to stack and cut up to 10 copies simultaneously. With a fully automatic operation, the HT-30 enhances productivity by signaling completion after each cycle, making it ideal for high-volume print finishing applications where consistency and durability are critical.
Key Technical Aspects:
Dimensions and Specifications : The Horizon HT-30 has a maximum untrimmed book size of 320 x 235 x 51 mm and a minimum of 152 x 136 x 1 mm, with trimmed book dimensions ranging from 305 x 230 x 51 mm to 148 x 134 x 1 mm. It offers a trim range of 2 mm to 99 mm, a pre-stack depth of 300 mm, and operates at speeds up to 520 books per hour. The machine exerts a maximum pressure of 8 kN, has a noise level of up to 70 dB, and measures 2,350 x 1,160 x 1,370 mm with a weight of 1,020 kg. It requires a 400V / 50Hz power supply with a 1.25kW rating.
| Model | Horizon-HT-30 |
|---|---|
| Reference Number | 23229 |
| Manufacturer | Horizon |
| Year | 2010 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Im Seelein 8, 97332 Volkach, Germany |
