Machine Description

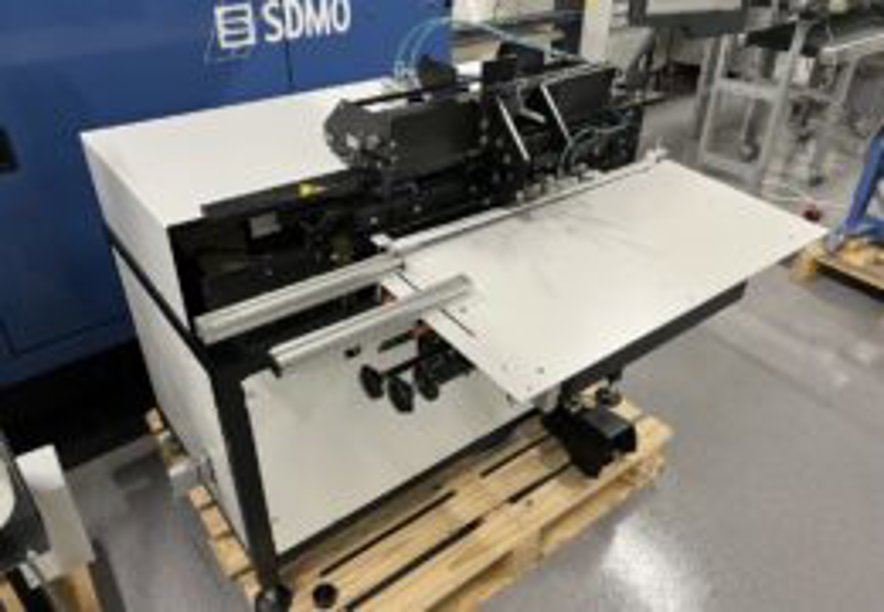

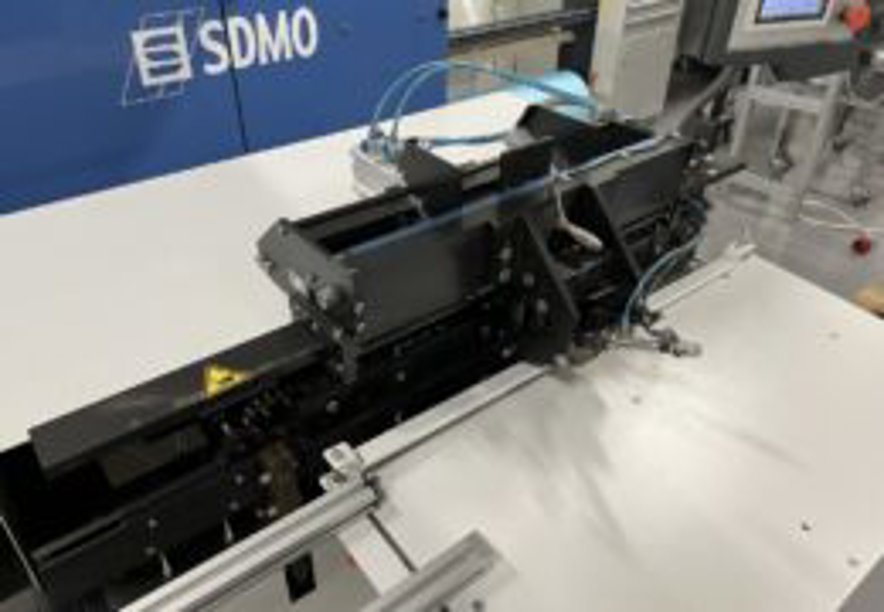

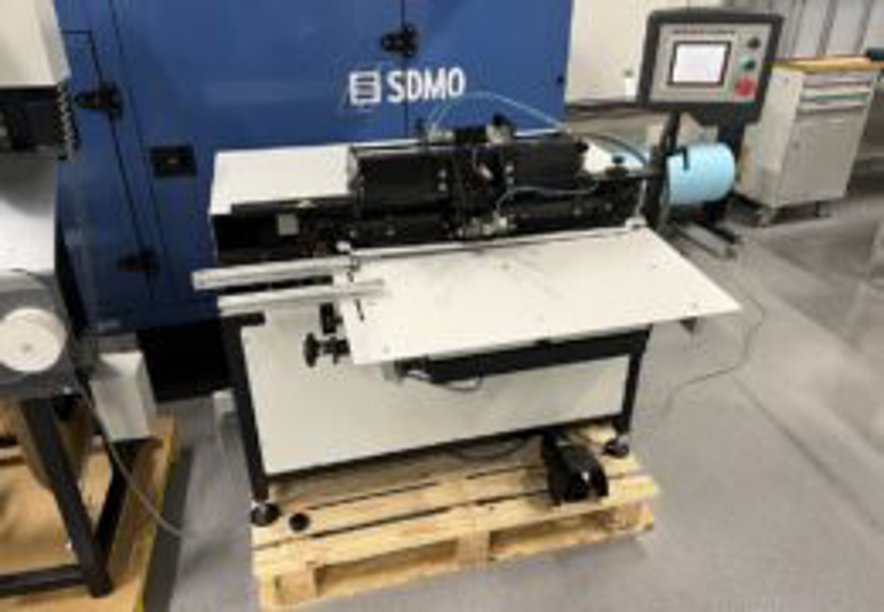

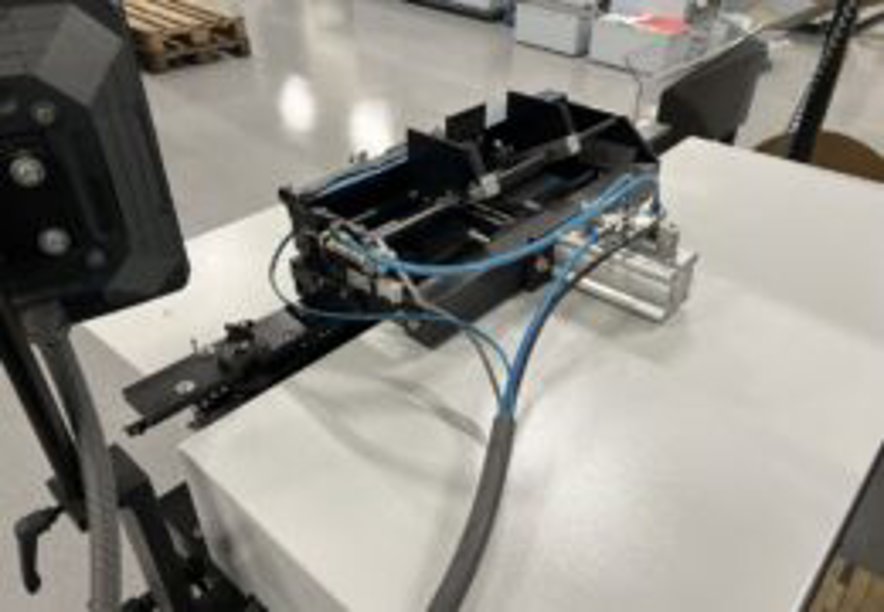

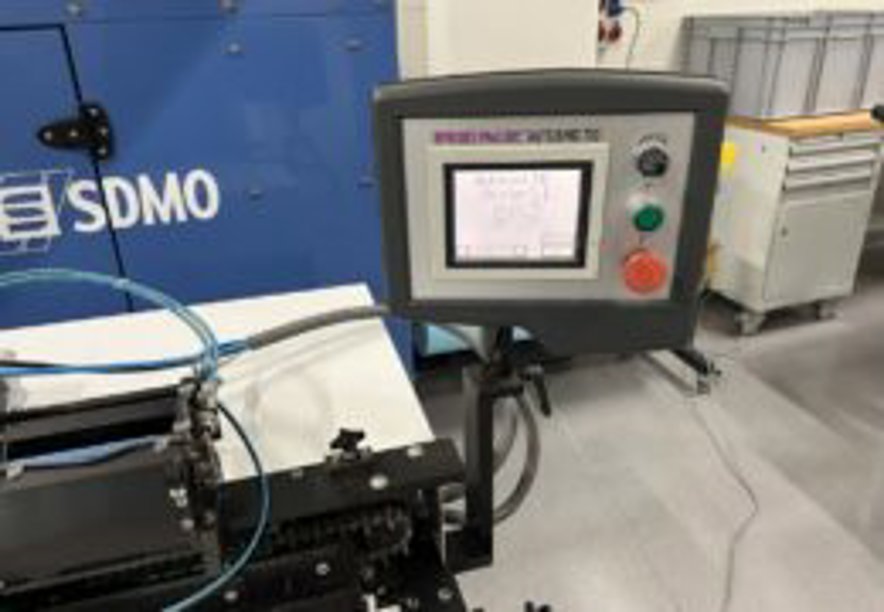

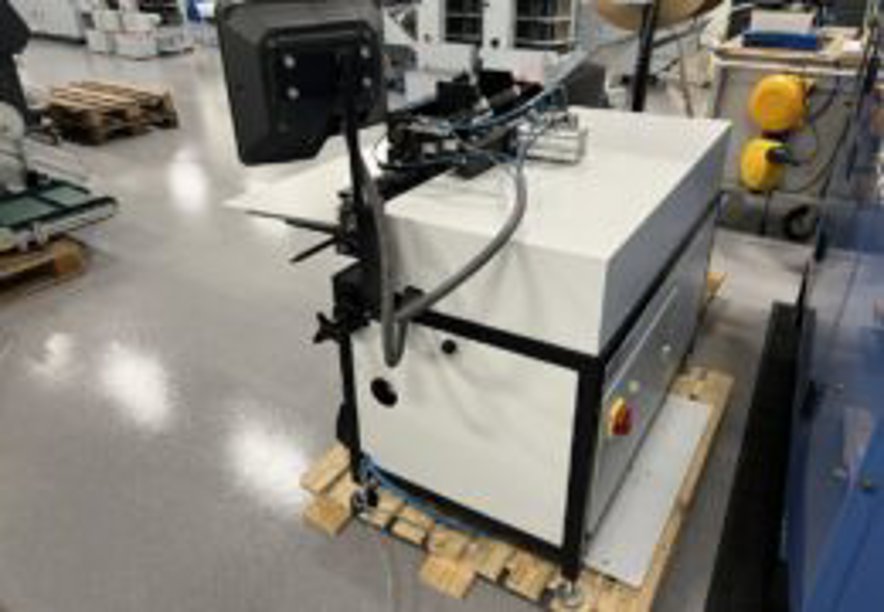

Renz Autobind AB 700 + KAS 500 Semi-Automatic Spiral Binding Machine.
Machine in very good condition, ready to operate..
Efficient semi-automatic machine for the production of calendars, notebooks, and other metal spiral-bound products..
Fast operation.
Spin diameters range from 3/16″ to 1 1/8″.
Working width up to 700 mm.
Crimping thickness approx. 23 mm.
Capacity up to 1200 cycles/hour.
The semi-automatic machine unwinds the spiral from the spool, counts the stitches, cuts the spiral to the pre-set stitch count, and transfers the spiral section to the crimping area..
The operator places the pre-perforated calendar on the table..
The calendar is automatically transferred to the crimping area by pressing the pedal..

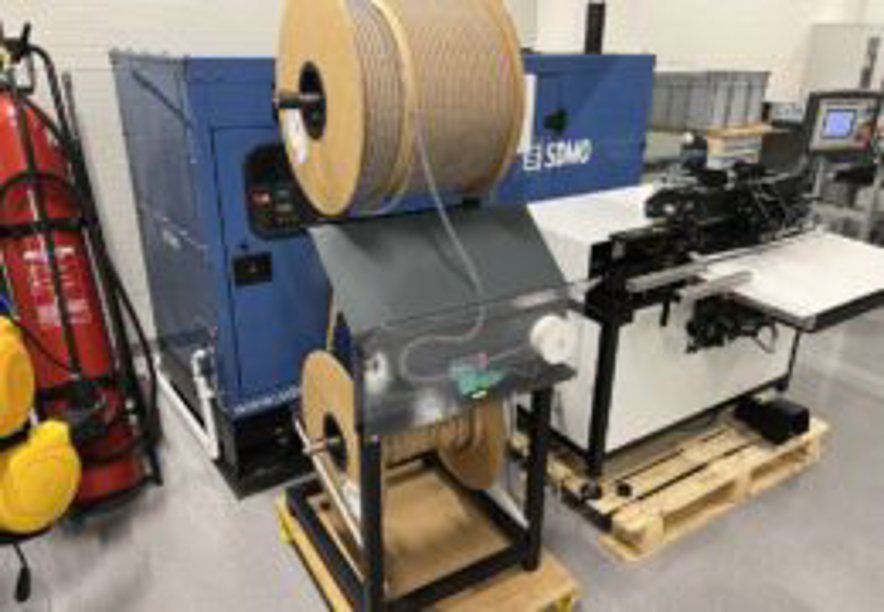

Includes a KAS 500 hanger feeder.
Power supply: 230V + compressed air.
Weight: 615 kg....
The Renz Autobind AB 700 + KAS 500 is a high-performance semi-automatic spiral binding machine designed for efficient production of calendars, notebooks, and other metal spiral-bound products. Known for its fast operation and reliability, this machine offers precise spiral binding with diameters ranging from 3/16″ to 1 1/8″ and a working width of up to 700 mm. The semi-automatic system unwinds, counts, cuts, and crimps spirals with minimal operator intervention, achieving up to 1200 cycles per hour. Ideal for print shops, binderies, and manufacturing facilities, it ensures consistent quality and productivity while reducing manual labor. The included KAS 500 hanger feeder further enhances workflow efficiency.
Key Technical Aspects:
Dimensions and Specifications : The machine has a working width of up to 700 mm and supports spiral diameters from 3/16″ to 1 1/8″. Crimping thickness is approximately 23 mm, with a production capacity of up to 1200 cycles per hour. Powered by 230V and compressed air, the unit weighs 615 kg, ensuring stability during operation.
| Model | RENZ-Autobind AB 700 + KAS 500 |
|---|---|
| Manufacturer | RENZ |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | 20000.00 EUR |
| Location | Tartaczna 12, 26-600 Radom, Poland |
