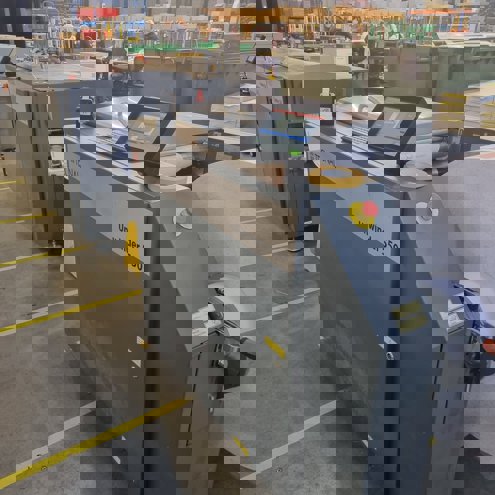

Tecnau - Unwinder 550 with Cutter C 20, SheetFeeder T 20

Machine Description

We are pleased to offer:.
Used Tecnau Unwinder 550 Year 2018.
Specification.
Includes: Cutter C20, SheetFeeder T20.
.
The Unwinder 550 is the ideal solution to feed today’s most advanced digital printers, feed offline high-speed inserters and all standard finishing solutions such as roll to stack, roll to fold and roll to book block solutions..

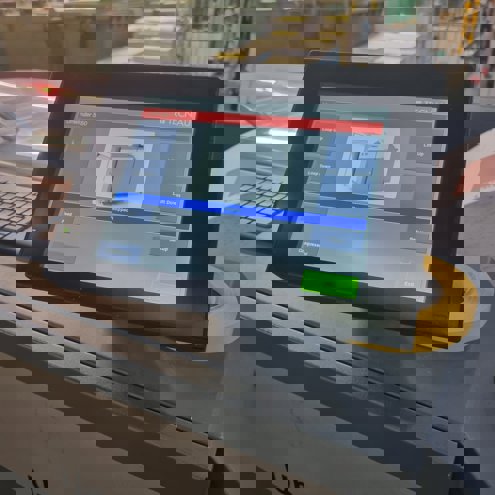

The center-shaft driven Unwinder 550 feeds a roll of paper into the printer for continuous printing. Standard features of the Unwinder 550 include an interactive touch screen display, compatibility with multiple core sizes and an easy-to-use splice station..
The Unwinder can be equipped with an optional splice sensor to automatically detects roll junctions and stop the feeding process to secure the safety of Ink-Jet print heads. The Unwinder 550 can also be equipped with a heavy paper kit to support graphic arts applications such as photo books, calendars, brochures and more..
Speed max.: 600 ft/min - 180 m/min.
Feeding: Pinfed or pinless.
Paper weight: 10.5# bond - 140# index, 40 - 250 gsm.
(above 200 gsm with heavy paper kit and subject to application review).
Roll diameter: 100 mm - 1320 mm or 4” - 52”.
Roll weight max.:1389 lb or 630 kg.
Web width: 155 mm - 520 mm or 6” - 20.5”.
Core sizes: 70, 150, 200 mm or 3”, 5”, 6”.
Temperature: 60 - 80° F or 15 - 27° C.
Acoustics: 65 dB(A).
Humidity: 40 - 60%.
Dimensions Length: inc loop: 1420 mm (1810mm) or 56” (71.3”) / inc loop and max roll: 2310 mm or 91”.
Width: 1140 mm or 44.9”.
Height: excl. display 1085 mm (1265mm) or 42.75” (49.8”).
Weight: 1587 lb or 720 kg.
Colour: Gray.
.
High-speed cutting Cutter c20.
Speed: max. 600 ft/min 180 m/min.
Feeding: Pinfed or pinless.
Web infeed: 1 or 2 with slit merge.
Paper weight: 10.5# bond - 140# index, 40 - 250 gsm.
(paper dependent, above 200 gsm requires application review).
Web width: 140 - 520 mm or 5.5” - 20.5”.
Form length: 89 - 457 mm or 3.5” - 18”.
Delivery height: 950 - 1050 mm or 37.4” - 41.3”.
Gutter cut: 6, 8, 10, 12mm.
Electrical Power: 200 - 240 VAC, 1 phase, 50/60 Hz, 10A.
Consumption: 2250 W (in use) 260 W (idle).
Heat output: 1500 BTU/h.
Temperature: 50° - 90° F or 10° - 32° C.
Acoustics: 75 dB(A).
Humidity: 40 - 60%.
Dimensions: Length: 1170 mm or 45” / Width: 1170 mm or 46”.
Height: excl. display 46” 1170 mm.
Weight: 1067 lb or 485 kg.
Colour: Gray.
.
Transport t20 feeder/by-pass.
Direct connection of c2x cutters to finishing units.
Speed: max. 750 ft/min 228 m/min.
Feeding: Pinfed or pinless.
Paper weight: 10# bond - 112# cover, 40 - 300 gsm.
Media type: Coated and uncoated paper.
Web width: 140 - 520 mm or 5.5” - 20.5”.
Sheet length: 89 - 2500 mm or 3.5” - 99”.
Applications: 1-up, 2-up.
Delivery height: 950 - 1050 mm or 37.4” - 41.3”.
Justification: Left or right edge based on web input (Adjustable to support centre justified following devices).
Temperature: 66 - 84° F or 19 - 29° C.
Acoustics: ~ 70 dB(A).
Humidity: range 50 ± 10% optimum 40% - 80% limit.
Dimensions: Length 773 mm or 31” / Width 1170 mm or 47” / Height 1165 mm or 46”.
Weight: 440 lb or 200 kg.
Color: Dark Grey.
Good working order.
Available immediately.
.
