Machine Description
offer consists of:.
.
- high performance-finisher DocuCutter DC-745.
.

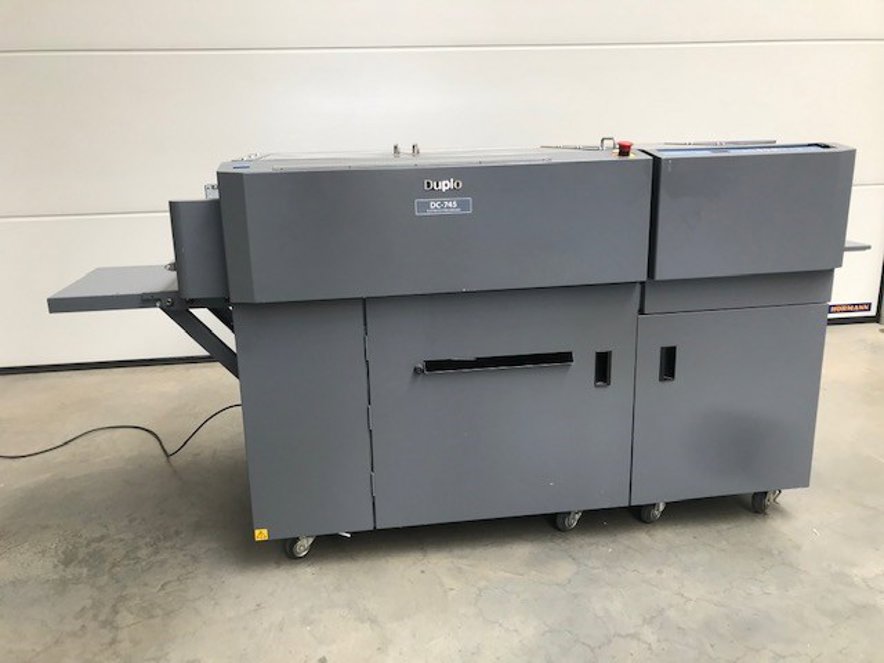

Duplo DocuCutter DC-745.
high performance-finisher for digital color printing:.
.
- feeder:.
air-suction feeder with lining up.

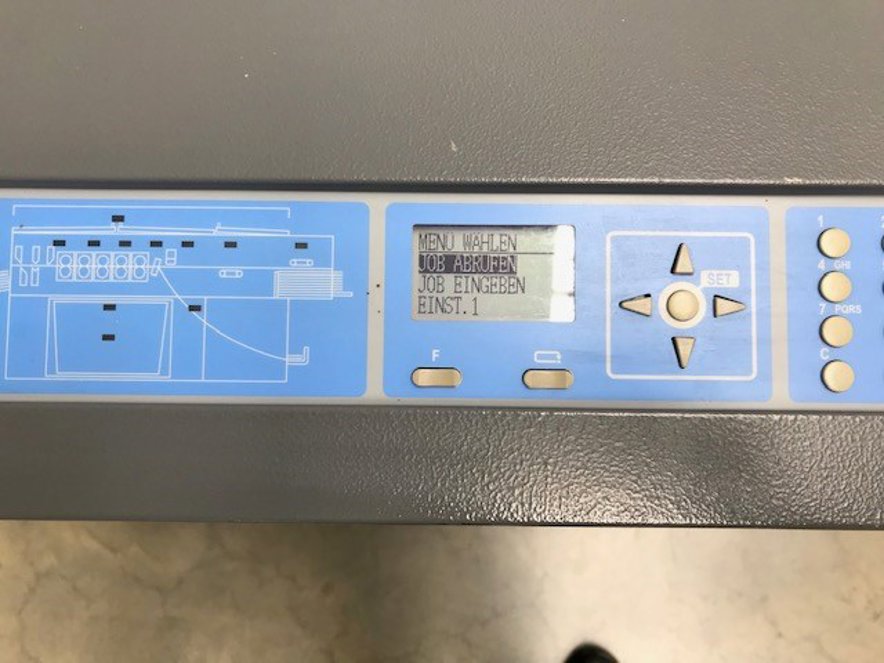

- operation: by LCD-display.
.
- cross-perforation CPM-01.
.
- total paper count: 389.000.
- total cut count: 5.7 mio.
- total crease count: 17.600.
- total count operating hours: 1099h 15min.
- total cross perforating count: 23.400.
.
- saveable jobs: 80 memories for repeat orders.
- error avoidance:.
ultrasonic-doublefeed control.
eject gate.
testprogram.
print mark reader.
.
- integrated knives 6x.
2x edge cut.
4x cutting cards.
.
- size:.
max. 650x370mm.
min. 210x210mm.
.
- paper weight:.
110-350g/qm.
.
- production speed:.
50 sheets/min.
.
- power: 230V / 50Hz / 2,7 A, 550 W.
- dimensions: 3.040x1.020x1.115mm.
- weight: 450kg
| Model | Duplo-DC-745 |
|---|---|
| Manufacturer | Duplo |
| Year | 2011 |
| Machine Availability | Immediately from stock |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Germany |
About Duplo - DC-745
The Duplo DC-745 is a high-performance, high-speed slitter/cutter/creaser machine designed for the graphic arts and printing industries. This versatile machine is capable of slitting, cutting, and creasing a wide range of paper stocks, including coated and uncoated papers, at incredible speeds. The DC-745 is ideal for commercial printers, in-plant printers, and finishing houses looking to increase productivity and efficiency in their finishing operations. Its advanced features and precision engineering make it an excellent choice for producing high-quality finished products, such as business cards, postcards, and brochures.
Key Technical Aspects:
Dimensions and Specifications : The Duplo DC-745 measures 73.6 inches (186.9 cm) in length, 43.3 inches (110 cm) in width, and 55.1 inches (140 cm) in height, with a weight of approximately 2,646 pounds (1,200 kg). It has a maximum sheet size capacity of 24 inches (610 mm) x 29.5 inches (750 mm) and a minimum sheet size capacity of 6 inches (152 mm) x 8 inches (203 mm).
Paper Handling : The DC-745 features a high-capacity feed tray that can hold up to 24 inches (610 mm) of paper in height, allowing for continuous feeding of large paper stocks. The machine is equipped with a precision paper alignment system and an adjustable paper guide to ensure accurate registration and smooth paper flow. The output tray has a capacity of up to 12 inches (305 mm) in height, allowing for efficient stacking of finished products.
Slitting Unit : The DC-745 is equipped with a high-speed slitting unit that can slit paper at speeds of up to 150 feet per minute (45.7 meters per minute). The machine features 10 slitting blades, allowing for precise slitting of paper stocks into multiple strips. The slitting unit is adjustable, enabling users to customize the slitting width to suit their specific needs.
Cutting Unit : The cutting unit of the DC-745 is designed for high-precision cutting of paper stocks. The machine features a high-speed cutting cycle of up to 150 cycles per minute, with a cutting width of up to 24 inches (610 mm). The cutting unit is equipped with a precision cutting blade and a cutting pressure adjustment system, ensuring accurate and clean cuts.
Creasing Unit : The creasing unit of the DC-745 is designed to create precise creases in paper stocks, enabling easy folding and finishing of printed materials. The machine features a high-speed creasing cycle of up to 150 cycles per minute, with a creasing width of up to 24 inches (610 mm). The creasing unit is equipped with a precision creasing blade and a creasing pressure adjustment system, ensuring accurate and consistent creases.
