Machine Description
- high performance-finisher DocuCutter DC-645.
.
Duplo DocuCutter DC-645.
high performance-finisher for digital color printing:.
.
- feeder:.
air-suction feeder with lining up.

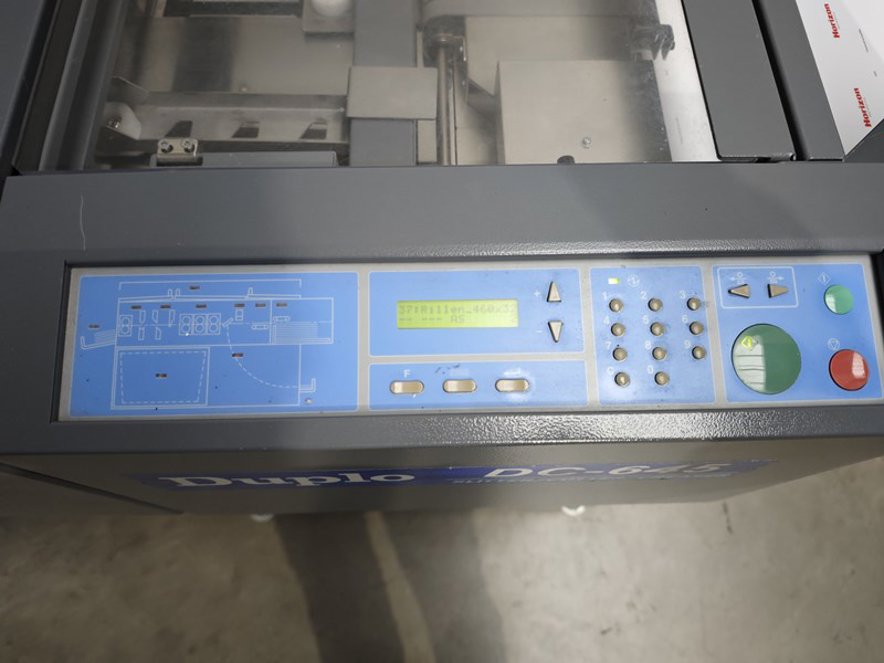

- operation: by LCD-display.
- control: barcode control.
- PC included.
.
- saveable jobs: 80 memories for repeat orders.
- error avoidance:.
ultrasonic-doublefeed control.
eject gate.
testprogram.
print mark reader.
.
.

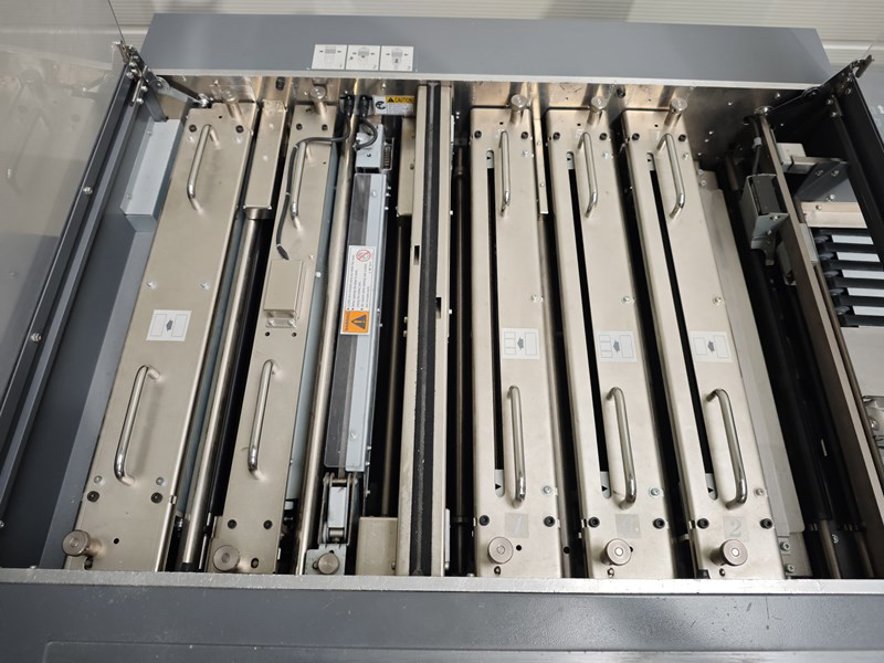

- integrated knives:.
6 lengthwise knives + 1 cross knife.
.
- size:.
max. 650x370mm.
min. 210x210mm.
.
- paper weight:.
110-350g/qm.
.
- loading height: 100mm.
.
- creasing each sheet: max. 10.
.
- production speed:.
max. 1500 sheets/h (A4).
max. 720 sheets/h (A3).
.
- power: 230V / 50Hz - 0,3kW.
- dimensions: 2.240x750x1.115mm.
- weight: 360kg...

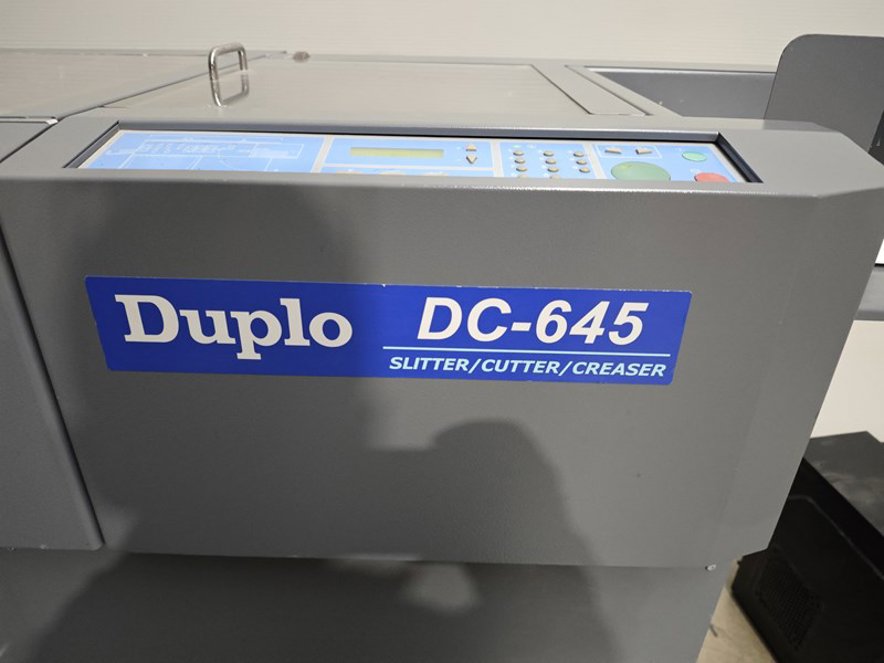

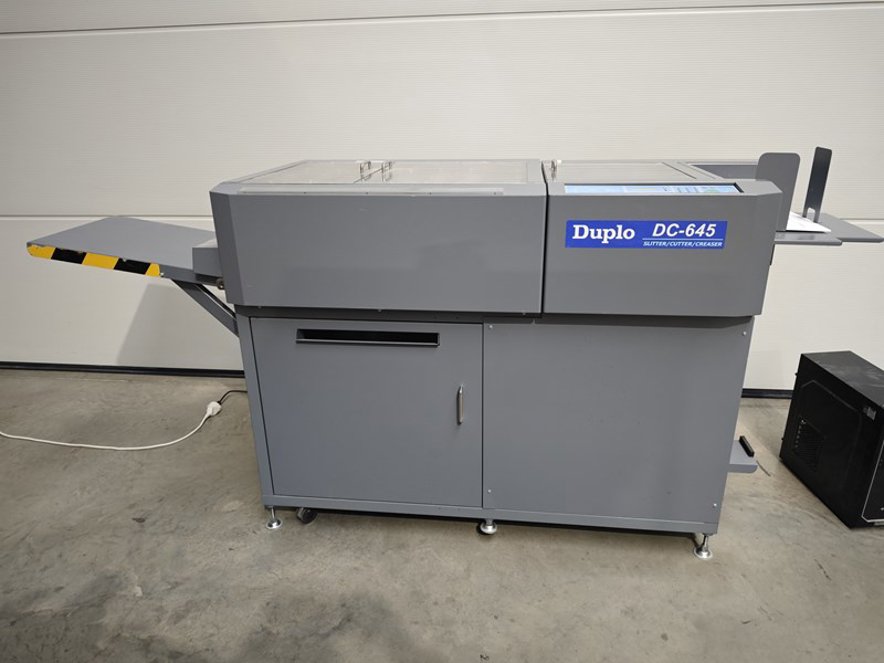

The Duplo DC-645 is a high-performance slitter, cutter, and creaser designed for digital color printing finishing applications. This advanced machine offers precise cutting, slitting, and creasing capabilities, making it ideal for producing professional-quality marketing materials, brochures, business cards, and packaging prototypes. Key features include an air-suction feeder with lining up, LCD-display operation, barcode control, and integrated PC for efficient workflow management. With 80 saveable job memories, ultrasonic double-feed control, and a print mark reader, the DC-645 ensures error-free production and repeat order efficiency. Suitable for commercial printers, in-plant print shops, and packaging producers, this machine delivers reliable performance for medium to high-volume finishing tasks.
Key Technical Aspects:
Dimensions and Specifications : The Duplo DC-645 measures 2,240 x 750 x 1,115 mm (L x W x H) and weighs 360 kg. It operates on 230V / 50Hz power supply with a 0.3 kW power consumption. The machine includes 6 lengthwise knives and 1 cross knife for precise cutting operations.
Paper Handling : The DC-645 features an air-suction feeder with lining up capability, handling sheet sizes from 210 x 210 mm (minimum) to 650 x 370 mm (maximum). It processes paper weights between 110-350 gsm with a maximum loading height of 100 mm. The machine supports creasing of up to 10 creases per sheet and delivers production speeds of up to 1,500 sheets/hour (A4) or 720 sheets/hour (A3). Additional features include ultrasonic double-feed control, eject gate, test program, and print mark reader for error avoidance.
| Model | Duplo-DC-645 |
|---|---|
| Reference Number | 23214 |
| Manufacturer | Duplo |
| Year | 2008 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Im Seelein 8, 97332 Volkach, Germany |
Duplo - DC-645
