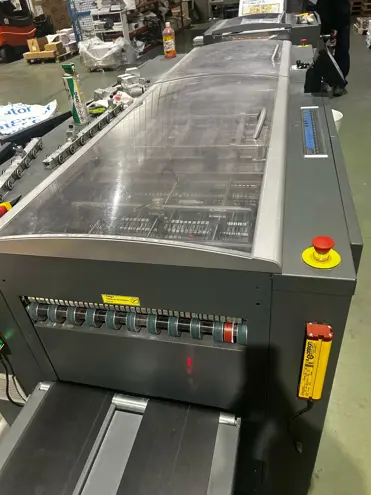

Tecnau - 562

Machine Description

Feeding from a continuous paper roll with or without feeders (pinfed or pinless).
.
Cross and edge cutting with a Tecnau Cutter C562 knife cutter.
.
Stacking with a Tecnau Stacker S566 stacker.
.
Delivery in stacks of cut sheets onto a Tecnau DT 1.2 m delivery conveyor..
.
Paper: with and without feeds (pinfed and pinless).
.
Coils: Coil core: 70 mm, Outer diameter: 4 – 52 inches.
.
Paper width: 140 – 520 mm.
.
Cut paper length: 3.5 inches – 19.5 inches.
.
Paper weight: 40 – 200 g/sqm.
.
Stacks (s566): Stack height: up to 250 mm; cut paper length: max. 19.5 inches.
.
Backlash: 15 mm (optical mark selective or fixed).
.
Speed: up to 130 m/minute.
.
Supply voltage: 220 V – 50 Hz (with ground).
.
Unwind u550 Unwinder.
.
Reel diameter: 4" – 52".
.
Reel weight: max. 630 kg.
.
Cutter c562.
.
Cutting length: 3.5" – 19.5".
.
Backlash: 15 mm.
.
Feed: 1/6", 1/8".
.
Vertical Stacker s566.
.
Delivery Height: 650 – 750 mm.
.
Stack Length: up to 19.5 inches (sheet length).
.
Stack Height: 1 sheet – 250 mm.
DT 1.2 m Delivery Table.
.
Stack speed: 6 – 21 m/minute
