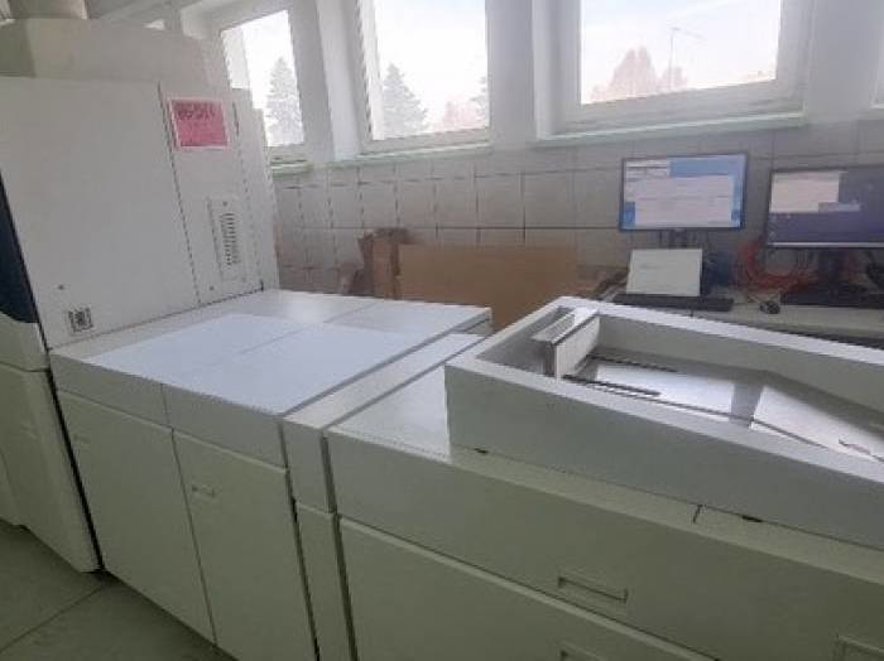

Xerox - iGen 150

Key Technical Aspects:

Dimensions and Specifications : The Xerox iGen 150 has a footprint of 23.6 x 34.6 inches (600 x 880 mm) and a height of 64.2 inches (1630 mm). It weighs approximately 4,400 pounds (2,000 kg) and has a maximum power consumption of 20 kW. The press has a maximum sheet size of 14.33 x 20.47 inches (364 x 520 mm) and a minimum sheet size of 7.87 x 10.63 inches (200 x 270 mm).

Paper Handling : The iGen 150 features a dual-paper-path design, allowing for simultaneous printing on two different paper stocks. It has a maximum input capacity of 12,000 sheets, with six input trays that can hold up to 2,000 sheets each. The press also features an optional high-capacity feeder that can hold up to 5,000 sheets. The output capacity is 5,000 sheets, with an optional finisher that can handle up to 10,000 sheets per hour.

Printing Unit : The Xerox iGen 150 uses Xerox's proprietary Emulsion Aggregate (EA) toner technology, which provides high-quality images with a resolution of up to 2,400 x 2,400 dpi. The press has a print speed of up to 150 pages per minute (ppm) in color and 180 ppm in black and white. It supports a wide range of media, including coated and uncoated papers, labels, and specialty stocks.

Ink System : The iGen 150 uses dry toner, which is a non-toxic and environmentally friendly printing technology. The toner cartridges have a capacity of up to 30,000 pages, depending on the coverage area and print mode.

Plate Cylinder : The plate cylinder is not applicable to the Xerox iGen 150, as it is a digital press that does not use traditional printing plates. Instead, it uses a belt-based imaging system to transfer the toner image to the paper.
