Shinohara - 75 IV-P

Key Technical Aspects:

Dimensions and Specifications : The Shinohara 75 IV-P has a length of 7,500 mm, a width of 2,300 mm, and a height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum printing speed of 15,000 sheets per hour. The press has a maximum sheet size of 750 x 1,050 mm and a minimum sheet size of 350 x 500 mm.

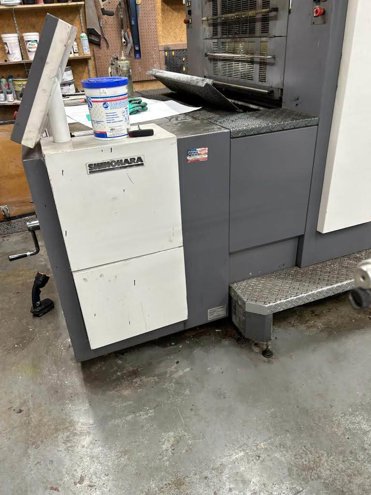

Paper Handling : The Shinohara 75 IV-P features a advanced paper handling system, including a high-capacity feeder with a maximum pile height of 1,500 mm and a sheet capacity of 5,000 sheets. The press is equipped with a double-sheet detection system and an anti-static device to prevent sheet sticking. The delivery system features a jogger and a stacker, allowing for efficient and organized sheet collection.

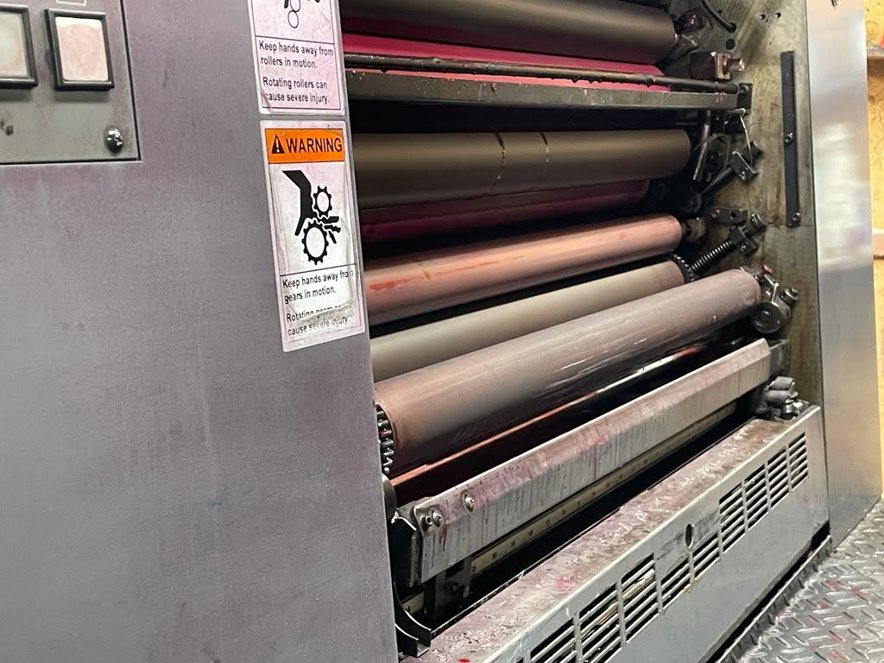

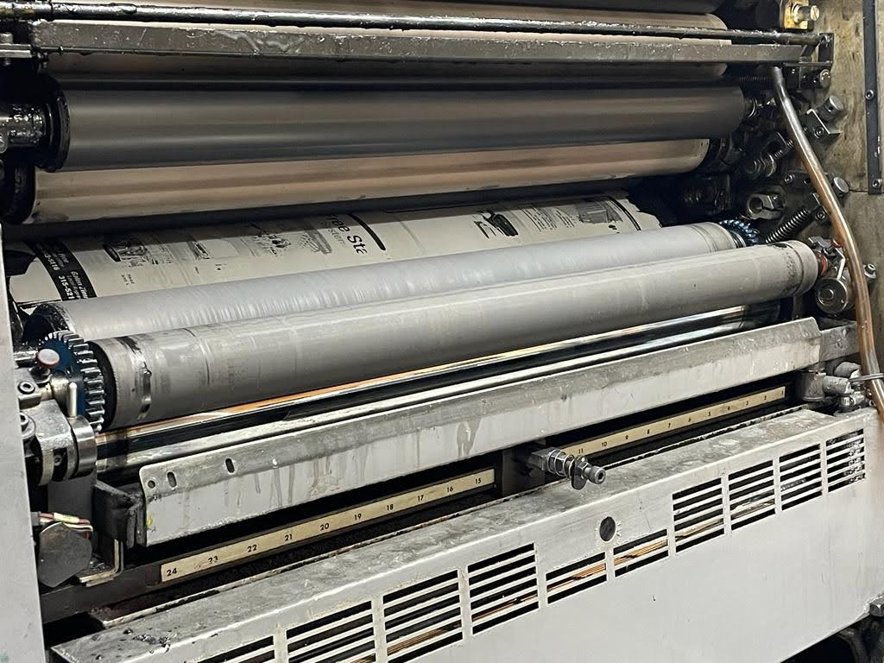

Printing Unit : The printing unit of the Shinohara 75 IV-P features a maximum printing speed of 15,000 sheets per hour and a maximum printing pressure of 400 kg/cm². The press uses a conventional offset printing process with a maximum resolution of 300 lpi. The printing unit is equipped with a precision registration system, ensuring accurate color-to-color registration and minimal waste.

Ink System : The Shinohara 75 IV-P uses a conventional offset ink system, with a maximum ink capacity of 20 kg per color. The press features a ink fountain with a automatic ink supply system, ensuring consistent ink flow and minimizing waste. The ink system is also equipped with an ink temperature control system, allowing for optimal ink viscosity and print quality.

Plate Cylinder : The plate cylinder of the Shinohara 75 IV-P has a diameter of 750 mm and a circumference of 2,356 mm. The plate cylinder is equipped with a automatic plate changing system, allowing for quick and efficient plate changes. The plate cylinder is also equipped with a precision registration system, ensuring accurate plate-to-plate registration and minimal waste.
