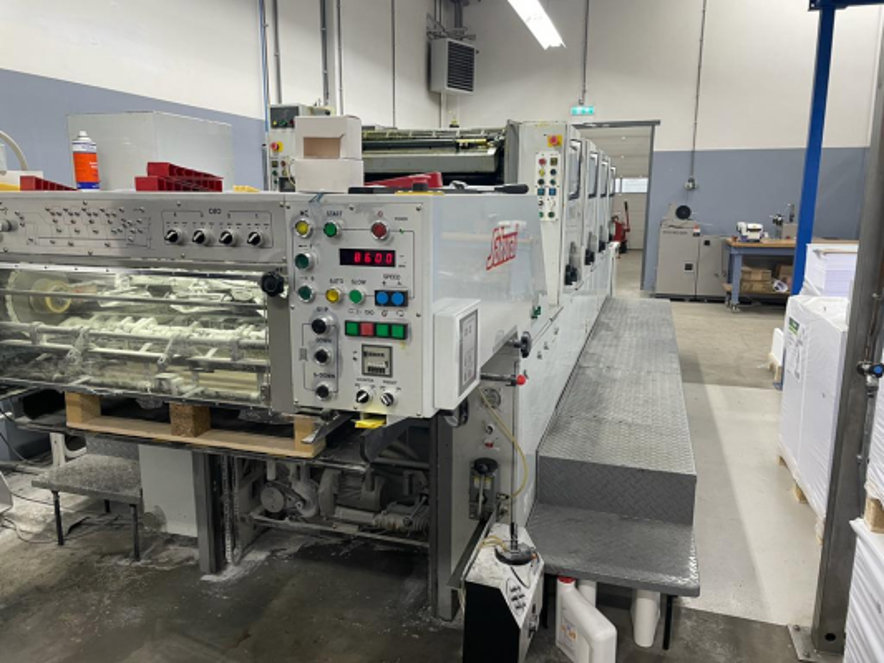

Shinohara - 52 IV HP

Sheet Fed / Offset Shinohara 52 IV HP
Sheet Fed / Offset Shinohara 52 IV HP
Sheet Fed / Offset Shinohara 52 IV HP
Sheet Fed / Offset Shinohara 52 IV HP
Sheet Fed / Offset Shinohara 52 IV HP
Sheet Fed / Offset Shinohara 52 IV HP
Sheet Fed / Offset Shinohara 52 IV HP

Machine Specification

FeaturesValue
Number of colours4
Max sheet size20.47X28.35 inch | 52x72 cm

Machine Description

Ink and register control, Alcohol dampening, MGE Cooling and recirculation device, Semi automatic plate change, Blanket wash, Double sized impression cylinders, Weko T77c powderspray, High pile delivery

ModelShinohara-52 IV HP
ManufacturerShinohara
Year2004
Machine AvailabilityImmediately from stock
Machine ConditionIn Stock
PriceOn Request
LocationNetherlands

About Shinohara - 52 IV HP

The Shinohara 52 IV HP is a high-performance, sheet-fed offset printing press designed for commercial and industrial printing applications. This machine is categorized as a medium-format press, ideal for printing a wide range of materials, including paper, board, and specialty substrates. Key features of the Shinohara 52 IV HP include its high-speed printing capabilities, advanced paper handling system, and precise registration control. The benefits of this press include high-quality print output, increased productivity, and reduced downtime. Typical applications for the Shinohara 52 IV HP include commercial printing, packaging, and label printing.

Key Technical Aspects:

Dimensions and Specifications : The Shinohara 52 IV HP has a length of 5,500 mm, a width of 1,800 mm, and a height of 1,900 mm. The machine weighs approximately 4,500 kg and has a maximum printing speed of 15,000 sheets per hour. The press has a maximum sheet size of 520 x 740 mm and a minimum sheet size of 350 x 500 mm.

Paper Handling : The Shinohara 52 IV HP features a advanced paper handling system, including a high-capacity feeder with a maximum pile height of 1,200 mm and a sheet capacity of 5,000 sheets. The press is equipped with a double-sheet detection system and an anti-static device to prevent sheet sticking. The delivery system features a jogger and a stacker with a maximum pile height of 1,000 mm.

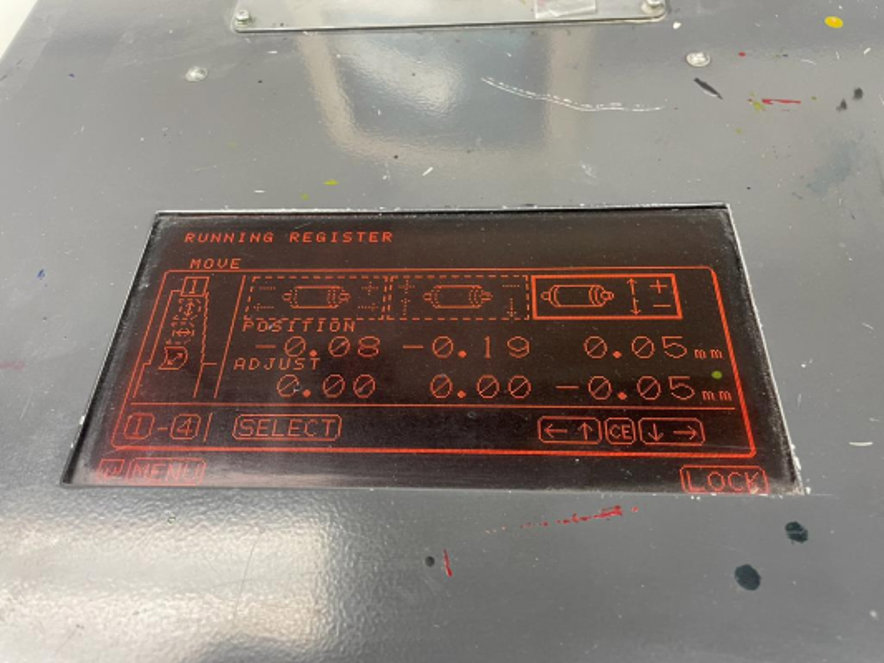

Printing Unit : The printing unit of the Shinohara 52 IV HP features a maximum printing speed of 15,000 sheets per hour and a printing resolution of 300 lpi. The press uses a conventional offset printing technology with a maximum printing area of 520 x 740 mm. The machine is equipped with a precision registration system, including a lateral and longitudinal registration system.

Ink System : The Shinohara 52 IV HP features a high-performance ink system, including a ink fountain with a maximum ink volume of 20 kg and an ink temperature control system. The press uses a conventional offset ink, and the ink system is equipped with an ink recycling system to reduce waste and minimize environmental impact.

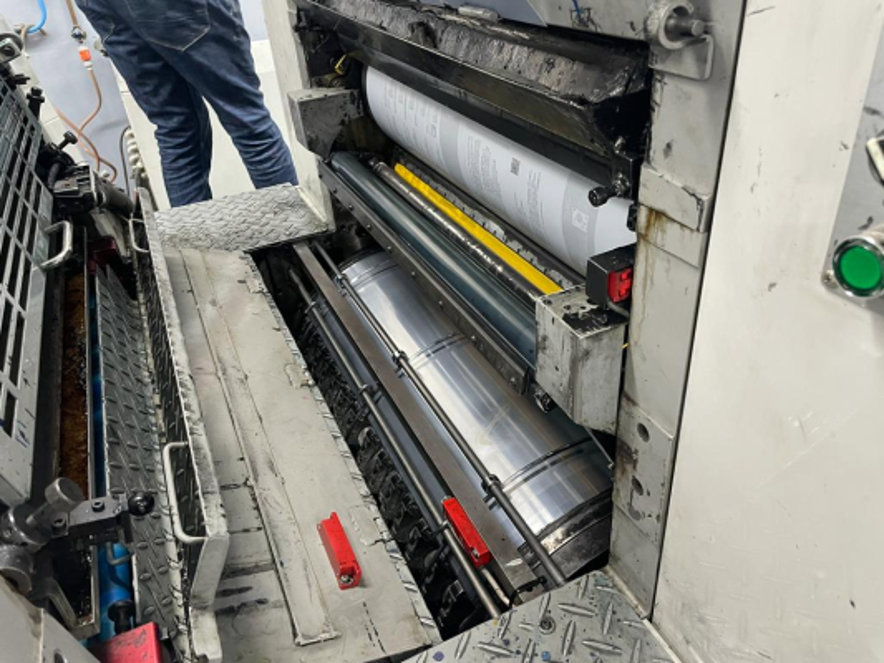

Plate Cylinder : The plate cylinder of the Shinohara 52 IV HP has a diameter of 520 mm and a circumference of 1,640 mm. The plate cylinder is equipped with a precision plate locking system and a plate changing system, allowing for quick and easy plate changes. The plate cylinder is designed for high-quality printing and precise registration control.
