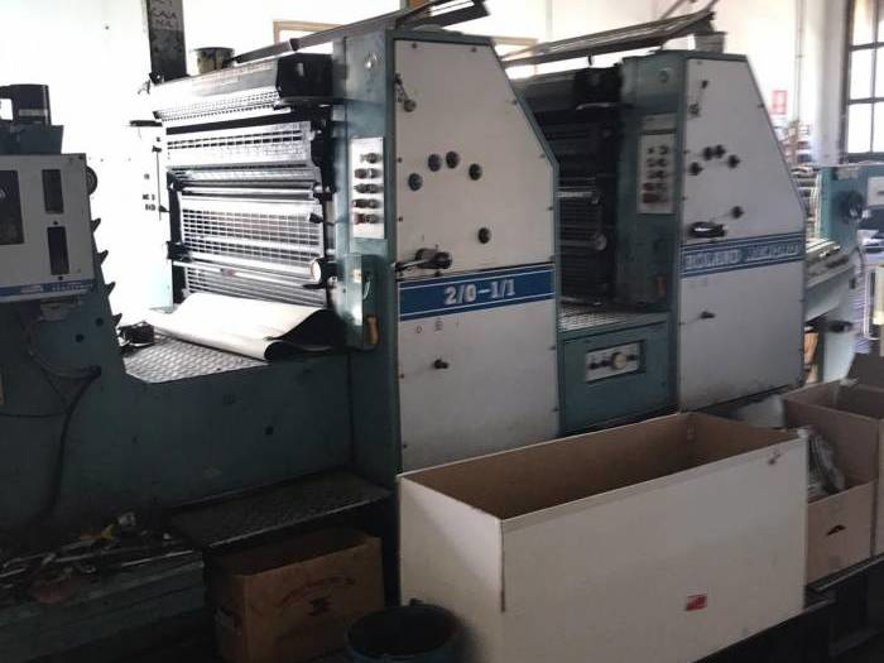

Manroland - Rekord RZK 3B

Key Technical Aspects:

Dimensions and Specifications : The Manroland Rekord RZK 3B has a length of 23.62 ft (7.2 m), a width of 6.56 ft (2 m), and a height of 7.38 ft (2.25 m). It weighs approximately 44,000 lbs (20,000 kg) and has a maximum sheet size capacity of 28.35 x 40.16 in (720 x 1020 mm).

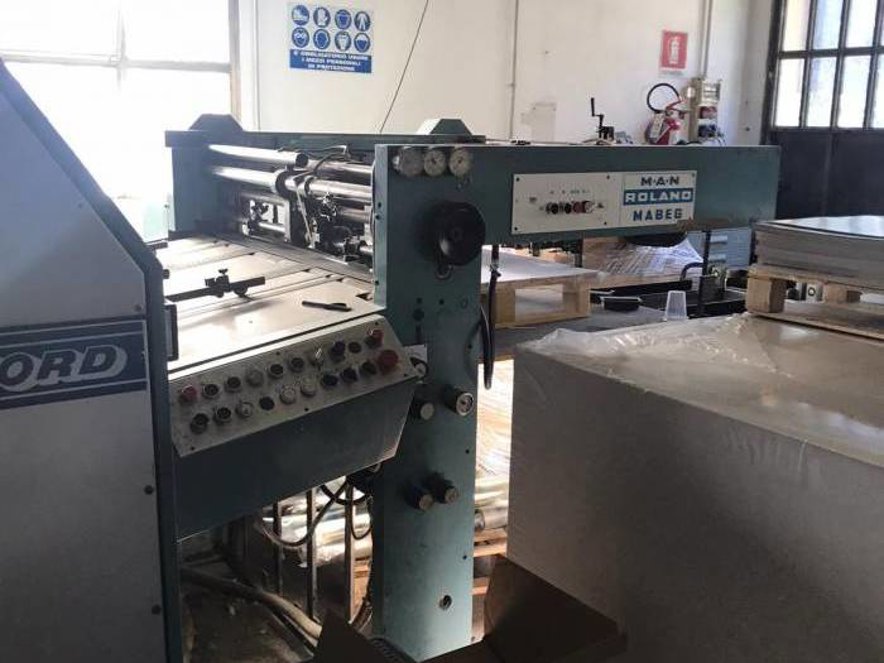

Paper Handling : The RZK 3B features a high-capacity feeder with a maximum pile height of 31.5 in (800 mm) and a sheet thickness range of 0.06-0.6 mm. The machine is equipped with a double-sheet detection system and an anti-static device to ensure smooth paper flow. The delivery section has a maximum pile height of 39.37 in (1000 mm) and is equipped with a jogger and a pile transport system.

Printing Unit : The printing unit of the RZK 3B is equipped with three-color decks, each with a maximum printing speed of 15,000 sheets per hour. The machine features a maximum printing area of 28.35 x 40.16 in (720 x 1020 mm) and a minimum printing area of 12.6 x 18.11 in (320 x 460 mm). The printing unit uses a three-cylinder arrangement with a transfer cylinder, an impression cylinder, and a plate cylinder.

Ink System : The RZK 3B uses a high-precision ink system with a three-roller inking system and a ink fountain with a capacity of 11.35 gal (43 liters). The machine is equipped with an automatic ink supply system and an ink temperature control system.

Plate Cylinder : The plate cylinder of the RZK 3B has a diameter of 4.33 ft (1.32 m) and a circumference of 13.45 ft (4.1 m). It features a plate clamping system with a maximum plate thickness of 0.12 in (3 mm) and a minimum plate thickness of 0.04 in (1 mm). The plate cylinder is equipped with a plate changing system and a plate cleaning system.
