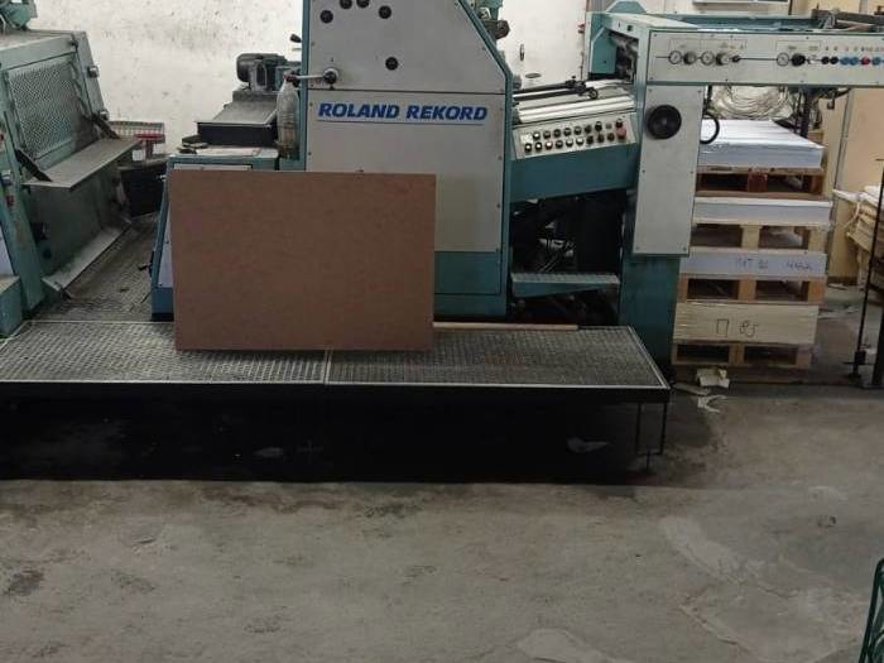

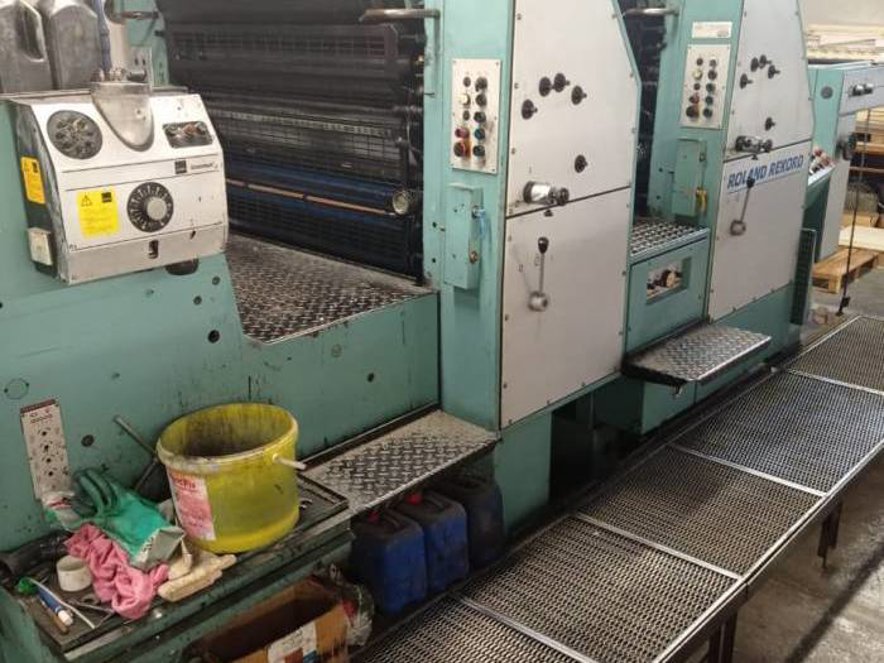

Manroland - Rekord RVK

Key Technical Aspects:

Dimensions and Specifications : The Manroland Rekord RVK has a length of 6,300 mm, a width of 2,300 mm, and a height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum sheet size capacity of 720 x 1,020 mm.

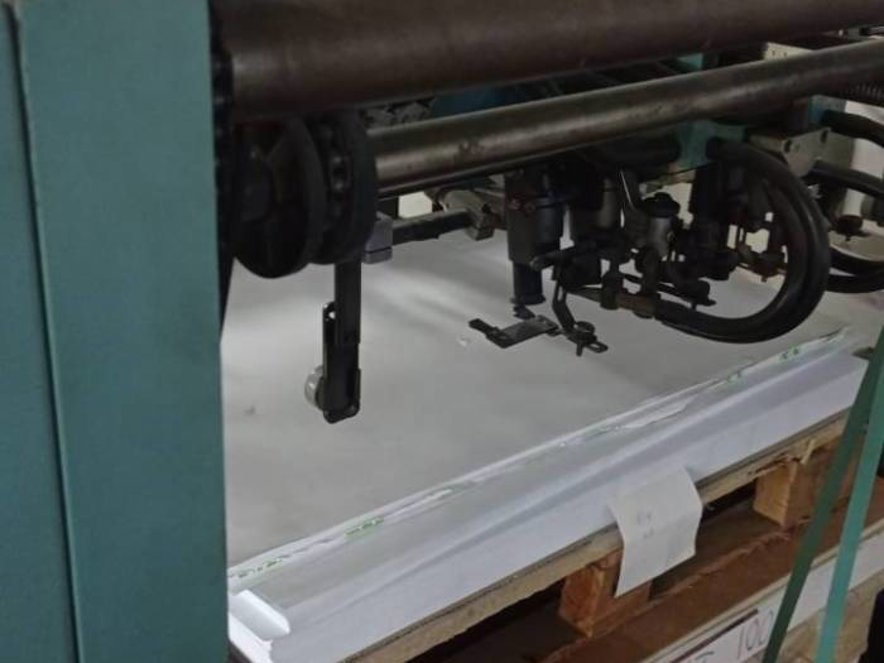

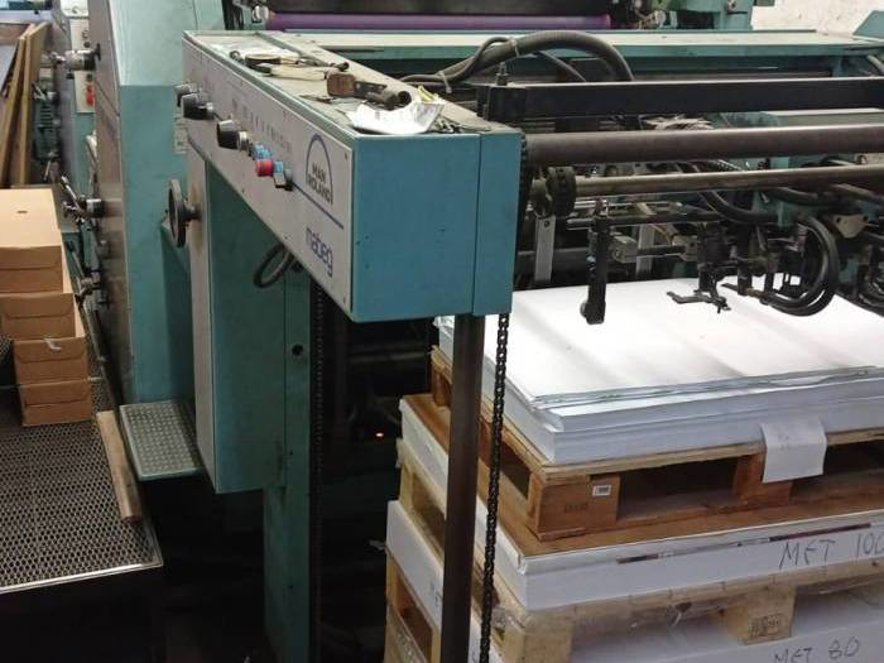

Paper Handling : The RVK features a high-capacity feeder with a maximum pile height of 1,200 mm, allowing for efficient handling of large print runs. The machine is equipped with a dual-circuit sheet transport system, ensuring precise registration and smooth sheet flow. The delivery section features a high-speed pile turner and a jogger for precise sheet alignment.

Printing Unit : The Manroland Rekord RVK is equipped with a high-speed printing unit capable of producing up to 18,000 sheets per hour. The machine features a maximum printing pressure of 400 kN and a printing resolution of 300 lpi. The printing unit utilizes advanced Alcolor dampening and inking systems, ensuring consistent and high-quality output.

Ink System : The RVK uses a high-performance ink system with a maximum ink flow rate of 1,200 ml/min. The machine is equipped with a 12-roller inking system, featuring a combination of steel and rubber rollers for optimal ink transfer. The ink system also includes an automatic ink supply and washing system for efficient maintenance and reduced downtime.

Plate Cylinder : The plate cylinder on the Manroland Rekord RVK has a diameter of 1,200 mm and a circumference of 3,770 mm. The cylinder features a precision-ground surface and is designed for high-speed printing applications. The plate cylinder is equipped with a pneumatic clamping system, ensuring fast and secure plate changes.
