Manroland - R 804-5

Sheet Fed / Offset Manroland R 804-5
Sheet Fed / Offset Manroland R 804-5
Sheet Fed / Offset Manroland R 804-5
Sheet Fed / Offset Manroland R 804-5

Machine Specification

FeaturesValue
Number of colours4
Max sheet size35.04X49.61 inch | 89x126 cm

Machine Description

Man-Roland 804-5.
Age: 1983.
Max.Size: 126 x 89 cm (49 x 35 inch).
Colors: 4.
Impress.Count: 70 mio.
.

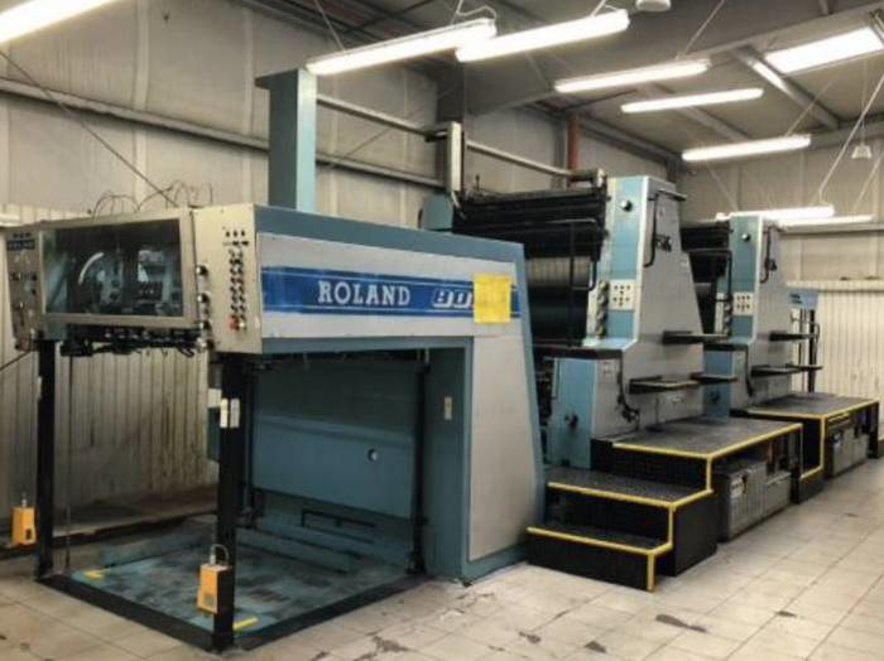

4-colours straight sheet-fed offset press;.
Year: 1983;.
Impression count: ca. 70.5 mio. imps..
Technical data:.
Format size max: 890 x 1260 mm;.
Pile height feeder max: 1600 mm;.
Pile height delivery max: 1250 mm;.
Dimensions (L x W x H): 11605 x 4550 x 2900 mm;.
Weight: ca. 61.000 kg;.
Power required: 87 kW;.
Equipment:.

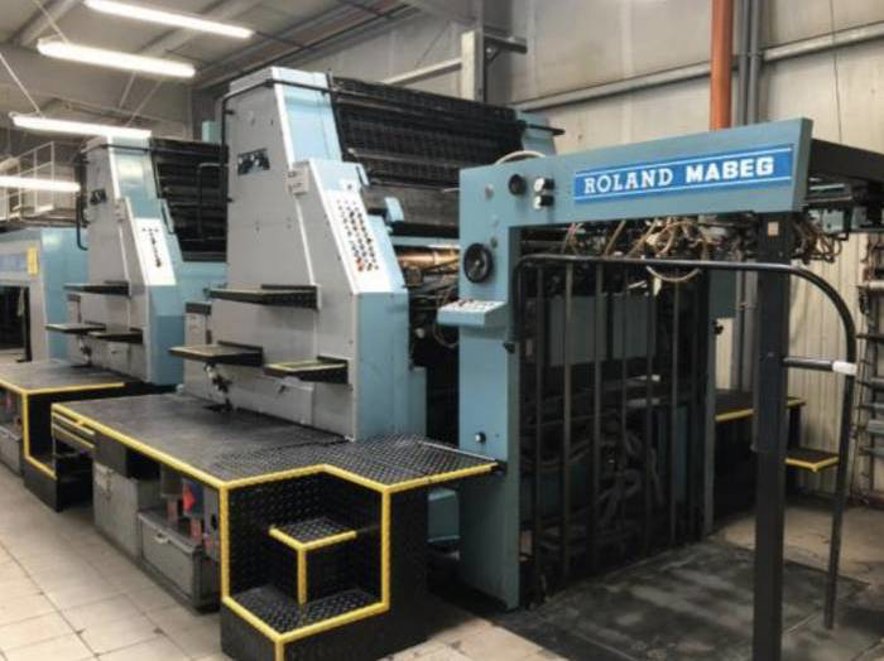

MABEG feeder;.
RCI – automatic register & ink zone control from console;.
Techcon-Densitronic (installed in 2015);.
CIP3 automatic profiling from the prepress.
Rolandmatic alcohol dampening;.
Baldwin refrigerated recirculation;.
Powder sprayer;.

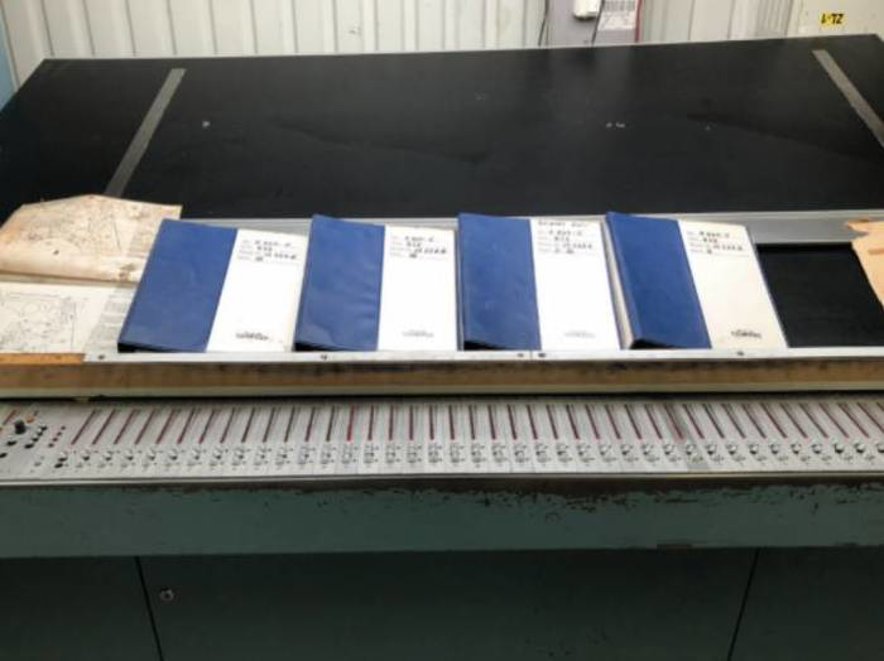

Books;.
Available immediately;.
Has been cleaned Dry Ice;.
Can be seen in production, print test possible;.
Very good technical condition;

ModelManroland-R 804-5
ManufacturerManroland
Year1983
Machine AvailabilityImmediately
Machine ConditionIn Production
PriceOn Request
LocationEurope Western

About Manroland - R 804-5

The Manroland R 804-5 is a high-performance sheet-fed offset printing press designed for commercial and packaging printing applications. This machine is part of the R series, known for its reliability, flexibility, and high-quality output. The R 804-5 is ideal for printing a wide range of materials, including paper, board, and plastics, and is suitable for various industries such as packaging, labels, and commercial printing. Its key features include high-speed printing, precise registration, and advanced automation, making it an excellent choice for printers seeking to increase productivity and reduce production costs.

Key Technical Aspects:

Dimensions and Specifications : The Manroland R 804-5 has a length of 23.62 meters (77.6 feet), a width of 2.45 meters (8 feet), and a height of 2.35 meters (7.7 feet). It weighs approximately 45 tons and has a maximum sheet size of 720 x 1,020 mm (28.3 x 40.2 inches). The machine has a capacity of up to 15,000 sheets per hour.

Paper Handling : The R 804-5 features a high-capacity feeder with a maximum pile height of 1,200 mm (47.2 inches) and a sheet thickness range of 0.04 to 1.2 mm (0.0016 to 0.047 inches). The machine is equipped with a double-sheet detection system and an anti-static device to prevent sheet sticking. The delivery system features a high-speed pile turner and a jogger for precise sheet alignment.

Printing Unit : The R 804-5 has five printing units, each with a maximum printing speed of 15,000 sheets per hour. The machine features a maximum printing area of 720 x 1,020 mm (28.3 x 40.2 inches) and a minimum printing area of 360 x 510 mm (14.2 x 20.1 inches). The printing unit uses a three-cylinder arrangement with a transfer cylinder, an impression cylinder, and a plate cylinder.

Ink System : The R 804-5 uses a high-performance ink system with a maximum ink flow rate of 1,200 kg/h (2,646 lbs/h). The machine features a ductless ink system with a single-ink train per unit and an ink temperature control system. The ink system is designed for use with conventional and UV inks.

Plate Cylinder : The plate cylinder has a diameter of 1,020 mm (40.2 inches) and a circumference of 3,200 mm (126 inches). The cylinder features a quick-change system for fast plate changing and is designed for use with processless plates.
