Manroland - R 802-5

Key Technical Aspects:

Dimensions and Specifications : The Manroland R 802-5 has a length of 23.62 ft (7.2 m), a width of 6.56 ft (2 m), and a height of 7.38 ft (2.25 m). It weighs approximately 44,000 lbs (20,000 kg) and has a maximum sheet size of 28.35 x 40.16 in (720 x 1020 mm).

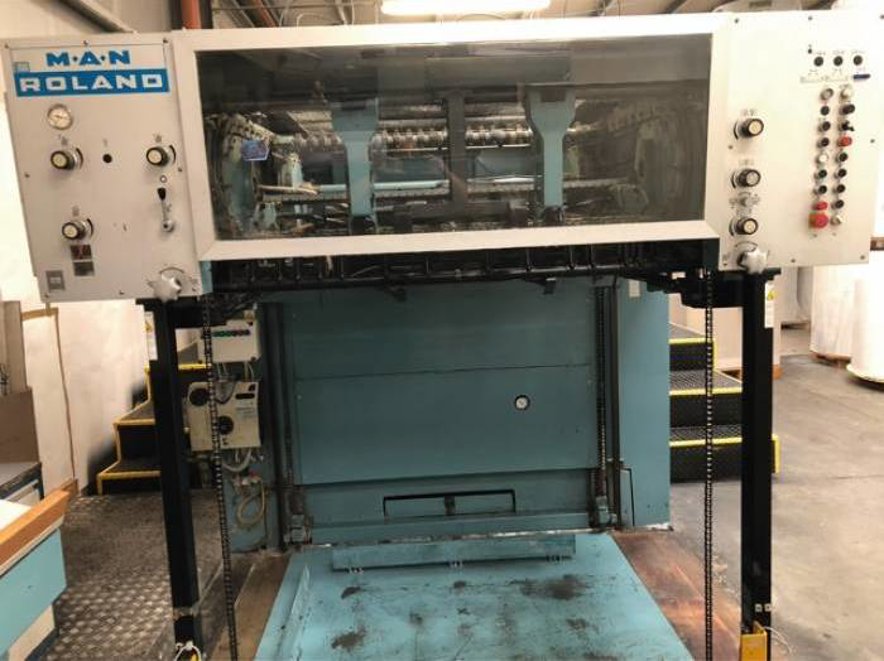

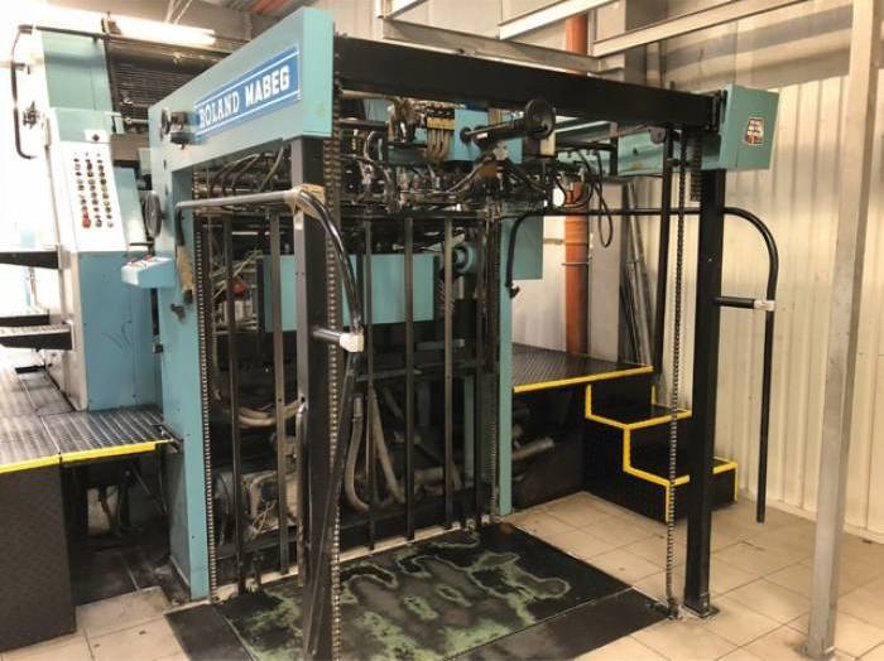

Paper Handling : The R 802-5 features a high-capacity paper handling system, including a feeder with a capacity of up to 10,000 sheets, and a delivery system with a stacking capacity of up to 5,000 sheets. The press is equipped with advanced sheet control and registration systems, ensuring precise sheet alignment and minimal waste.

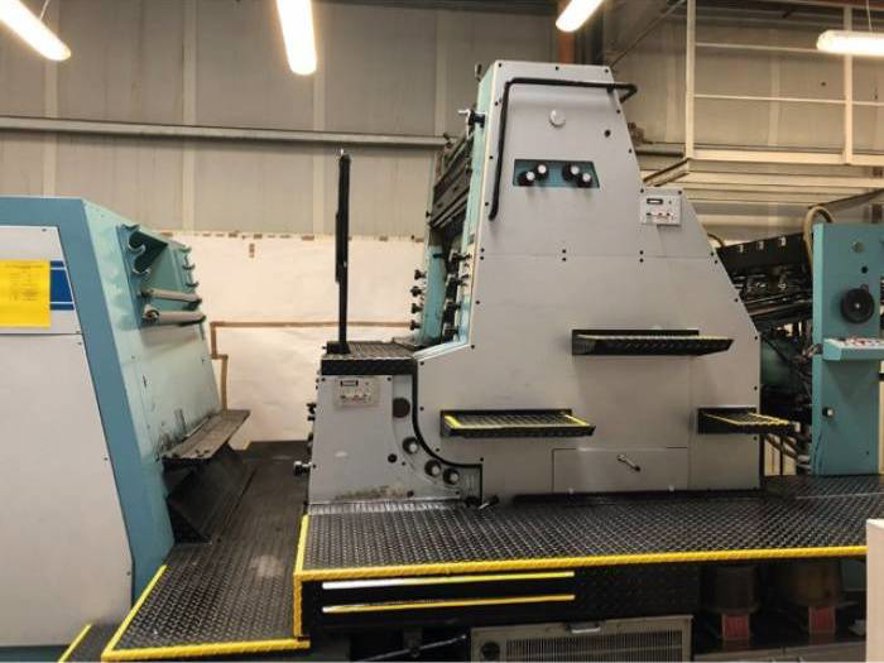

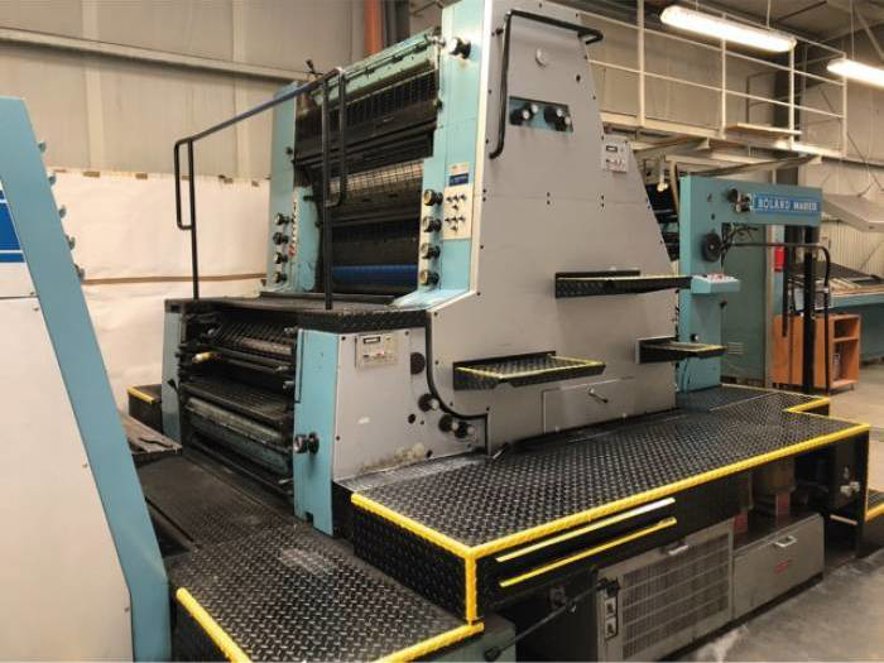

Printing Unit : The printing unit of the R 802-5 is equipped with five printing units, each with a maximum print speed of up to 18,000 sheets per hour. The press features a maximum print resolution of 300 lpi and uses advanced offset printing technology to produce high-quality output.

Ink System : The R 802-5 features a high-performance ink system, using a combination of oil-based and UV inks. The ink system has a capacity of up to 20 kg per color, and is equipped with advanced ink metering and distribution systems to ensure consistent ink transfer and minimal waste.

Plate Cylinder : The plate cylinder of the R 802-5 has a diameter of 1.57 in (40 mm) and is designed for high-speed printing applications. The plate cylinder is equipped with advanced plate clamping and registration systems, ensuring precise plate alignment and minimal plate wear.
