Machine Specification
| Features | Value |
|---|---|
| Number of colours | 10 |
| Max sheet size | 29.53 X 41.34 inch | 75.00 X 105.00 cm |
Machine Description
MANRoland R 710-P+LV -EVOLUTION .
Ten Color Perfecting with Coater (5/5 - 10/0).
Year: 2023.
Impression Count: 25 Mio..
Technical Data: Max sheet size: 750 X 1050 mm.
Min sheet size: 340 X 480 mm.
Max image area: 715 x 1030 mm.
Printing plate size: 785 x 1030 mm.
Stock thickness: 0.04 – 0,6 mm.
Press Speed: 20,000 s/h .
ManRoland EnergyLink.
SelectCompressor.
Printcom S blankets.
Lightning and overvoltage protection.

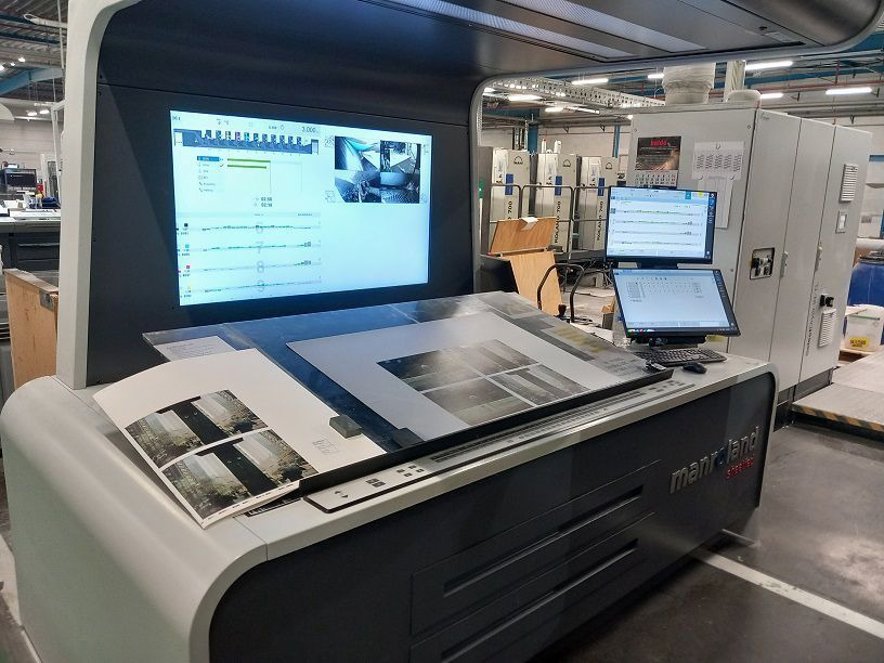

Specification: Multiview PressPilot.
Wallscreen.
InlineColorPilot color density and control system.
ColorPilot D + F – densitometry and colorimetry - PressPilot Comfort.
Inline Register for InlineColorPilot.
IntegrationPilot plus 2.0 - ProcessMonitor.
SpectroDrvie motorized measuring device for colormetric measurement.
SmartCard printing performance package.
Telepresence with integrated maintenance manager.
Roland Matic IPA free dampening rollers.
SelectCombiCenter-TECHNOTRANS beta. c Combi refrigeration Unit.
SPL Simultaneous Plate Loading.
QuickChange Job Plus.
QuickStart Plus.
QuickChange Infeed.
QuickChange Air.
QuickChange Color Plus.
Low Coverage Stabilization.
Disengagable inking units on all printing units.
Triple flow inker.
QuickChange Surface.
QuickChange Wash.
SelectCleaningSystem-All automatic Washing devices (Brush).
Coating unit Chamber blade system+2x Aniloxes 13.
QuickChange Coating.
QuickChange Clamp.
System for quick coating change in coating modules.
Fine correction of the printing pressure adjustment between the form cylinder and impression cylinder of the coating module -.
Two transfer modules .
Extended Delivery .
SelectPowderSystem-Grafix Powdermax Perfect.
Becker Variair.
SelectDryer IR/HA Drying System.
Manual nonstop device in feeder and in delivery .
Condition: Like New-with Guarantee...

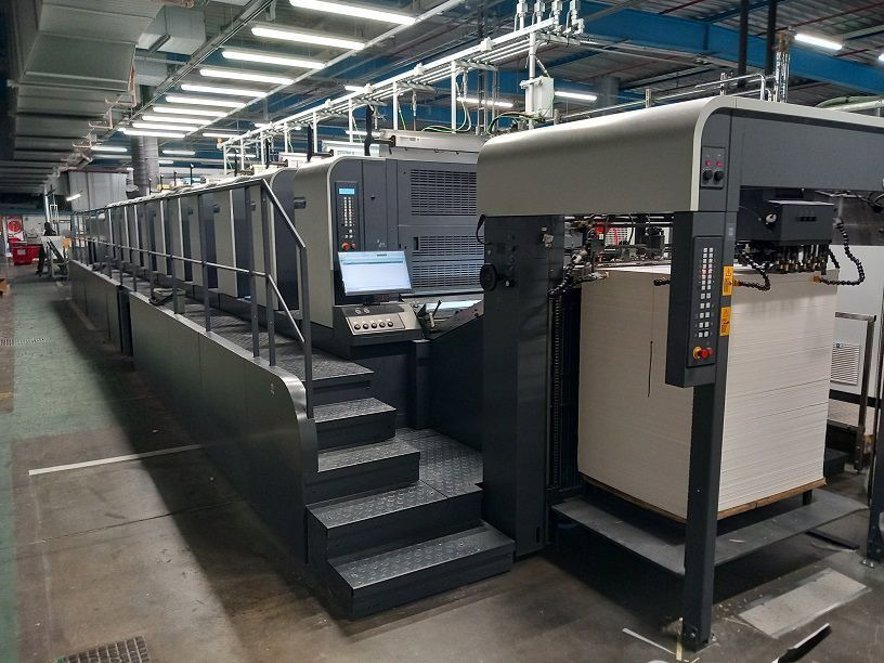

The Manroland R 710-P+LV -EVOLUTION is a high-performance sheet-fed offset printing press designed for premium commercial printing applications. As a ten-color perfecting press with coating capabilities, it delivers exceptional print quality, efficiency, and versatility for medium to large print runs. Key features include advanced automation, precise color control, and rapid job changeovers, making it ideal for producing high-end brochures, catalogs, packaging, and specialty print products. The 2023 model combines cutting-edge technology with robust construction, ensuring reliability and superior output for demanding print environments.
Key Technical Aspects:
Dimensions and Specifications : The R 710-P+LV -EVOLUTION supports a maximum sheet size of 750 x 1050 mm (29.53 x 41.34 inches) and a minimum sheet size of 340 x 480 mm. The maximum image area is 715 x 1030 mm, with a printing plate size of 785 x 1030 mm. The press operates at speeds up to 20,000 sheets per hour and accommodates stock thicknesses ranging from 0.04 to 0.6 mm. Additional features include an extended delivery system, IR/HA drying, and integrated lightning and overvoltage protection.
Paper Handling : The press is equipped with a manual nonstop device in both the feeder and delivery systems, enabling continuous operation during stock replenishment. It supports a wide range of substrates, including coated and uncoated papers, with precise handling for consistent registration and print quality.
Printing Unit : The R 710-P+LV -EVOLUTION features ten printing units (5/5 configuration) with perfecting capabilities, allowing simultaneous printing on both sides of the sheet in a single pass. It includes a coating unit with a chamber blade system and two anilox rollers (13 cm³/m²), along with disengageable inking units on all printing units for enhanced flexibility. Advanced automation includes SPL Simultaneous Plate Loading, QuickChange Job Plus, and QuickChange Infeed for rapid job transitions.
Ink System : The press utilizes a triple-flow inker for consistent ink distribution and features Roland Matic IPA-free dampening rollers for environmentally friendly operation. QuickChange Color Plus and QuickChange Wash systems enable fast color changes and efficient cleaning, while the SelectCleaningSystem provides automated washing for all printing units.
Plate Cylinder : The plate cylinder accommodates printing plates measuring 785 x 1030 mm, with fine correction capabilities for precise pressure adjustment between the form cylinder and impression cylinder. The SPL Simultaneous Plate Loading system ensures quick and accurate plate changes, enhancing productivity.
| Model | Manroland-R 710-P+LV -EVOLUTION |
|---|---|
| Manufacturer | Manroland |
| Year | 2023 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Oslo, Norway |
Special Features
- Coating
- Perfecting
