Manroland - R 706 LV

Key Technical Aspects:

Dimensions and Specifications : The Manroland R 706 LV has a length of 7,350 mm, a width of 2,350 mm, and a height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum printing speed of 18,000 sheets per hour.

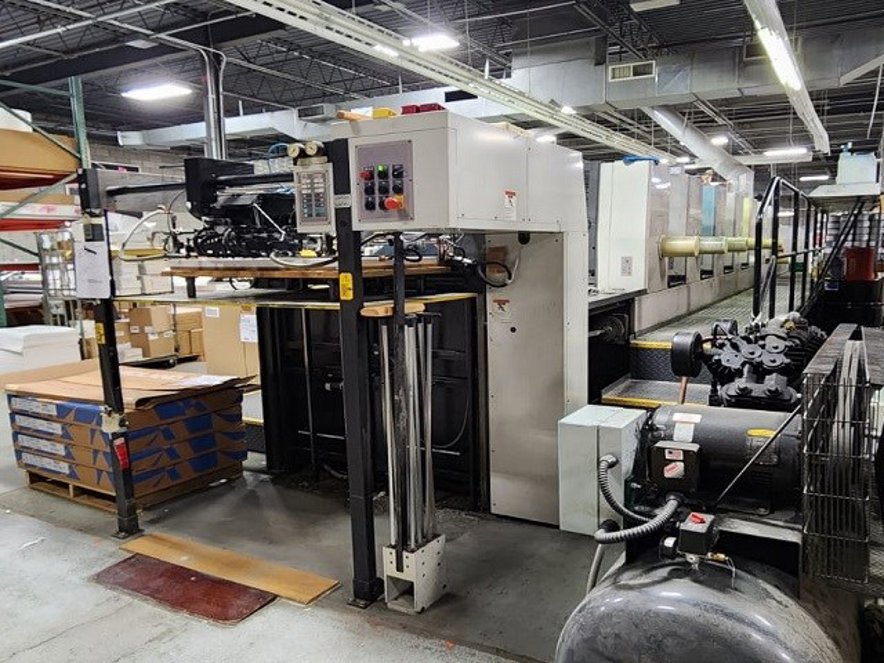

Paper Handling : The R 706 LV features a high-capacity feeder with a maximum pile height of 1,200 mm and a sheet size range of 360 x 520 mm to 750 x 1,060 mm. The machine is equipped with a double-sheet detection system and an anti-static device to ensure smooth paper flow. The delivery section features a high-speed pile turner and a jogger for precise sheet alignment.

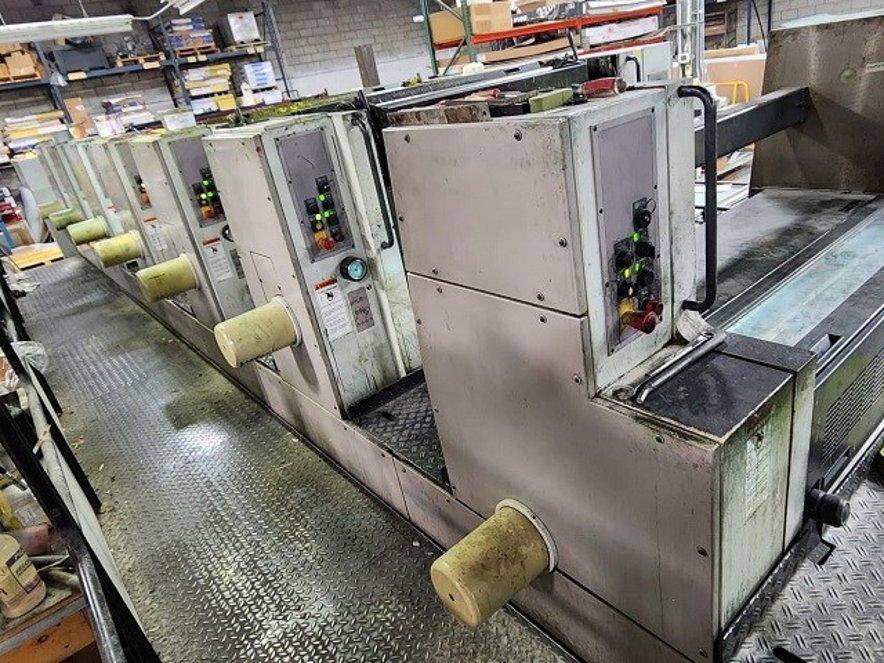

Printing Unit : The R 706 LV is equipped with six printing units, each featuring a maximum printing speed of 18,000 sheets per hour and a print resolution of 300 lpi. The machine uses a high-precision plate cylinder with a diameter of 1,066 mm and a gearless drive system for precise registration and reduced vibration.

Ink System : The R 706 LV features a high-performance ink system with a maximum ink flow rate of 1,200 kg/h. The machine uses a dry offset ink system with a ink fountain volume of 20 liters and an ink duct volume of 10 liters. The ink system is equipped with an automatic ink supply and a wash-up system for efficient ink management.

Plate Cylinder : The plate cylinder has a diameter of 1,066 mm and a gearless drive system, ensuring precise registration and reduced vibration. The plate cylinder is designed for high-speed printing and features a quick-change system for fast plate changes.
