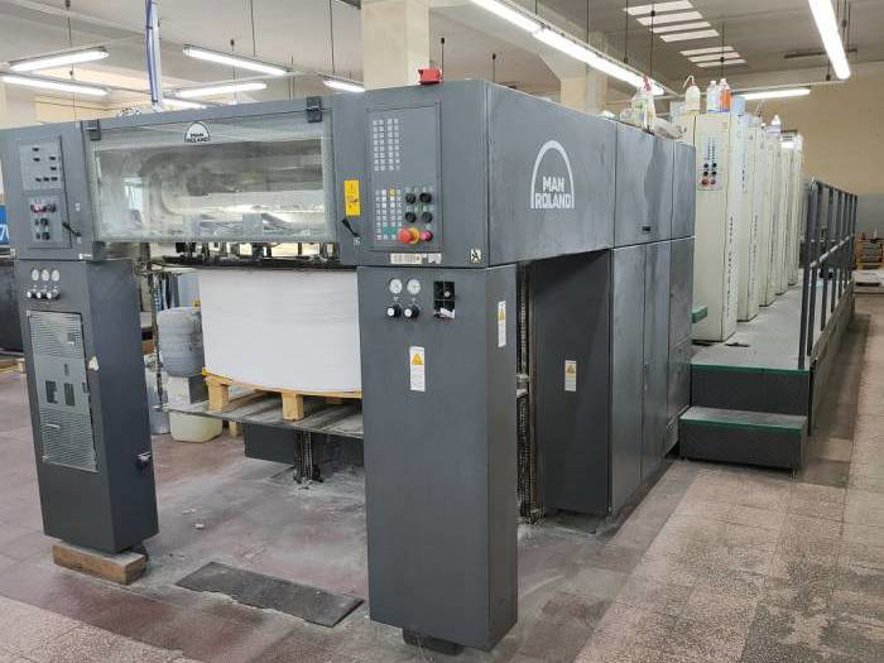

Manroland - R 705 3B

Key Technical Aspects:

Dimensions and Specifications : The Manroland R 705 3B has a length of 7,350 mm, a width of 2,350 mm, and a height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum printing speed of 15,000 sheets per hour.

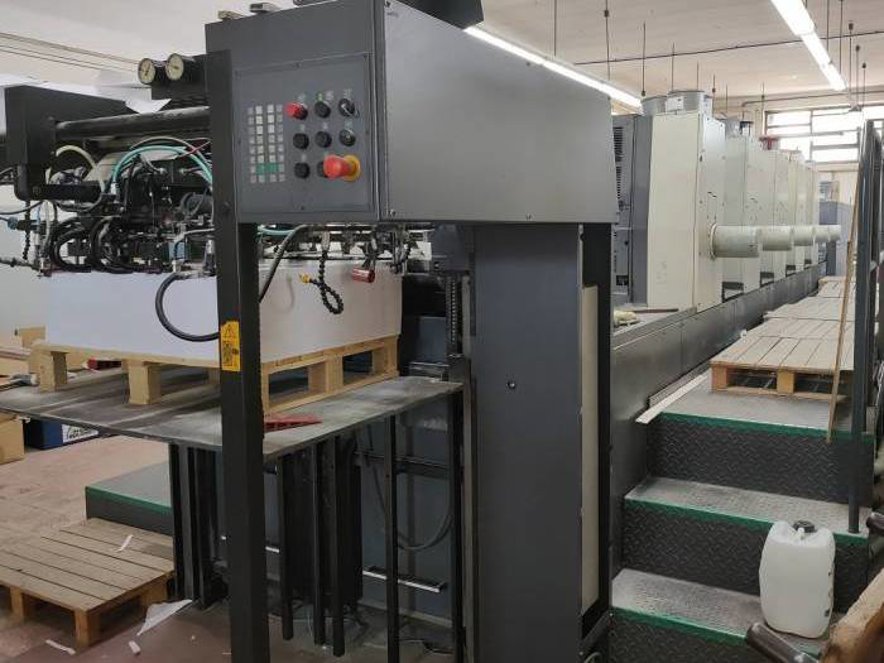

Paper Handling : The R 705 3B features a high-capacity paper handling system, including a feeder with a capacity of up to 5,000 sheets, and a delivery system with a capacity of up to 3,000 sheets. The press is equipped with a sheet size range of 360 x 520 mm to 720 x 1,020 mm, and a maximum sheet thickness of 1.2 mm.

Printing Unit : The printing unit of the R 705 3B features a maximum printing format of 720 x 1,020 mm, and a minimum printing format of 360 x 520 mm. The press has a printing speed of up to 15,000 sheets per hour, and a maximum printing resolution of 300 lpi. The printing unit utilizes a three-cylinder arrangement with a transfer cylinder, impression cylinder, and plate cylinder.

Ink System : The R 705 3B features a high-performance ink system with a maximum ink flow rate of 1,200 kg/h. The press uses a conventional dampening system with a fountain solution tank capacity of 200 liters, and an ink tank capacity of 100 kg.

Plate Cylinder : The plate cylinder of the R 705 3B has a diameter of 1,270 mm, and a circumference of 4,000 mm. The plate cylinder is designed for high-quality plate reproduction, and features a maximum plate thickness of 2.5 mm.
